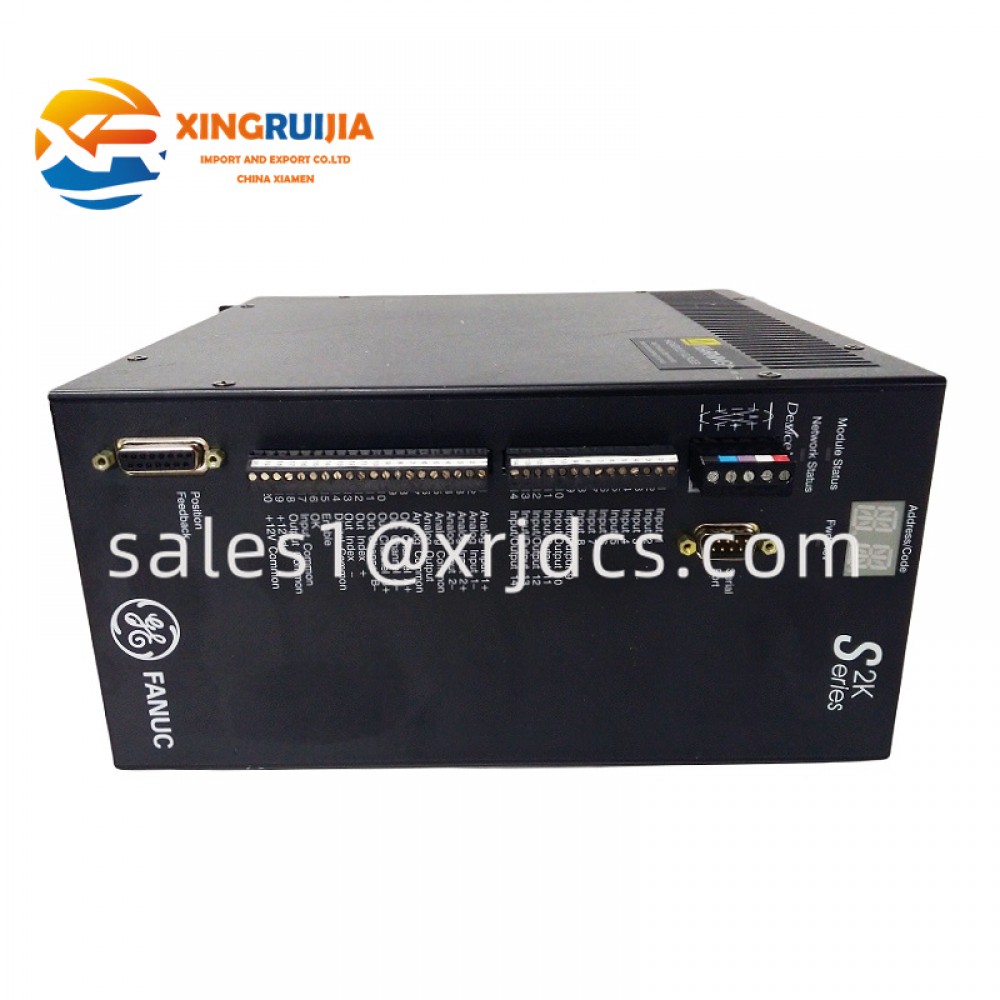

GE IC800SSI228RD2-CE

GE IC800SSI228RD2-CE is a high-performance industrial automation module designed specifically to connect servo motors with GE PLC systems. It supports high-speed data transmission and real-time control requirements, with its core function being to provide high-precision motion control—making it suitable for complex industrial scenarios such as precision manufacturing and energy management. This module belongs to GE Digital’s Genius I/O series, featuring a modular design that facilitates integration and expansion.

Parameters

• Input voltage: 24V DC (some sources mention 220-240V AC, which may be due to model differences or version updates; please refer to the latest documentation for confirmation)
• Output current: 0.5A per channel (not explicitly stated in some sources but inferred based on servo drive characteristics)
• Number of channels: 8 channels
• Communication protocols: EtherNet/IP, Modbus, Profibus, etc.
• Operating temperature range: -10°C to +60°C (some sources indicate -20°C to +60°C)
• Mounting type: DIN rail mounting
• Rated power: 228W
• Rated current: 9.5A, peak current 19A
• Position resolution: 20 bits
• Speed resolution: 0.1 rpm
• Protection class: IP65
• Dimensions: 190 mm × 70 mm × 30 mm (some sources list 100 mm × 50 mm × 20 mm; specific model confirmation is required)
• Weight: 1.5 kg (some sources state 1.2 kg)

Product Features

• High reliability: Uses industrial-grade components to support stable operation in harsh environments.
• High performance: Supports high-speed data transmission to meet the real-time control needs of servo motors.
• High precision: 20-bit position resolution and 0.1 rpm speed resolution, suitable for precision control scenarios.
• Modular design: Adopts standard connection methods, facilitating integration with other Genius I/O modules for flexible expansion.
• User-friendly: Integrates diagnostic tools to simplify setup and maintenance, reducing downtime.
• Multi-protocol compatibility: Supports communication protocols such as Ethernet, Modbus, and Profibus, enabling easy integration into industrial networks.

Structure and Composition

• Modular structure: Uses DIN rail mounting for easy installation and maintenance.
• Input/output interfaces: Supports digital input channels and analog input/output channels for connecting sensors and actuators.
• Communication interfaces: Built-in EtherNet/IP, Modbus, Profibus, and other interfaces to achieve seamless integration with PLC systems.
• Control unit: Equipped with a high-performance processor and advanced algorithms, supporting PID control and other advanced control algorithms.

Application Fields

• Manufacturing: Automated assembly lines, robot operations, CNC machine tools, etc.
• Energy and chemical industry: Oil and gas drilling systems, pump and fan control, compressor management, etc.
• Water treatment: Precise control of water pumps and filtration systems.
• Food and beverage: Compliance control of hygiene standards in processing plants.
• Aerospace and medical equipment: Applications requiring high-precision motion control.

Installation and Maintenance

Installation Notes

• Ensure compatibility with existing systems, properly ground the module, and comply with electrical safety regulations.
• Follow the installation steps in the product manual to avoid damage caused by improper operation.

Maintenance Recommendations

• Regularly update the firmware to optimize performance.
• Implement remote diagnostic functions to detect and resolve potential issues in a timely manner.
• Periodically inspect connecting components and communication interfaces to ensure long-term stable operation.

————————————————————————————————————————————————————————————————————————
