GE IL3-D001 117D7730G1

Introduction

Industrial electro-hydraulic systems often use dedicated circuit boards to amplify and condition control signals before they reach downstream equipment. GE IL3-D001 117D7730G1 is identified as an LCU CV AMP A/L PCB, with supplier references associating it with GE's electro-hydraulic control equipment.

Its board-level format makes it particularly relevant to maintenance teams working with established GE control installations.

Identification

• Brand: GE
• Board ID: IL3-D001
• GE Part Number: 117D7730G1
• Description: LCU CV Amplifier A/L PCB
• Component Category: Industrial control circuit board
• Primary Role: Control-valve signal amplification
• System Family: GE EHC-2
• Typical Service: Replacement and equipment refurbishment

A separate industrial parts source describes the part as a printed circuit card for a Load Control Unit Control Valve Amp Analog application.

Functional Role

The board forms part of the signal path associated with load and control-valve functions. Its amplifier circuitry helps provide the appropriate signal interface within the larger electro-hydraulic control architecture.

Because this is a dedicated system board, its function should be considered together with the other cards and field devices in the host equipment. A fault appearing at the valve-control level does not necessarily originate from this PCB alone.

Board Design

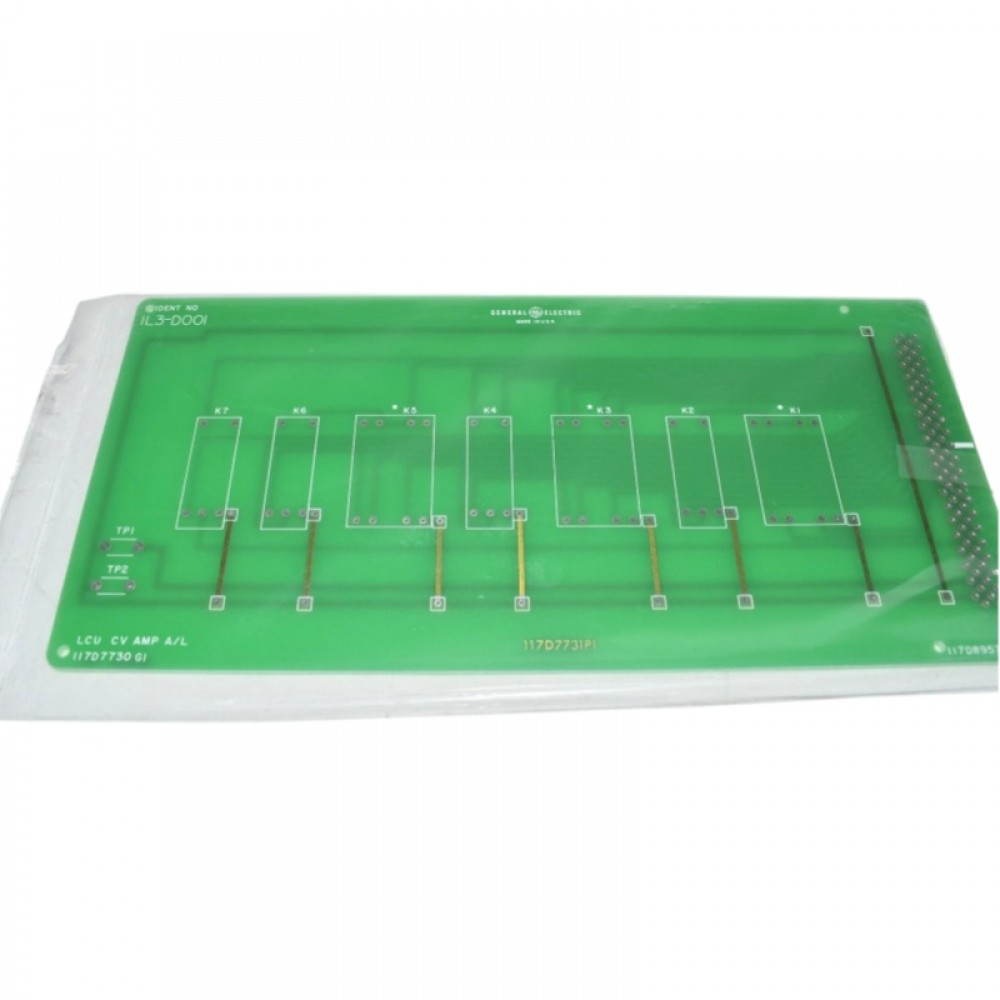

The PCB contains analog electronic circuitry, supporting components, conductive traces, and connection interfaces. The IL3-D001 designation provides an additional identification reference that can help technicians match the board to system documentation and spare-parts records.

Public listings do not provide a sufficiently verified set of detailed electrical ratings for this specific assembly. For this reason, voltage, current, and signal-range values should be confirmed from the original equipment documentation rather than assumed.

Typical Applications

The board is relevant to several industrial service environments:

Turbine control: It can form part of control architectures used with turbine-related equipment.

Electro-hydraulic systems: The board is associated with GE EHC-2 control equipment.

Power generation: Specialized control cards of this type are commonly maintained as part of larger power-generation control systems.

Legacy equipment: It is useful when an existing installation requires a direct board-level replacement.

Replacement Guidelines

Before installation, compare the original and replacement assemblies carefully. Confirm both identification numbers, connector positions, mounting arrangement, and revision information.

Also inspect the associated control wiring and valve interface. If an external electrical fault caused the original board failure, that condition should be corrected before commissioning the replacement.

Storage and Care

Keep the PCB in suitable anti-static packaging when stored. Protect it from humidity, conductive dust, mechanical impact, and extreme temperatures.

During maintenance, avoid unnecessary contact with electronic components. Clean and secure connectors where required, then perform system checks according to the equipment's established commissioning procedure.

————————————————————————————————————————————————————————————————————————
