GE IS200AEADH4ADA

The GE IS200AEADH4ADA is a high-performance industrial automation module widely used in industrial control systems. It belongs to GE's Mark VI series or IS200 series, mainly used for industrial control, process monitoring and equipment driving. This module features high reliability, modular design and flexible input/output functions, suitable for industries such as gas turbines, steam turbines, power plants, oil and natural gas.

Basic Parameters

• Model: IS200AEADH4ADA
• Manufacturer: General Electric (GE)
• Series: Mark VI control system, IS200 series, PACSystems RX3i series
• Input/output channels:
  • Analog input: 8 channels (±20 mA, ±10 V, 0-10 V)
  • Analog output: 4 channels (±20 mA, ±10 V, 0-10 V)
  • Digital input/output: supports multi-channel configuration

Electrical Parameters

• Input voltage: 24V DC (some models support 12V DC or 0-500V DC)
• Output voltage: 0-10V DC (some models support 0-5V DC)
• Load current: 10A (some models support higher current)
• Operating temperature: -40°C to +85°C (some models are -30°C to +65°C)

Physical Parameters

• Dimensions: 230 x 160 x 64 mm or 110 x 40 x 23 mm (may vary with different configurations)
• Weight: approximately 0.5-1.5 kg (varies according to configuration and protection level)
• Protection level: IP65 or IP67 (dust and water resistance level)

Product Features

High Performance and Reliability

• Uses high-quality materials and advanced design to ensure high precision and anti-interference ability.
• Supports 12-bit or 16-bit resolution analog signal processing with an error rate as low as 0.1%.

Modularity and Compatibility

• Modular design facilitates expansion and maintenance, and supports integration with GE Fanuc series PLCs and Mark VIe control systems.
• Compatible with multiple communication protocols (such as Modbus RTU/TCP, CANopen, EtherNet/IP).

Ease of Use and Safety

• Provides hardware filters and short-circuit protection functions to enhance system stability.
• Supports DIN rail mounting, simplifying the installation process.

Structure and Composition

Core Components

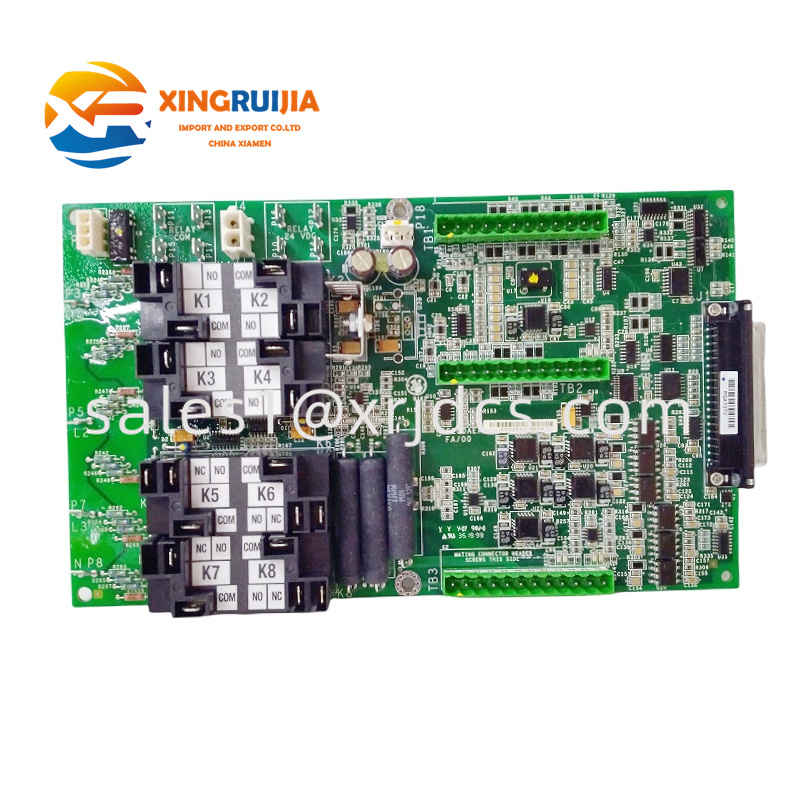

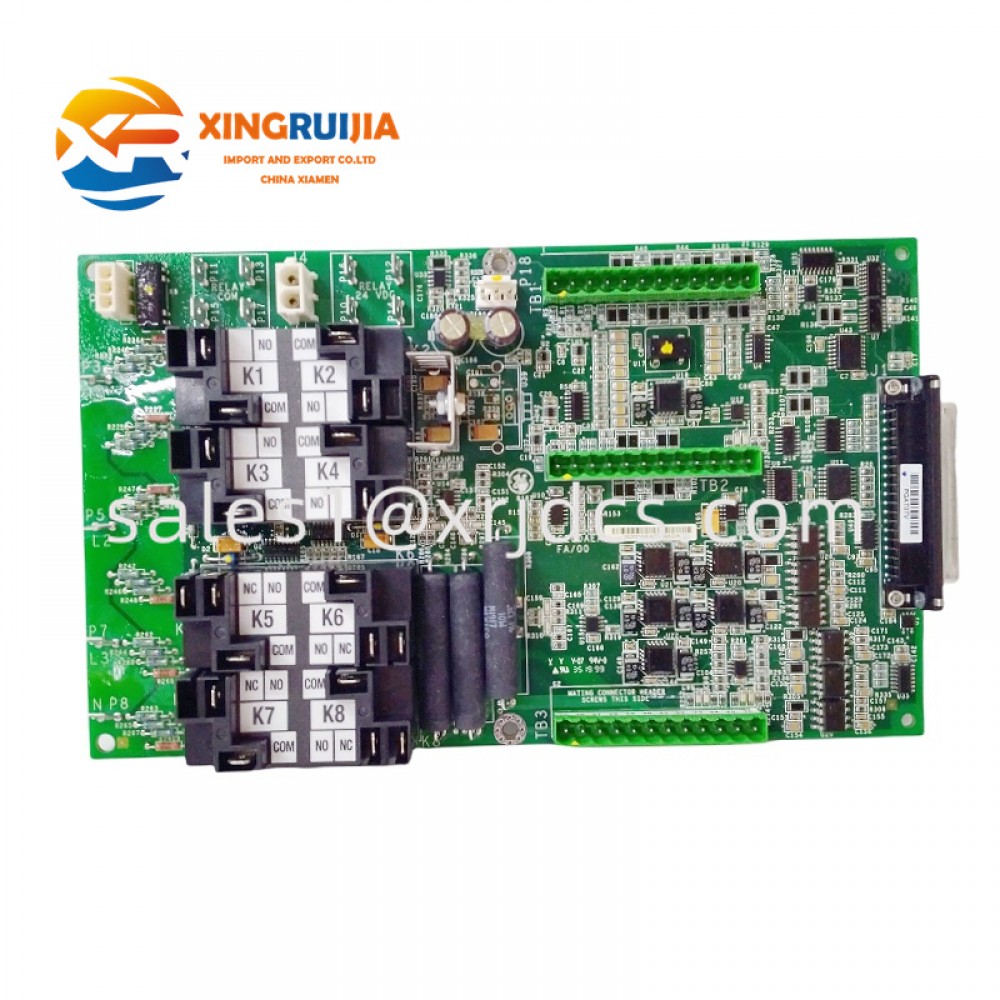

• Circuit board: contains two radiators, eight relays, high-voltage capacitors, resistors and multiple integrated circuits.
• Connectors: three vertical terminal strips and a board parallel to the long side, equipped with 12-pin connectors.
• Protection design: IP65/67 protection level, adapting to harsh industrial environments.

Functional Modules

• Analog input/output: directly connects sensors and actuators without additional instruments.
• Digital interface: supports communication protocols such as RS-232, RS-485, and Ethernet.

 Application Fields

Industrial Automation

• Motor control, valve control, heater control, lighting control.
• Automated production lines, discrete manufacturing, building automation.

Energy and Manufacturing

• Monitoring and control of gas turbines, steam turbines, and power plants.
• Compressor control in the oil and gas industry, chemical process control.

Other Fields

• Electric vehicle charging systems, electric welding equipment, frequency converters, power supply systems.
• Transportation (such as vehicle signal control), environmental protection (water resource management).

Installation and Maintenance

Installation Requirements

• Installation method: DIN rail mounting or terminal block connection, ensuring firm fixation.
• Environmental conditions: the operating temperature must be within the specified range (-40°C to +85°C), avoiding humid or dusty environments.

Maintenance

• Regular inspection: confirm that the connectors are tight, the radiators are not blocked, and avoid overheating.
• Troubleshooting: diagnose signal abnormalities through the communication interface, and replace the module if necessary.
• Warranty policy: new modules come with a 1-year warranty, and repaired parts also enjoy a 1-year warranty.

Safety Specifications

• Power off before installation and follow ESD protection measures to avoid electrostatic damage.
• Insulated tools must be worn during maintenance to prevent the risk of electric shock.

————————————————————————————————————————————————————————————————————————
