GE IS200ECTBG1ACB

Introduction

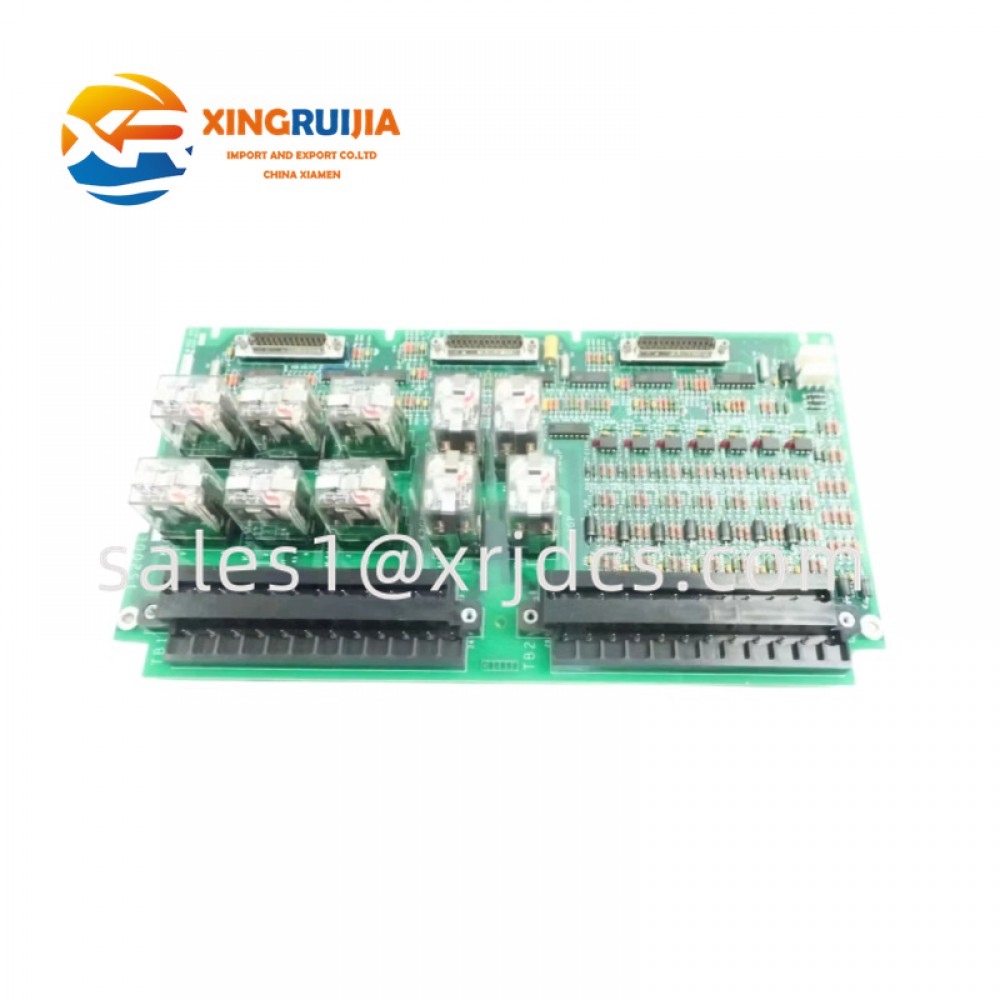

The GE IS200ECTBG1ACB Exciter Contact Terminal Board is a high-performance interface module engineered for use within the GE EX2100 Excitation Control System. Designed to manage critical excitation-related contact inputs and outputs, this board serves as a reliable communication bridge between field devices and the excitation control architecture. Its robust design, redundant control support, and advanced signal monitoring capabilities make it an essential component for power generation facilities and turbine control applications.

---

Main Functions

The IS200ECTBG1ACB performs several important tasks within an excitation system:

• Monitors auxiliary contact signals from field devices.
• Processes excitation control commands.
• Provides lockout and trip signaling functions.
• Supports generator protection logic.
• Interfaces with excitation controllers and I/O modules.
• Enables reliable operation in redundant control configurations.

---

Technical Specifications

Model: IS200ECTBG1ACB
Manufacturer: General Electric (GE)
Product Type: Exciter Contact Terminal Board
Series: EX2100 Excitation Control System
Control Configuration: Redundant Control Systems (ECTBG1 Version)
Operating Temperature: -30°C to +65°C
Input Voltage: 70 VDC Contact Monitoring
Auxiliary Inputs: 6 Monitored Contact Inputs
Trip Outputs: 2 Dedicated Trip Contact Outputs
Relay Outputs: 4 General-Purpose Form-C Relay Outputs
Dimensions: Approximately 35 cm × 17 cm × 10 cm
Weight: Approximately 0.5 kg
Country of Manufacture: United States (USA)

---

Structural Design and Components

The board is designed to deliver stable operation in demanding industrial environments. Its construction typically includes:

• High-quality terminal connections
• Industrial-grade PCB assembly
• Signal conditioning circuits
• Contact monitoring interfaces
• Relay output circuitry
• Isolation and protection components
• Connector interfaces for controller communication

The modular design simplifies installation, troubleshooting, and replacement during maintenance procedures.

---

Key Advantages

Reliable Redundant Operation

The ECTBG1ACB version is specifically developed for redundant control architectures, allowing continuous operation even during controller transitions or fault conditions.

Enhanced System Protection

With dedicated trip outputs and lockout control capabilities, the board contributes to generator and excitation system protection by supporting rapid fault response mechanisms.

Flexible I/O Management

The module supports multiple monitored inputs and relay outputs, making it suitable for a wide range of excitation control requirements.

Industrial Durability

Designed for harsh power plant environments, the board maintains stable performance across a broad temperature range and under continuous operating conditions.

---

Typical Applications

The GE IS200ECTBG1ACB is commonly used in:

• Gas turbine generator control systems
• Steam turbine power plants
• Hydroelectric generation facilities
• Combined-cycle power stations
• Industrial power generation systems
• Excitation and voltage regulation systems
• Generator protection and lockout circuits
• Plant modernization and retrofit projects

---

Installation Considerations

For optimal performance, the following installation practices are recommended:

• Verify compatibility with the EX2100 excitation platform.
• Ensure proper grounding and shielding of control wiring.
• Inspect all terminal connections before energizing the system.
• Confirm correct wiring of auxiliary contacts and relay outputs.
• Follow GE commissioning procedures during startup.
• Perform functional testing after installation.

---

Maintenance Recommendations

Regular preventive maintenance helps maximize system reliability and service life.

Recommended actions include:

• Inspecting terminal connections for looseness or corrosion.
• Verifying proper operation of relay outputs.
• Checking contact input status during scheduled shutdowns.
• Cleaning accumulated dust and contaminants.
• Monitoring excitation system diagnostics.
• Replacing damaged connectors or wiring when necessary.

Routine inspections can reduce unexpected downtime and improve overall system availability.

---

Operational Benefits

By integrating the IS200ECTBG1ACB into an EX2100 excitation system, operators can achieve:

• Improved generator protection
• Higher system availability
• Increased operational safety
• Reliable excitation control
• Faster fault detection and response
• Simplified maintenance procedures
• Enhanced plant efficiency

These benefits contribute to stable power generation and long-term equipment reliability.

---

Conclusion

The GE IS200ECTBG1ACB Exciter Contact Terminal Board is a critical component of the EX2100 excitation platform, providing dependable contact monitoring, relay control, and protection functions for generator excitation systems. Its support for redundant architectures, comprehensive I/O capabilities, and rugged industrial design make it an ideal solution for modern power generation and turbine control applications.
