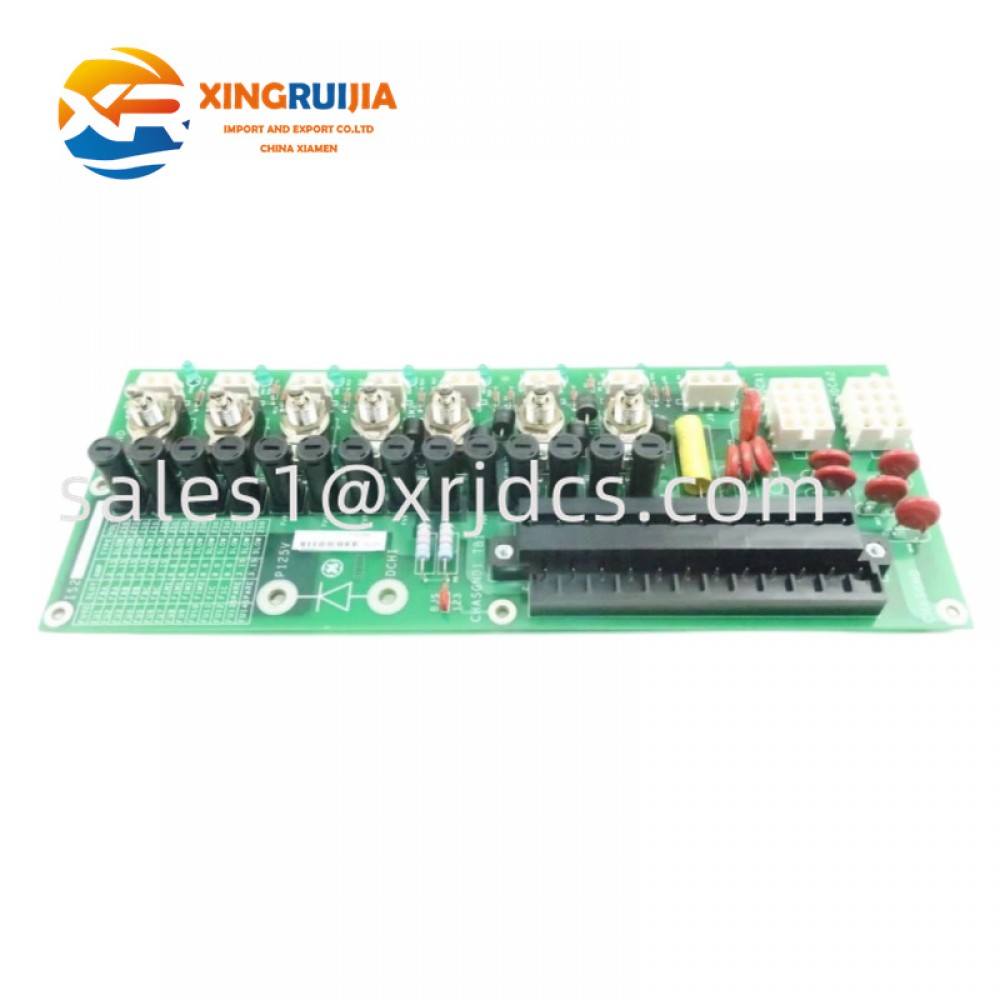

GE IS200EPDMG1A

Product Overview

The GE IS200EPDMG1A is an Exciter Power Distribution Module (EPDM) designed for the GE EX2100 Excitation Control system. It is a power distribution board responsible for supplying and distributing power to important exciter control, I/O, and protection hardware. The module is mounted on the IS200EPBP Exciter Power Backplane and forms an important part of the EX2100 power architecture.

The IS200EPDMG1A is particularly relevant to generator excitation systems where stable power distribution is essential for maintaining reliable control and protection functions.

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	IS200EPDMG1A
Product Series	EX2100 Excitation Control
Product Type	Exciter Power Distribution Module
Board Type	Power Distribution / Power Supply Board
DC Source	125 VDC
AC Inputs	One or two 115 VAC inputs
DC Output Architecture	P125V and N125V
Nominal Voltage to Ground	+62.5 V / -62.5 V
Mounting Location	IS200EPBP Exciter Power Backplane
Main Function	Power distribution to exciter control, I/O and protection boards
PCB Technology	Surface-mount technology

The published specifications identify the station-battery input as 125 VDC, while one or two AC inputs can be used as backup power sources. The resulting DC source is distributed through the EPDM architecture.

Power Distribution Architecture

The IS200EPDMG1A does not function as a conventional PLC CPU or signal-processing board. Its primary responsibility is power distribution within the EX2100 excitation system.

The module receives 125 VDC from the station battery and can also accept one or two AC power sources. The AC inputs are filtered and converted through external DACA AC-to-DC converter modules. The resulting DC sources are combined through the system's diode arrangement to establish the P125V and N125V supply lines.

The P125V and N125V lines are center-grounded, producing nominal potentials of approximately +62.5 V and -62.5 V relative to ground. This arrangement provides the appropriate DC source for the downstream excitation-system power architecture.

Board Features and System Connections

One useful characteristic of the IS200EPDMG1A is its ability to distribute power individually to multiple EX2100 boards. The available documentation indicates that individual power outputs are fused and equipped with on/off switching and green LED indication for power availability.

The EPDM can supply power to several important components within the excitation system, including:

• IS200EGPA Exciter Gate Pulse Amplifier Boards
• IS200EXTB Exciter Terminal Board
• IS200EPSM Exciter Power Supply Modules
• Exciter control boards
• Protection boards
• I/O-related assemblies

The board uses dedicated connectors to interface with the external DACA modules and the EPBP backplane, allowing the excitation system to manage its incoming and distributed power in an organized manner.

Typical Applications

The GE IS200EPDMG1A is primarily associated with GE EX2100 excitation control systems used in generator applications. The EX2100 platform is designed to manage generator excitation and related control functions in power-generation equipment.

Typical application environments include:

• Gas turbine generator systems
• Steam turbine generator systems
• Power-generation plants
• Generator excitation systems
• Synchronous generator control
• Industrial power systems
• Utility electrical-generation equipment
• Legacy GE excitation-control installations

Because the EPDM provides power to multiple control and protection components, its condition can have a direct impact on the availability of the overall excitation system.

Installation and Maintenance

Before replacing an IS200EPDMG1A, technicians should verify the complete part number, board revision, EPBP backplane arrangement, DACA configuration, incoming AC/DC power sources, and connected excitation modules.

Particular attention should be paid to the board's power distribution circuits, fuses, switches, connectors, and LED indicators. Signs of overheating, discoloration, damaged components, loose connections, or deteriorated connectors should be investigated during inspection.

Because the module handles potentially hazardous AC and DC power, installation and servicing should only be performed by qualified personnel following the site's approved electrical isolation and safety procedures.

When sourcing a replacement, it is important to distinguish the IS200EPDMG1A from similar-looking EPDM variants. Matching the exact board identification and revision helps ensure compatibility with the existing GE EX2100 excitation control system and reduces the risk of incorrect power-distribution configuration.

————————————————————————————————————————————————————————————————————————
