1. Product Overview

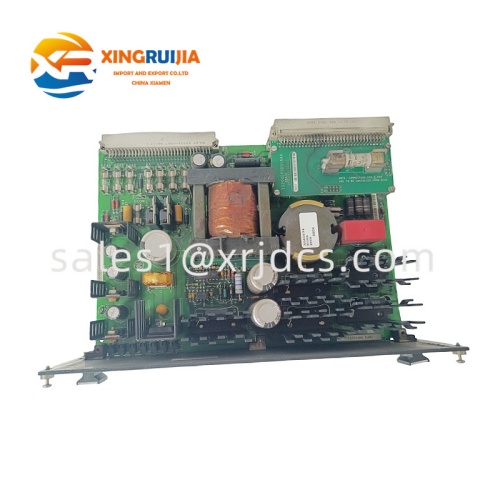

The GE IS200EPSMG2AEC is an Exciter Power Supply Module (EPSM) developed for compatible GE EX2100 excitation regulator control systems. It supplies regulated power to control electronics and supporting circuits within the excitation cabinet. Reliable power conversion is essential because the excitation controller depends on stable electrical supplies to perform monitoring, regulation, and protection-related tasks.

The module belongs to the EPSMG2 product group. Its design incorporates an Exciter Regulator Power Supply Daughterboard (EPSD), which supports higher-voltage DC-link input arrangements through an additional conversion stage and input protection. The resulting power supply architecture provides multiple output voltages for different circuits in the excitation system. <Cite refs={["turn138257search0","turn138257search5"]}/>

For power-generation facilities maintaining established GE excitation equipment, the IS200EPSMG2AEC can be an important spare part for planned maintenance or fault replacement. However, correct identification is essential. Buyers should verify the complete model number, board revision, and compatible backplane before installation.

2. Technical Specifications

The module is documented with outputs including +5 VDC, ±15 VDC, +24 VDC, -24 VDC, ±55 VDC, +70 VDC, and a 20 VAC high-frequency output for specified circuits. Exact output availability and ratings depend on the applicable configuration. Consult the relevant GE manual before making electrical connections. <Cite refs={["turn138257search0","turn138257search2"]}/>

3. Main Functions and Design Features

Regulated Power Conversion

The IS200EPSMG2AEC converts DC-link input power into intermediate and regulated output supplies. Its buck-regulator stage produces an intermediate DC voltage, while an isolated push-pull inverter generates the required outputs.

This arrangement allows different control circuits to receive the power they need. Stable output supplies help support consistent operation of the excitation system's electronic assemblies.

Multiple Power Outputs

Excitation equipment contains circuits with different voltage requirements. The module supplies several power rails for compatible logic, analog, relay, and auxiliary functions.

For example, +5 VDC supports specified logic circuits, while positive and negative voltage rails serve other control and signal-related circuits. Additional outputs support contact-wetting and other designated excitation-system functions.

The exact purpose of each output should be checked against the original wiring diagrams and terminal assignments.

Input Protection

The EPSD daughterboard provides a higher-voltage input arrangement and incorporates an additional input fuse. This design helps protect the power-conversion circuit when used within its specified operating conditions.

A blown fuse should not automatically be treated as the root cause of a fault. Maintenance personnel should investigate possible input abnormalities, short circuits, overloads, and downstream component failures before replacing protective components.

Status Monitoring and Test Points

The module includes status LEDs and designated test points to help qualified technicians inspect the output supplies. These features can assist with checking whether expected voltage rails are present and identifying possible power-related faults.

Testing must follow the manufacturer's procedures. Personnel should use suitable instruments and observe the safety requirements associated with the DC-link circuit.

4. Industrial Applications

Generator excitation systems: The module supports power distribution within compatible excitation regulator assemblies used to control synchronous generator field excitation.

Power generation plants: Reliable control power is important for generator regulation and the operation of supporting electronic circuits. Maintaining suitable spare modules can help reduce maintenance delays.

Gas and steam turbine facilities: Plants operating compatible GE excitation systems may require this module during planned servicing, troubleshooting, or component replacement.

Excitation cabinet maintenance: When a supply fault affects associated electronics, technicians can inspect the module alongside its input source, fuses, connectors, and connected loads.

Legacy control-system support: Industrial facilities may continue operating established GE control platforms for many years. Sourcing the correct spare part helps maintain the existing architecture while supporting planned maintenance activities.

These applications depend on the installed equipment configuration. The IS200EPSMG2AEC should not be assumed to fit every GE Mark VI or EX2100 system solely because the product belongs to the same broad equipment family.

5. Installation and Maintenance Guidance

Before ordering, compare the full model number on the installed board with the replacement identification. Check the associated daughterboard, backplane type, connector arrangement, and equipment documentation. Similar model numbers may represent different hardware configurations.

During installation, qualified personnel should follow the plant's electrical isolation procedures and the manufacturer's handling instructions. The DC-link input can present hazardous voltages, so the circuit must be made safe and verified before work begins.

After installation, inspect the connections and confirm that the module is seated correctly. Follow the specified procedure to verify output voltages, status indicators, and the operation of connected control circuits. Do not return the equipment to service until the required checks have been completed.

For troubleshooting, examine the incoming supply, protective fuses, output rails, connectors, and downstream loads. Recording diagnostic findings can help identify recurring problems and improve future maintenance planning.

6. Why Source the GE IS200EPSMG2AEC from Our Company?

Our company supplies industrial automation components and spare parts for customers maintaining established control systems. We understand that the availability of a suitable excitation power supply can be important when equipment downtime affects power-generation operations.

We offer several service advantages:

• Industrial control experience: Support for identifying suitable PLC, DCS, excitation, and other automation components.

• Broad sourcing capabilities: Assistance with standard parts and hard-to-find or discontinued models.

• Competitive pricing: Cost-conscious sourcing options for industrial maintenance projects.

• Quality assurance: Product identification and condition checks appropriate to the supplied item.

• 15-day replacement support: Free replacement for qualifying quality problems within 15 days, subject to agreed terms and verification.

Availability, product condition, delivery time, and warranty terms should be confirmed for each order.
