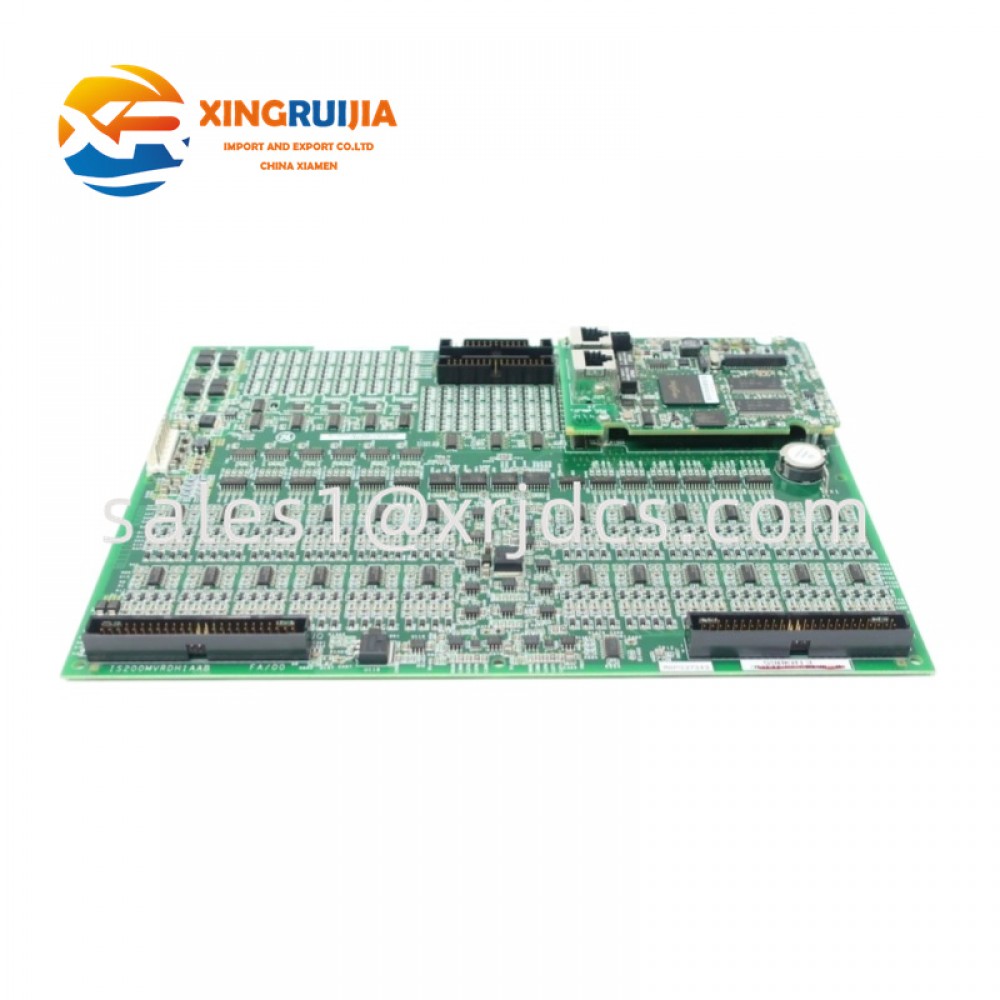

GE IS200MVRDH1AAB

Overview

The GE IS200MVRDH1AAB is a high-reliability signal processing module designed for turbine control systems within the Speedtronic Mark VIe platform by General Electric.

This module plays a critical role in converting, conditioning, and transmitting field signals between sensors and the main controller, ensuring precise and stable operation of gas, steam, and industrial turbines. It is widely recognized for its robust design, fast signal response, and seamless integration into GE control architectures.

---

Structure and System Integration

The IS200MVRDH1AAB is engineered as a compact printed circuit board module that integrates directly into Mark VIe racks. Its architecture includes:

• High-performance signal conditioning circuits
• Embedded digital processing units
• Dual communication interfaces for system networking
• Backplane connectors for rapid installation
• Industrial-grade conformal coating for environmental protection

The module interacts with sensors (temperature, vibration, pressure) and converts analog signals into digital data for the central controller, forming a closed-loop control system essential for turbine stability.

---

Key Features

• Advanced Signal Conditioning: Filters, amplifies, and stabilizes input signals with high precision
• Sub-Millisecond Processing Speed: Enables rapid response for critical turbine protection
• Hot-Swappable Design: Allows replacement without shutting down the system
• High Noise Immunity: Built-in isolation protects against electromagnetic interference
• Seamless Mark VIe Compatibility: Native integration without additional gateways
• Redundant System Support: Suitable for fault-tolerant turbine control architectures

---

Technical Parameters

• Model: IS200MVRDH1AAB
• Product Type: Signal Processing Module
• System Platform: Mark VI / Mark VIe Speedtronic
• Power Supply: 24 VDC (±10%)
• Operating Temperature: -20°C to +70°C
• Signal Channels:
  • Analog Inputs: up to 16 channels (4–20 mA typical)
  • Digital Outputs: up to 8 channels
• Communication: Ethernet, Modbus TCP, Profibus (varies by configuration)
• Installation: Rack-mounted (VME or compatible base)
• Dimensions: Approx. 125 × 225 × 35 mm
• Weight: ~0.45 kg

---

Functional Capabilities

The module serves as an intermediary between field instrumentation and the turbine control processor:

1. Signal Acquisition – Receives electrical signals from sensors
2. Signal Processing – Performs filtering, scaling, and conversion
3. Data Transmission – Sends processed data to the main controller
4. Control Feedback – Outputs control signals to actuators (valves, motors)

This closed-loop operation ensures stable turbine speed, temperature, and pressure control under varying load conditions.

---

Application Fields

The IS200MVRDH1AAB is widely deployed in:

• Gas and steam turbine control systems
• Power generation plants (combined-cycle, thermal, nuclear auxiliary systems)
• Oil & gas processing facilities (compressors, LNG plants)
• Heavy industrial automation systems
• Offshore and harsh environment installations

---

Installation & Maintenance

Installation Guidelines:

• Mount in a standard Mark VIe control rack
• Ensure proper grounding and shielding for signal integrity
• Maintain adequate ventilation for thermal dissipation

Maintenance Recommendations:

• Perform periodic diagnostics via GE ToolboxST software
• Inspect terminal connections and connectors regularly
• Clean dust and ensure airflow within the cabinet
• Update firmware during scheduled maintenance cycles

---

Additional Advantages

• Reduces turbine downtime through predictive monitoring
• Enhances operational safety with real-time fault detection
• Minimizes integration costs due to native GE compatibility
• Designed for long lifecycle and industrial durability
