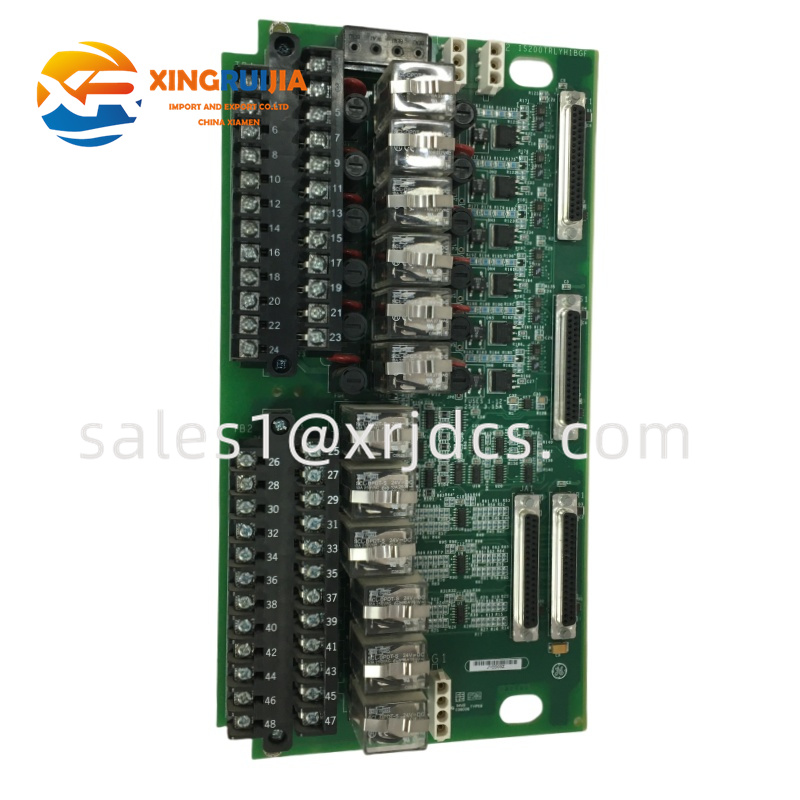

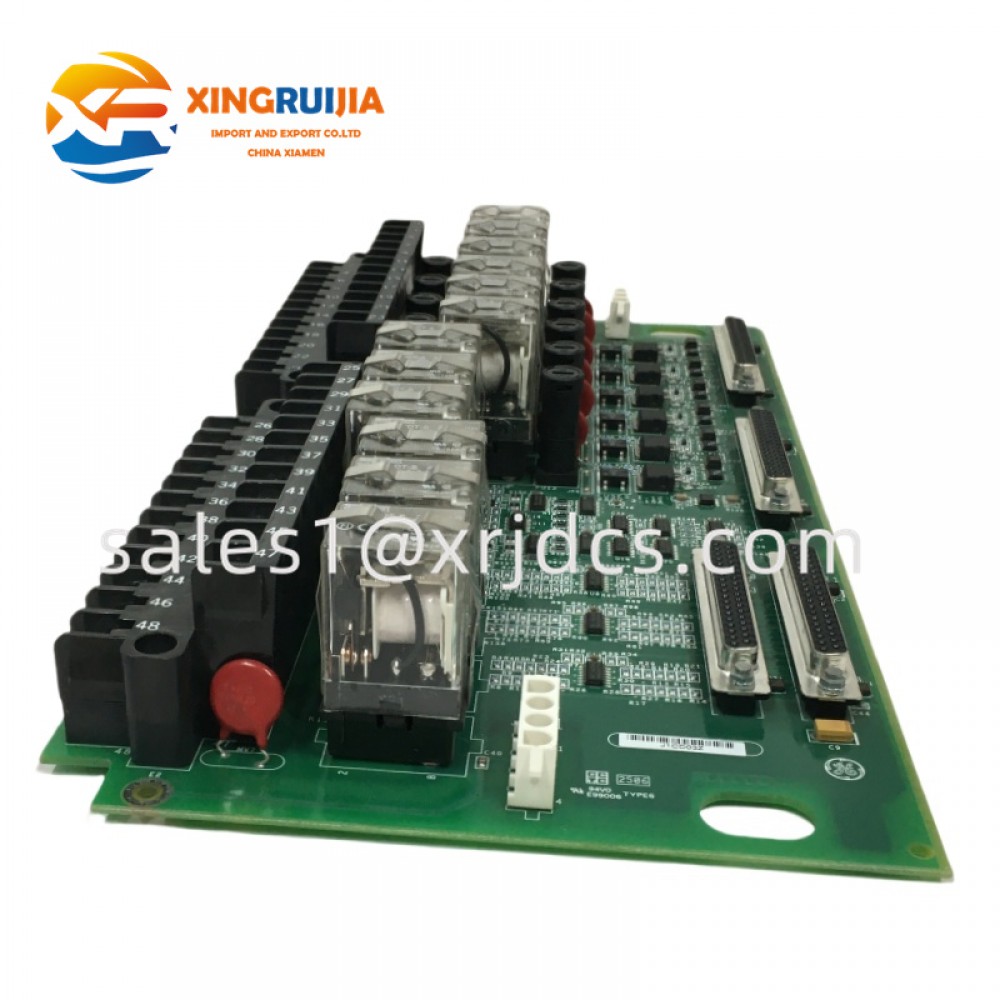

GE IS200TRLYH1BGF Relay Output Module

 Overview

The GE IS200TRLYH1BGF is a critical component of the GE Mark VI series gas turbine control system, primarily used to connect and control external devices such as valves, pumps, and sensors. It employs relays for external device control, offering high reliability and stability. This module is suitable for various industrial environments, including power generation, petrochemical, energy, and other sectors.

Technical Specifications

Parameter	Specification
Model	IS200TRLYH1BGF
Type	Relay output module
Operating Voltage	24V DC (some models may support 120V AC)
Rated Current	Up to 2A per relay
Temperature Range	-40°C to +85°C (some models: -20°C to +60°C)
Connection Type	Terminal block connector for easy wiring
Dimensions	Compact design, saves installation space
Protection Rating	IP67 (some models: IP20)
Weight	0.5 kg to 1.3 kg (varies by configuration)

Key Features

• High Reliability: Uses premium components and strict manufacturing processes for long-term stability.

• Modular Design: Easy installation, maintenance, and expansion.

• Strong Compatibility: Seamless integration with GE gas turbine control systems (e.g., Mark VIe).

• User-Friendly: Supports multiple programming languages and tools for simplified configuration.

• Flexible & Scalable: Adaptable to diverse application needs.

• Safety Protection: Comprehensive safeguards against electrical hazards.

 Structure & Composition

• Hardware: Includes relay contacts, integrated circuits, MOV (metal oxide varistors), and capacitors.

• Modular Design: Facilitates maintenance and expansion.

• Mounting: Supports DIN rail installation.

Primary Applications

• Industrial Automation: Controls machinery in manufacturing, packaging, etc.

• Process Control: Manages complex workflows in chemical plants, refineries.

• Energy Sector: Used in power plants, grid monitoring.

• Building Automation: HVAC, lighting control.

• Environmental & Water Treatment: Monitors parameters and water quality.

• Gas Turbine Control: Core component of GE gas turbine systems.

————————————————————————————————————————————————————————————————————————

Company Culture

Customer First: We always prioritize customer satisfaction and are committed to delivering exceptional service.

Integrity in Business: We uphold the highest standards of honesty and build long-term, stable partnerships with our clients.

Innovation & Growth: We continuously adopt advanced technologies to enhance the quality of our products and services.

Team Collaboration: We foster a culture of teamwork, encouraging employees to work together toward achieving our shared goals.

Contact Us

·Manager: Jinny                                         ·E-mail: sales5@xrjdcs.com

·Tel: + 86-18250705533 （WhatsApp）   ·Wechat: + 86-18250705533

————————————————————————————————————————————————————————————————————————

Installation & Maintenance

• Installation: DIN rail mounting for easy system integration.

• Maintenance: Modular design minimizes downtime.

• Safety: Follow operational guidelines to prevent accidents.

FAQs GE IS200TRLYH1BGF

Q1: What’s the difference between GE IS200TRLYH1BGF and IS200TRLYH1BHH?
A: Both are relay modules with nearly identical functionality; differences lie in model labeling.

Q2: Does this module support remote monitoring?
A: No, but it can exchange data via communication interfaces (e.g., RS-485).

Q3: What’s the operating temperature range?
A: -40°C to +85°C (some models: -20°C to +60°C).

Q4: Does it have overvoltage protection?
A: Yes, it safeguards devices like motor controllers and power converters.

Q5: What’s the warranty period?
A: 12 months.
