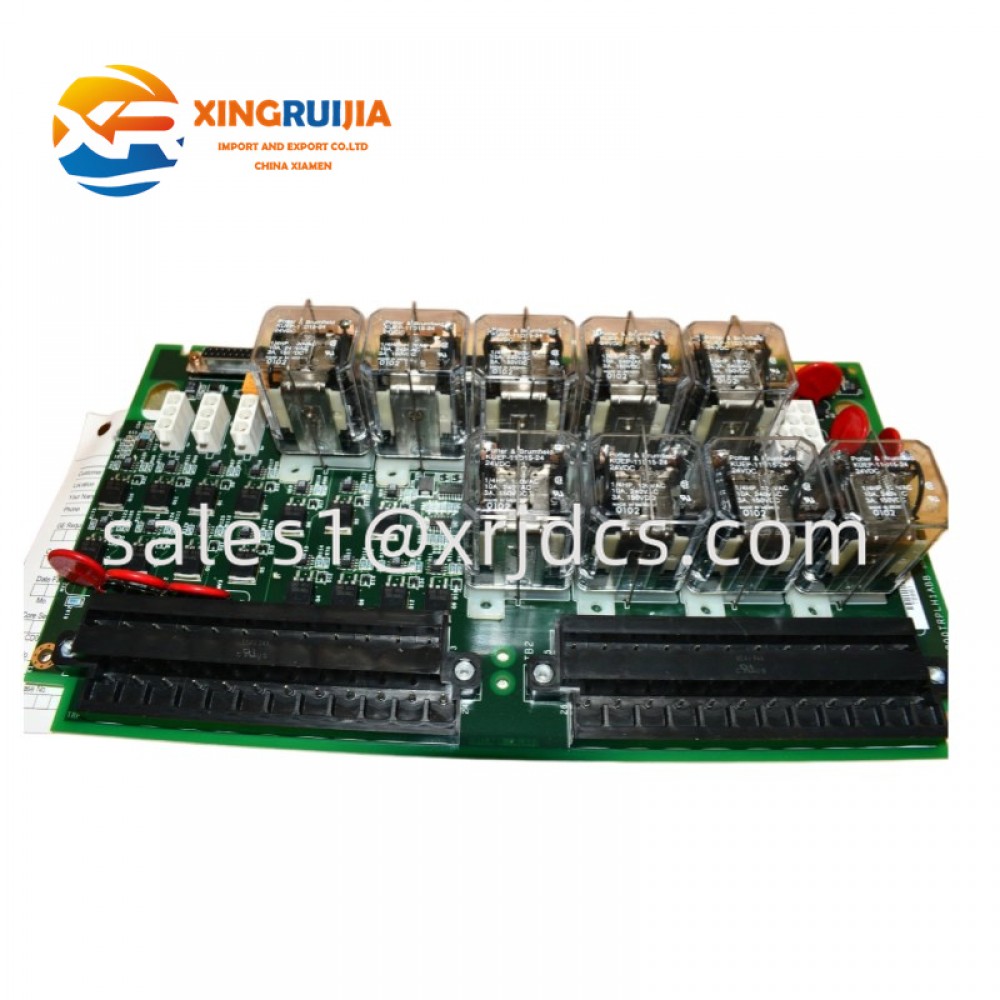

GE IS200TRPLH1A

Product Overview

The GE IS200TRPLH1A is a Turbine Primary Trip Terminal Board developed for the GE Mark VI turbine control system. It is specifically associated with primary overspeed protection for large steam turbines. The board is commonly identified by the functional acronym TRPL.

The TRPL board is part of the turbine protection interface and works with the VTUR turbine I/O board in Mark VI systems. In compatible Mark VIe configurations, the related protection architecture uses PTUR I/O Packs.

Key Technical Information

The main product characteristics include:

• Manufacturer: General Electric
• Part Number: IS200TRPLH1A
• Series: Mark VI
• Functional Acronym: TRPL
• Product Type: Turbine Primary Trip Terminal Board
• Primary Application: Large steam turbine protection
• Control Interface: VTUR in Mark VI systems
• Protection Architecture: Triple Modular Redundancy (TMR)
• Trip Outputs: Interfaces with up to three trip solenoids
• Relay Configuration: Nine magnetic relays arranged in three voting circuits
• Associated Board: TREL terminal board
• Manual Protection: Provision for emergency-stop functions

GE documentation describes the TRPL as a primary overspeed protection terminal board for large steam turbines, with nine magnetic relays arranged in three voting circuits.

Protection Function and Architecture

The main purpose of the IS200TRPLH1A is to provide a reliable electrical interface between the turbine protection controller and the Electrical Trip Devices (ETDs).

In a typical configuration, the TRPL works together with the TREL terminal board. The two boards form the primary and emergency sides of the interface to the turbine trip solenoids. The system can connect up to three trip solenoids, with the TREL providing the positive side of the 125 V DC circuit and the TRPL providing the negative side.

For TMR applications, the three independent power buses are associated with three solenoid-control paths. The relay circuits use two-out-of-three voting, helping provide redundancy for critical turbine trip functions.

This architecture is particularly important in turbine protection because the trip circuit must be capable of initiating a shutdown when an unsafe operating condition is detected.

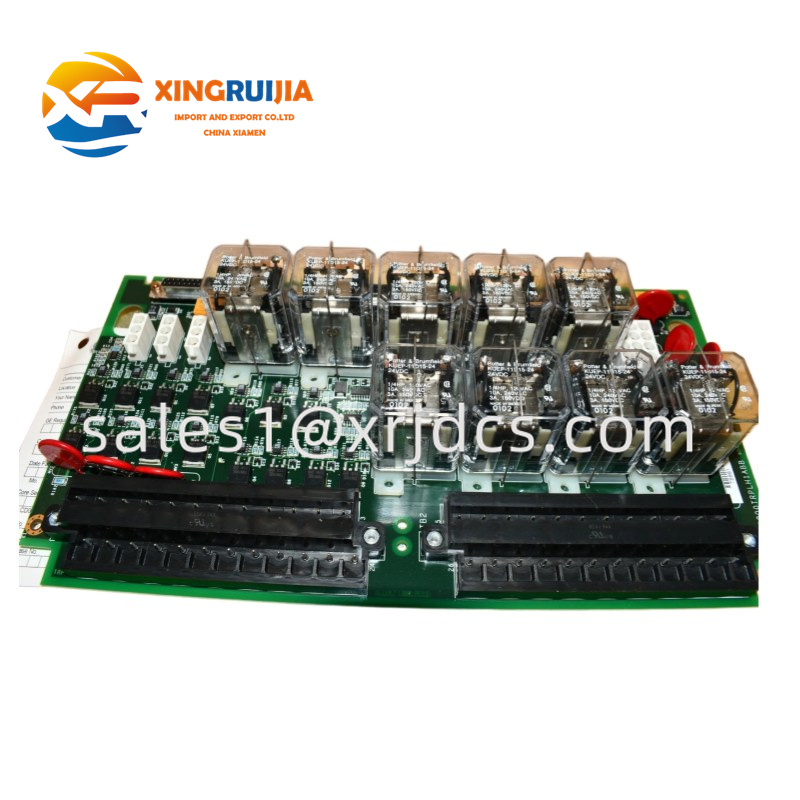

Board Construction

The IS200TRPLH1A uses a dedicated terminal-board design rather than functioning as a general-purpose processor board. Its hardware includes:

• Two large terminal strips
• Three D-shell connectors
• Nine magnetic relays
• Metal-oxide varistors
• Resistors and capacitors
• Transistors and integrated circuits
• Wire jumpers
• Dedicated trip and monitoring circuitry

The board also provides connections for emergency-stop functions and trip-solenoid circuits.

GE's certification documentation also identifies IS200TRPLH1A among Mark VI/Mark VIe control hardware models covered by its applicable equipment certification.

Applications

The IS200TRPLH1A is mainly used in turbine protection systems where reliable primary trip functionality is required.

Typical applications include:

• Large steam turbines
• Power-generation systems
• Turbine overspeed protection
• Generator and turbine packages
• Steam turbine control systems
• Emergency shutdown circuits
• TMR turbine protection architectures
• GE Mark VI maintenance and refurbishment

Its role is especially important in systems where turbine overspeed or another critical condition requires rapid activation of the trip mechanism.

Installation and Maintenance

Because the IS200TRPLH1A can be connected to high-energy trip circuits, installation and servicing should only be performed by qualified personnel following the applicable GE documentation and site safety procedures.

Before replacement, technicians should verify:

1. Complete part number and revision.
2. Existing terminal wiring.
3. TMR configuration.
4. Trip-solenoid connections.
5. Emergency-stop wiring.
6. Associated VTUR/PTUR and TREL hardware.
7. Board connectors and jumper positions.

The board should be handled using appropriate ESD precautions. During troubleshooting, technicians should also inspect the associated trip solenoids, wiring, TREL board, VTUR/PTUR interface, power supplies, and relay circuits rather than assuming that a trip-related fault originates from the TRPL board itself.

Replacement and Lifecycle Support

The GE IS200TRPLH1A remains relevant for facilities maintaining legacy Mark VI turbine control systems. GE documentation confirms its role within the turbine primary-trip architecture, while current industrial parts references continue to identify the exact model as a Mark VI TRPL turbine primary trip board.

When purchasing a replacement, always specify the complete IS200TRPLH1A designation. Related boards such as IS200TRPGH, IS200TRPAH, IS200TRPSH, and IS200TRELH have different functions and should not be treated as interchangeable simply because they belong to the same Mark VI trip-terminal family.

For power plants and turbine maintenance companies, maintaining a correctly matched IS200TRPLH1A spare can help reduce troubleshooting time and support reliable restoration of critical turbine protection functions.

————————————————————————————————————————————————————————————————————————
