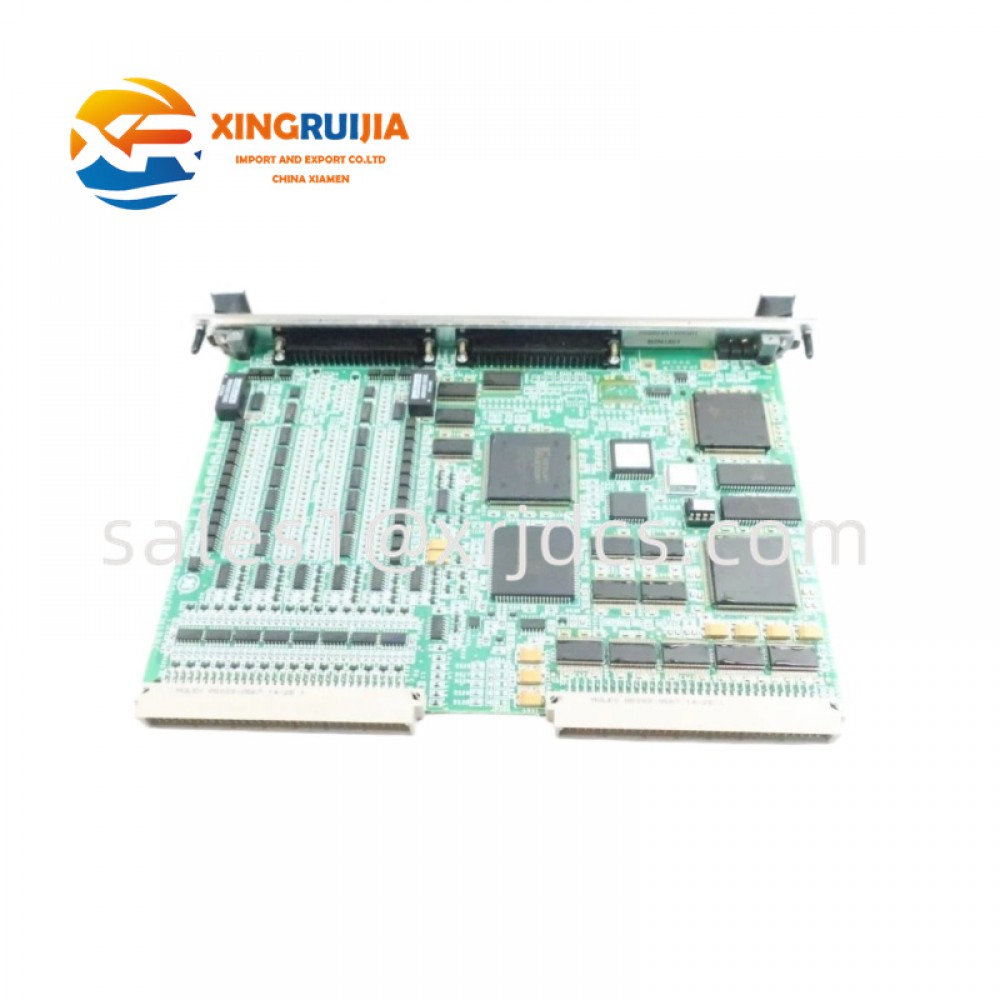

GE IS200VCRCH1BBC

Product Overview

The GE IS200VCRCH1BBC is a Mark VI Speedtronic turbine control system printed circuit board (PCB) used primarily as a discrete input/output (I/O) interface module. It is designed by General Electric (GE) for industrial gas and steam turbine control applications, where it manages high-density digital signals between field devices and the Mark VI control architecture.

This board is part of the GE IS200 series and is widely deployed in power plants, oil & gas facilities, and heavy industrial automation systems, providing reliable relay control and signal processing for turbine operation and protection functions.

---

Core Function

The IS200VCRCH1BBC is mainly responsible for:

• Processing discrete input signals from field instruments
• Driving relay and solenoid outputs for control actions
• Acting as an interface between VME rack backplane and external equipment
• Supporting turbine logic sequences (start, stop, trip, alarm handling)
• Enabling communication with other Mark VI system modules

It is typically classified as a VCRC-type I/O processor board within the Mark VI system architecture.

---

Technical Specifications

Item	Description
Manufacturer	General Electric (GE)
Series	Speedtronic Mark VI
Part Number	IS200VCRCH1BBC
Product Type	Discrete I/O / Interface PCB
System Platform	GE Mark VI Turbine Control
Input Channels	Up to 48 discrete inputs
Output Channels	Up to 24 relay / solenoid outputs
Installation	Single-slot VME rack module
Front Panel	LED indicators (RUN / FAIL / STATUS)
Connectors	Multiple backplane & front connectors
Function Role	Digital signal processing & relay control

---

Structure & Design

The IS200VCRCH1BBC is built as a high-density industrial PCB optimized for turbine control environments.

Key structural elements include:

• Multi-layer printed circuit board design
• High-count integrated circuits for signal processing
• Relay driver circuits for output control
• Digital input conditioning circuits
• VME backplane interface connectors
• Front panel with diagnostic LEDs
• Test points for maintenance and diagnostics

The board is designed for compact rack integration, minimizing space usage while maintaining high I/O capacity.

---

Key Features

• High-density 48 discrete input channels
• 24 relay/solenoid output channels
• Compact single-slot VME rack design
• Built-in diagnostic LEDs for quick fault identification
• Industrial-grade reliability for turbine environments
• Compatible with GE Mark VI Speedtronic systems
• Designed for continuous 24/7 operation
• Supports critical turbine control logic execution

---

Application Areas

The GE IS200VCRCH1BBC is widely used in:

• Gas turbine control systems
• Steam turbine automation systems
• Power generation plants
• Oil & gas processing facilities
• Industrial compressor control systems
• Petrochemical plants
• Heavy industrial automation platforms
• Legacy GE Mark VI upgrade and maintenance projects

It plays a key role in turbine sequencing, protection logic, and field device control.

---

Installation Guidelines

To ensure proper operation and system safety:

• Always power down the VME rack before installation
• Insert carefully into the correct single-slot position
• Ensure full backplane connector engagement
• Verify front panel cable connections (J33 / J44 where applicable)
• Confirm LED status after system startup
• Follow GE Mark VI system documentation strictly

Incorrect installation may lead to communication faults or I/O failure.

---

Maintenance & Diagnostics

The module is generally maintained as a replaceable unit, with maintenance focused on system-level checks:

• Monitor RUN / FAIL / STATUS LEDs
• Inspect connectors for oxidation or looseness
• Verify input/output signal integrity
• Check rack backplane seating
• Review turbine control system fault logs
• Replace module if persistent I/O errors occur

Preventive replacement is common in critical turbine systems to avoid downtime.

---

Industrial Importance

The IS200VCRCH1BBC remains important due to:

• Continued operation of GE Mark VI turbine systems
• High reliability in harsh industrial environments
• Critical role in turbine safety and control logic
• Modular replacement capability for maintenance
• Support for large-scale discrete I/O processing

It is a key component in ensuring safe and stable turbine operation in legacy GE control infrastructures.

---

Conclusion

The GE IS200VCRCH1BBC Mark VI I/O Interface Board is a robust and essential turbine control module designed for discrete signal processing and relay output management. With its high channel density, industrial-grade PCB design, and integration into the GE Mark VI Speedtronic system, it provides reliable control and protection functionality for gas and steam turbine applications across power generation and heavy industrial sectors.
