GE IS200VRTDH1B

Product Overview

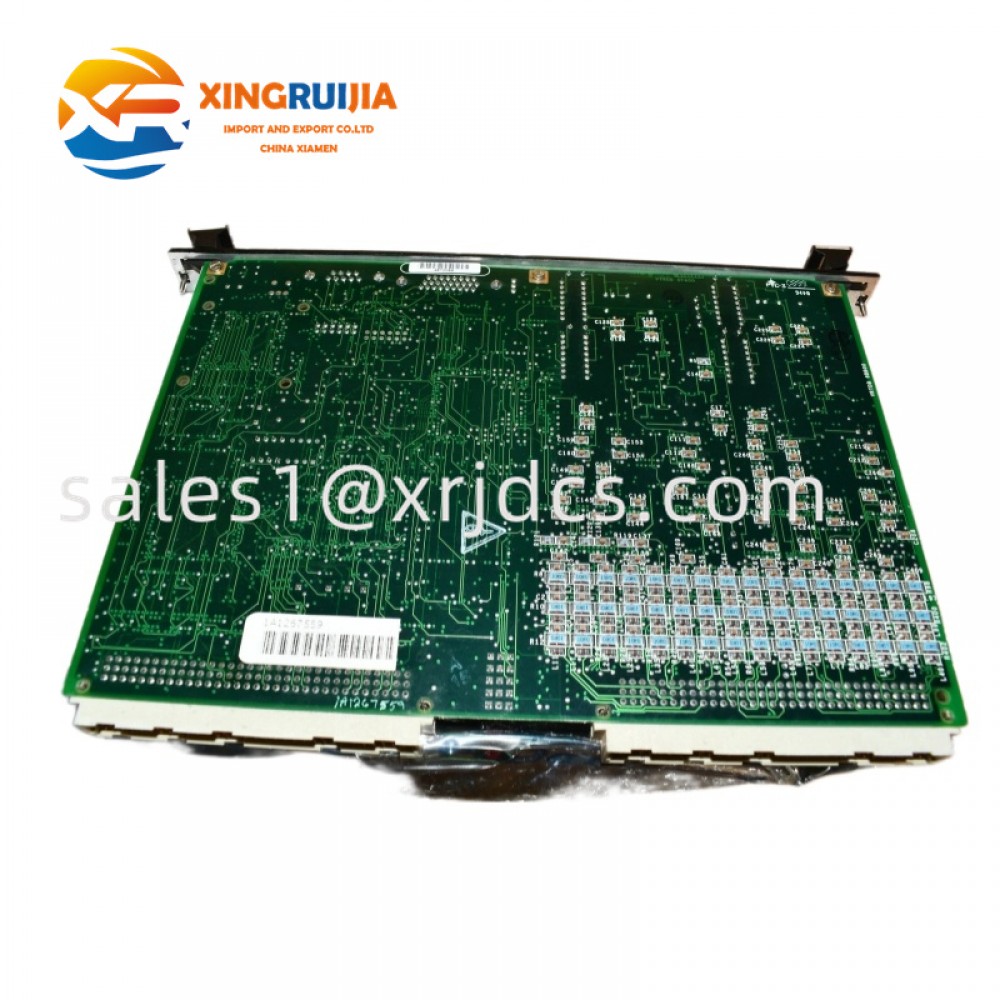

The GE IS200VRTDH1B is a VME RTD card developed for the GE Mark VI Speedtronic turbine control system. The VRTD designation refers to its resistance temperature detection function, allowing the Mark VI system to acquire temperature measurements from RTD sensors used throughout turbine equipment.

The board is designed for industrial temperature monitoring applications where accurate and reliable RTD signal acquisition is required. It can be used in both Simplex and TMR system configurations, depending on the associated terminal-board and system architecture.

Technical Specifications

Item	Description
Manufacturer	General Electric
Product Series	Mark VI Speedtronic
Model	IS200VRTDH1B
Functional Acronym	VRTD
Product Type	VME RTD Input Card
Application	RTD Temperature Monitoring
RTD Inputs	16 inputs, arranged as two groups of 8
Connection	Two cables
Connector	37-pin D-shell type
Terminal Board	TRTD
PCB Revision	B
Board Coating	Conformal coating
System Architecture	Simplex or TMR
Installation	Mark VI VME I/O rack

The available technical references identify the IS200VRTDH1B as a Mark VI VME RTD card with 16 RTD inputs and a TRTD terminal-board interface.

Signal Acquisition and Hardware Design

The IS200VRTDH1B works with the associated RTD terminal board to receive temperature signals from field-mounted resistance temperature detectors. The board provides two groups of eight RTD inputs, giving the system access to multiple temperature measurement points.

Its VME-based design allows the RTD acquisition circuitry to communicate with the Mark VI control system. The board incorporates signal-conditioning and conversion circuitry for processing RTD measurements before the temperature information is made available to the control system.

The hardware also includes a VCO-based A/D conversion arrangement. According to available technical information, the converter can sample RTD signals during normal and faster scanning modes, supporting the continuous monitoring requirements of turbine control applications.

Key Features

Several characteristics make the IS200VRTDH1B suitable for turbine temperature monitoring:

• 16 RTD input channels for multi-point temperature measurement
• VME architecture for integration with Mark VI control hardware
• TRTD terminal-board interface
• Support for Simplex and TMR configurations
• Optimum signal isolation and conditioning for industrial measurement
• Conformal-coated PCB for additional environmental protection
• Front-panel diagnostic indicators
• Designed for continuous industrial monitoring applications

The board's front panel incorporates status LEDs that provide operating and diagnostic information. Available documentation describes a flashing green RUN indication and a red FAIL indication when a fault condition is detected.

Applications and System Integration

The GE IS200VRTDH1B is primarily associated with GE Mark VI turbine control systems. The Mark VI platform provides integrated control, protection, and monitoring for gas and steam turbine applications.

Typical applications for the RTD card include:

• Gas turbine temperature monitoring
• Steam turbine temperature monitoring
• Bearing temperature measurement
• Winding and equipment temperature monitoring
• Industrial turbine protection
• Power-generation control systems
• Process temperature acquisition
• Legacy GE Speedtronic system maintenance

The board connects to the VME I/O rack through dedicated cables and interfaces with the corresponding RTD terminal-board assembly. The available technical information indicates that RTD sensors can be located at substantial distances from the associated cabinet when the installation is properly engineered.

Installation and Maintenance

When replacing an IS200VRTDH1B, technicians should first verify the complete part number, board revision, terminal-board type, cable arrangement, and whether the existing Mark VI system uses Simplex or TMR architecture.

Before installation, inspect the board for damaged connectors, contamination, corrosion, overheating, or physical damage. The VME connectors and associated cables should also be checked carefully because poor connections can produce intermittent temperature signals or communication faults.

During maintenance, the front-panel status indicators can provide an initial indication of the board's operating condition. Any abnormal FAIL indication should be investigated through the Mark VI diagnostic system before replacing the hardware.

For replacement projects, matching GE IS200VRTDH1B exactly is recommended. It should not automatically be substituted with visually similar IS200VRTDH1C or IS200VRTDH1D variants because board revisions and system configurations may differ. The IS200VRTDH1B remains a useful spare part for maintaining existing GE Mark VI turbine control and RTD monitoring systems.

————————————————————————————————————————————————————————————————————————
