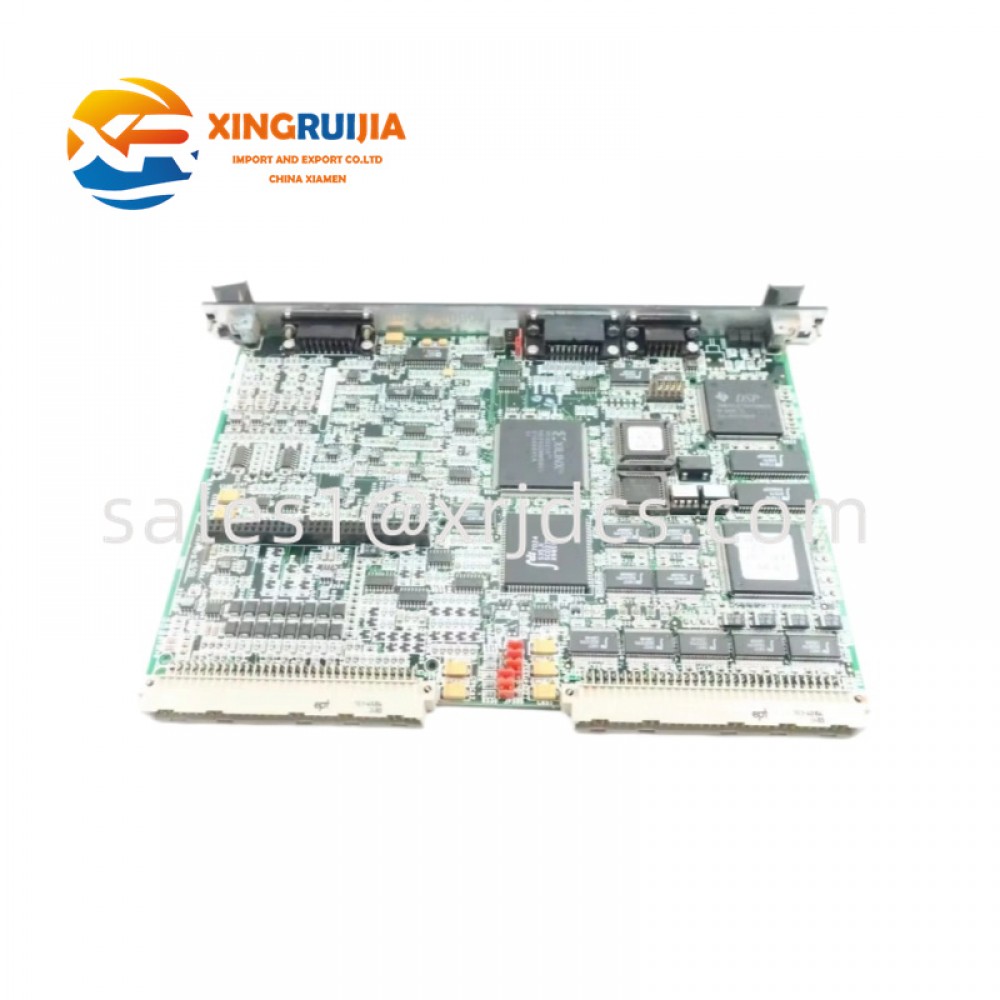

GE IS200VTURH1ACB

Overview

The GE IS200VTURH1ACB is a turbine protection and control module used in the GE Speedtronic Mark VI / Mark VIe distributed control system (DCS). It is primarily designed for primary turbine overspeed protection, speed monitoring, and trip control functions in industrial gas and steam turbine applications.

This module plays a critical role in ensuring safe turbine operation by continuously monitoring speed signals and executing emergency shutdown logic when abnormal operating conditions are detected.

It is widely used in power generation plants, oil & gas facilities, and heavy industrial energy systems where turbine safety and reliability are essential.

---

Product Classification & Function

The IS200VTURH1ACB typically functions as:

• Primary turbine protection board
• Overspeed trip control module
• Speed signal processing unit
• Relay output interface for turbine trip systems
• Mark VI / Mark VIe turbine control subsystem component

Its core role is to interface with turbine speed pickups and protection logic to ensure fast and reliable shutdown response in fault conditions.

---

Technical Specifications

Item	Description
Model	IS200VTURH1ACB
Series	GE Mark VI / Mark VIe IS200
Manufacturer	General Electric (GE)
Functional Acronym	VTUR
Main Function	Turbine protection / overspeed trip control
Speed Input Range	2 Hz – 20 kHz (typical VTUR architecture)
Measurement Accuracy	±0.05% of reading
Trip Outputs	Multiple relay-driven trip solenoids
Typical Solenoids Controlled	Up to 3 main trip solenoids
Voltage Sensing	20 V DC (HIGH), 6 V DC (LOW) sensing levels
System Architecture	Supports simplex or TMR (Triple Modular Redundant) configurations
Communication	Backplane integration within Mark VI rack system
Installation Type	VME-based rack mounted control board

---

Key Features

The IS200VTURH1ACB is engineered for high-integrity turbine protection, offering:

• Real-time turbine speed monitoring with high precision
• Overspeed detection and automatic trip execution
• Integration with GE Mark VI/VIe control architecture
• Support for redundant (TMR) safety configurations
• High-speed pulse processing for turbine shaft signals
• Reliable relay output control for emergency shutdown systems
• Designed for continuous operation in harsh industrial environments

---

Structure and Internal Composition

The module is built as a VME-based industrial control board and includes several functional layers:

• Signal Input Section
  Processes turbine speed pickup signals (MPU sensors)
• Digital Processing Unit
  Converts analog pulse signals into processed speed data
• Protection Logic Circuitry
  Executes overspeed and fault detection algorithms
• Relay Output Stage
  Drives trip solenoids and external protection circuits
• Communication Backplane Interface
  Connects to Mark VI control racks and system processors
• Isolation & Protection Layer
  Provides electrical isolation and noise immunity in high-voltage environments

This layered architecture ensures both speed accuracy and fail-safe protection response.

---

Applications

The GE IS200VTURH1ACB is used in high-risk industrial turbine systems, including:

• Gas turbine power plants
• Steam turbine generator systems
• Combined-cycle power stations
• Oil & gas compression stations
• Industrial energy production facilities
• GE Speedtronic Mark VI/VIe turbine control systems

It is especially critical in systems requiring automatic emergency shutdown capability (ESD functions).

---

Installation & Maintenance

Installation Requirements

• Must be installed in GE Mark VI / Mark VIe turbine control racks
• Requires proper backplane seating and grounding
• Speed pickup wiring must be shielded to avoid signal noise
• System configuration must match turbine protection logic design
• Installation should only be performed by certified turbine control engineers

Maintenance Guidelines

• Periodic inspection of rack connectors for oxidation or looseness
• Monitoring of turbine trip logs and fault history
• Verification of speed signal calibration accuracy
• Replacement only with compatible GE-approved modules
• Ensure firmware/system compatibility within Mark VI architecture

---

Importance in Turbine Safety Systems

The IS200VTURH1ACB is a safety-critical component, meaning:

• Failure can directly impact turbine protection integrity
• It is part of the emergency shutdown chain
• It ensures prevention of mechanical overspeed damage
• It supports plant-level safety compliance requirements

Because of this, it is typically deployed with redundancy and strict monitoring standards.

---

Summary

The GE IS200VTURH1ACB is a high-reliability turbine protection control board used in GE Mark VI/VIe systems. It is responsible for monitoring turbine speed, detecting abnormal conditions, and initiating emergency trip actions when necessary.
