GE IS200ERDDH1ABA

Product Overview

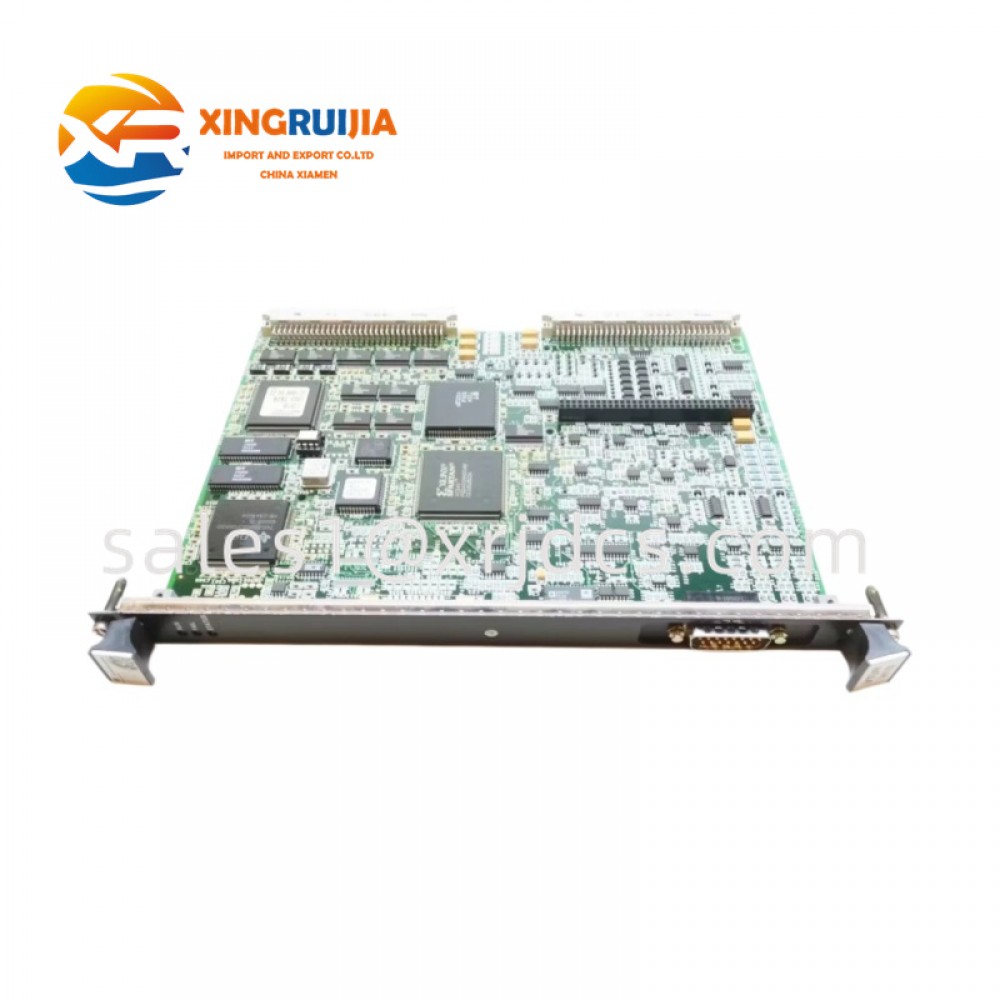

The GE IS200VTURH1BAA is a high-reliability turbine protection and control PCB module designed for the GE Speedtronic Mark VI turbine control system. It is used in gas and steam turbine applications to manage critical protection functions such as overspeed detection, trip control, and turbine monitoring.

This board acts as a primary protection interface, ensuring safe turbine operation by continuously supervising speed signals, system status inputs, and trip logic execution.

---

Core Function & System Role

The IS200VTURH1BAA is a central safety-related module in turbine control architecture.

Main Functions:

• Primary turbine protection logic execution
• Overspeed and abnormal condition detection
• Speed signal acquisition from MPU sensors
• Trip relay control and shutdown activation
• Interface with Mark VI turbine control racks
• Monitoring of turbine operating parameters

It plays a key role in preventing turbine damage during fault conditions by initiating rapid shutdown actions when necessary.

---

Technical Specifications

Item	Description
Manufacturer	General Electric (GE)
Series	Speedtronic Mark VI
Model	IS200VTURH1BAA
Product Type	Primary turbine protection card
Application	Gas & steam turbine control systems
System Compatibility	Mark VI / IS200 control architecture
Input Type	Magnetic pickup (MPU) speed signals
Function	Protection, monitoring, trip control
Installation	VME-type turbine control rack module
Operating Environment	Industrial power generation systems

---

Functional Design & Internal Structure

The board is engineered as a rugged industrial control PCB designed for continuous operation in turbine environments.

Key Internal Components:

• Signal processing circuits for turbine speed inputs
• Protection logic processing unit
• Relay driving circuits for trip functions
• Communication interface to Mark VI controller
• Diagnostic LEDs (status, run, fault indicators)
• Isolation and surge protection components

It is designed to maintain safe operation even under high vibration, temperature variation, and electrical noise conditions typical in power plants.

---

Protection Capabilities

The IS200VTURH1BAA supports multiple turbine safety functions:

• Overspeed protection (critical shutdown function)
• Trip solenoid control (typically multiple outputs)
• Speed monitoring from multiple MPU inputs
• Flame detection monitoring (gas turbine applications)
• Generator synchronization support functions
• Shaft current and abnormal condition detection

These functions ensure compliance with industrial turbine safety standards.

---

Application Areas

Power Generation Plants

• Gas turbine control systems
• Steam turbine generators
• Combined-cycle power stations

Industrial Energy Systems

• Utility-scale generation facilities
• Backup and emergency turbine systems
• Grid-connected generation control systems

Legacy GE Control Systems

• GE Mark VI turbine control platforms
• Retrofit and maintenance of installed turbine fleets

---

Installation Guidelines

Proper installation is critical for turbine safety systems.

Recommended Practices:

• Install only in powered-down VME racks
• Ensure correct seating of edge connectors
• Secure using captive screws and mounting levers
• Maintain strict ESD protection during handling
• Verify wiring of MPU and trip circuits before startup

Incorrect installation may result in system protection failure.

---

Maintenance & Reliability

The IS200VTURH1BAA is designed for long-term industrial service but requires periodic inspection.

Maintenance Tasks:

• Inspect capacitors and PCB aging signs
• Check connector integrity and oxidation
• Verify speed signal accuracy and calibration
• Monitor LED status indicators regularly
• Replace during scheduled turbine outages if necessary

Preventive maintenance is essential due to its safety-critical role.

---

Key Advantages

• High-speed turbine protection response
• Reliable operation in harsh power plant environments
• Integrated diagnostic and monitoring functions
• Designed for GE Mark VI turbine control systems
• Supports multiple redundancy configurations
• Proven industrial reliability in global power generation

---

Conclusion

The GE IS200VTURH1BAA is a critical turbine protection card used in GE Mark VI control systems. It ensures safe turbine operation through real-time monitoring, overspeed protection, and trip control functions. As a key safety component in power generation infrastructure, it plays an essential role in protecting high-value turbine equipment and maintaining stable plant operation.
