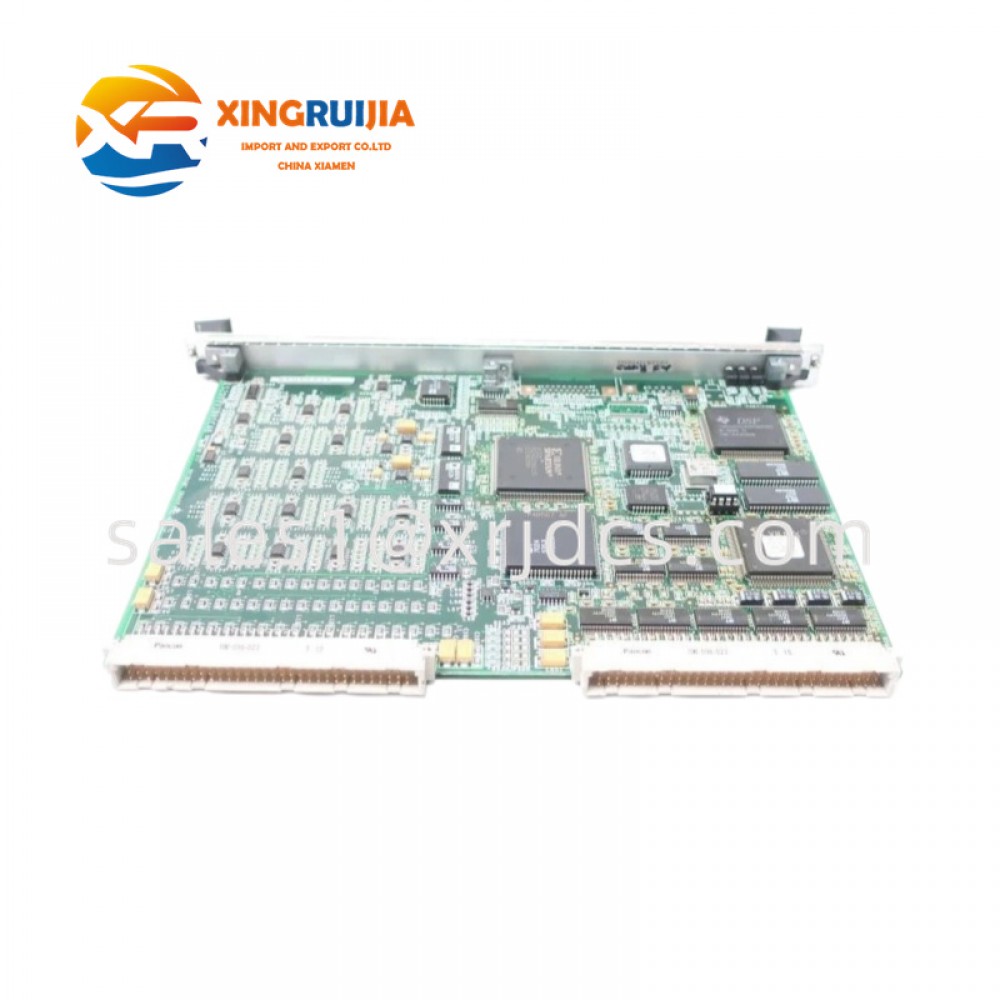

GE IS200VVIBH1CAB

Overview

The GE IS200VVIBH1CAB is a vibration monitoring and signal processing board used in the GE Mark VI / Speedtronic turbine control system. It is part of GE’s VME-based protection and condition monitoring architecture, designed to acquire and process vibration signals from critical rotating machinery.

According to technical documentation and industrial distributors, this module is specifically designed to work with DVIB / TVIB terminal boards and is commonly used in gas turbines, steam turbines, compressors, and generator sets for real-time vibration protection and diagnostics.

---

Functional Role

The IS200VVIBH1CAB functions as a central vibration data acquisition module, performing:

• Collection of vibration signals from field sensors
• Signal conditioning and filtering
• Analog-to-digital conversion (A/D processing)
• Transmission of processed data via VME backplane
• Interface with turbine protection and control logic
• Support for alarm and trip functions in safety systems

In practice, it acts as the “vibration intelligence board” inside the Mark VI turbine protection system.

---

Technical Specifications

Item	Specification
Model	IS200VVIBH1CAB
Manufacturer	General Electric (GE)
System Series	Mark VI / Speedtronic
Board Type	VME Vibration Monitoring Board
Function	Vibration signal acquisition & processing
Signal Sources	DVIB / TVIB terminal boards
Sensor Types	Proximity probes, accelerometers, seismic, velocity sensors
Communication	VME bus backplane
Processing	Embedded analog front-end + digital processing
Redundancy	Compatible with simplex and TMR systems
PCB Protection	Conformal coating (industrial environment protection)
Operating Environment	Industrial control cabinet (power plant grade)
Temperature Range	Typically -20°C to +60°C (industrial standard)

---

Key Features

• High-precision turbine vibration monitoring capability
• Supports multiple sensor types via terminal boards
• Real-time conversion of analog vibration signals to digital data
• Integrated with GE Mark VI turbine protection system
• Compatible with Bently Nevada probe ecosystems
• Designed for harsh industrial environments with EMI protection
• Supports predictive maintenance and early fault detection

---

Internal Structure

The IS200VVIBH1CAB is a dense VME circuit board that typically includes:

• Analog Input Interface Stage – Receives vibration signals
• Signal Conditioning Circuits – Filters noise and stabilizes signals
• A/D Conversion Units – Converts analog signals into digital data
• Processing Logic (ICs / FPGA) – Handles vibration analysis
• VME Backplane Connectors – Transfers data to turbine controller
• Diagnostic LEDs – Indicate run, fault, and status conditions
• Conformal Coating Layer – Protects PCB from dust and moisture

---

Applications

This module is used in high-critical industrial systems such as:

• Gas turbine control systems
• Steam turbine monitoring systems
• Power generation plants
• Compressor train vibration protection
• Oil & gas rotating machinery monitoring
• Industrial predictive maintenance platforms

It is especially important for systems requiring continuous vibration monitoring to prevent mechanical failure.

---

Installation & Maintenance

Installation Guidelines

• Installed in GE Mark VI VME rack systems
• Must be properly grounded and shielded
• Sensor wiring must follow vibration monitoring standards
• Slot configuration must match system engineering design
• Installation should be performed by qualified turbine control engineers

Maintenance Recommendations

• Periodic inspection of VME connectors
• Monitor diagnostic LED status indicators
• Check vibration signal accuracy and drift
• Maintain clean, temperature-controlled cabinet environment
• Replace board if persistent communication or signal faults occur

---

Industrial Importance

The IS200VVIBH1CAB plays a critical protection role in turbine systems:

• Detects early-stage mechanical faults (bearing wear, imbalance)
• Enables turbine trip logic for catastrophic failure prevention
• Supports predictive maintenance strategies
• Improves uptime and operational safety
• Integrates directly into GE turbine protection architecture

Without this module, turbine systems would lose a key layer of real-time mechanical health monitoring.

---

Summary

The GE IS200VVIBH1CAB is a VME-based vibration monitoring board used in GE Mark VI turbine control systems. It processes vibration signals from field sensors and provides real-time diagnostic and protection data for critical rotating machinery.

————————————————————————————————————————————————————————————————————————
