GE IS200VVIBH1CAC

Product Overview

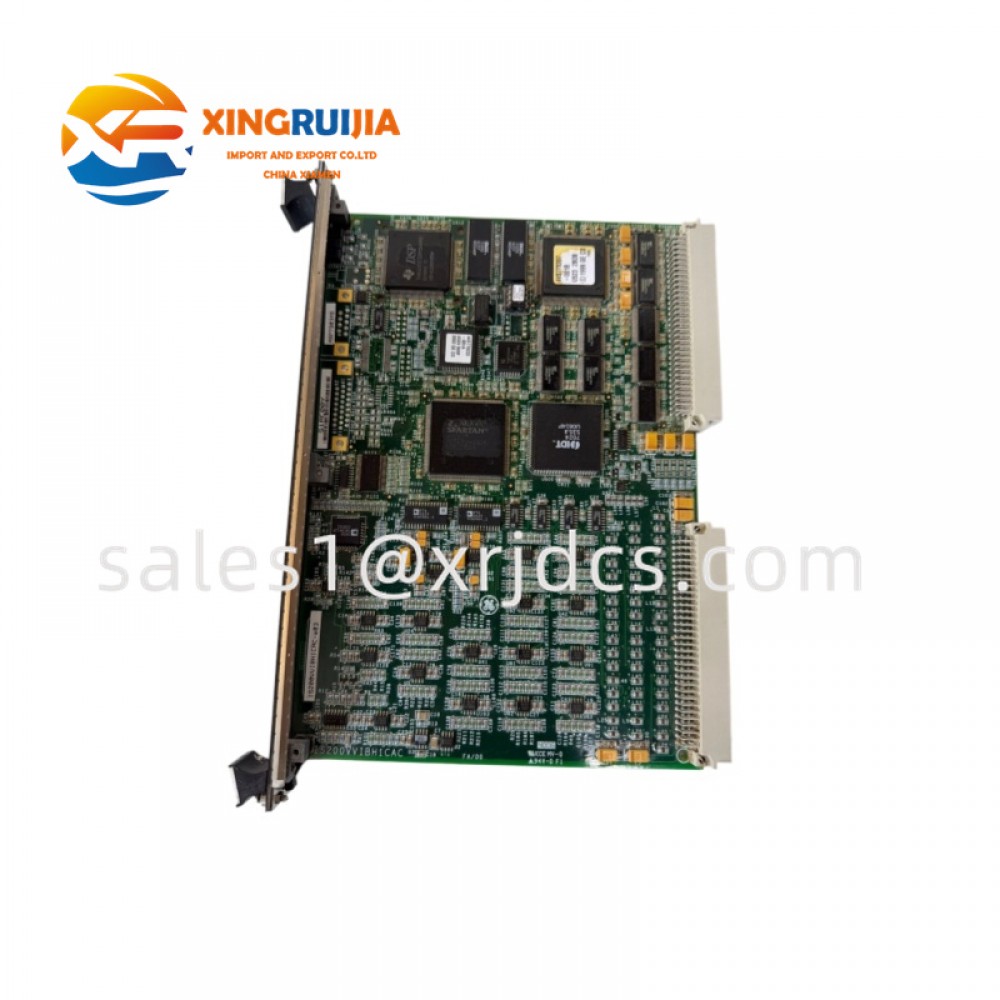

The GE IS200VVIBH1CAC Vibration Monitor Board is a specialized monitoring module developed for the GE Mark VI Speedtronic Turbine Control System. Designed to acquire, process, and analyze vibration signals from critical rotating equipment, this board plays an essential role in turbine protection, condition monitoring, and predictive maintenance programs. It enables real-time vibration analysis to help operators identify abnormal operating conditions before they develop into costly failures.

Widely used in gas turbines, steam turbines, and other high-value rotating machinery, the IS200VVIBH1CAC provides reliable signal processing and seamless integration with the Mark VI control architecture.

---

Key Technical Specifications

Parameter	Specification
Model Number	IS200VVIBH1CAC
Manufacturer	General Electric (GE)
Product Type	Vibration Monitor Board
Series	Mark VI Speedtronic
System Platform	GE Mark VI Control System
Installation Type	VME Rack Mounted
Signal Function	Vibration Monitoring and Protection
Supported Probes	Seismic, Proximitor, Velomitor, Accelerometer
Operating Temperature	-30°C to +65°C
Communication	VME Bus
Origin	USA
Revision	CAC Revision Configuration
Dimensions	Approx. 33.0 cm × 17.8 cm

---

Functional Features

Advanced Vibration Signal Processing

The board receives vibration signals from connected DVIB or TVIB terminal boards and converts analog sensor data into digital information for transmission through the VME bus. This enables accurate condition monitoring and rapid response to mechanical abnormalities.

Multi-Probe Compatibility

IS200VVIBH1CAC supports a variety of industrial vibration sensing technologies, including:

• Seismic probes
• Proximity probes
• Velocity sensors
• Accelerometers
• Bently Nevada monitoring probes

This flexibility allows integration into diverse turbine monitoring applications.

Real-Time Machinery Protection

The module supports several critical protection functions:

• Shaft vibration monitoring
• Rotor eccentricity detection
• Differential expansion measurement
• Rotor axial position monitoring

These functions contribute to improved equipment safety and operational reliability.

---

Construction and Components

The IS200VVIBH1CAC board incorporates a robust industrial-grade design suitable for demanding power generation environments.

Major hardware elements include:

• VME backplane connectors (P1 and P2)
• Multiple auxiliary interface connectors
• Xilinx Spartan FPGA
• RAM and SRAM memory devices
• Signal conditioning circuitry
• Inductor arrays and filtering components
• Diagnostic LED indicators
• Protective conformal coating

The front faceplate contains three status LEDs:

• RUN
• STATUS
• FAIL

These indicators provide quick visual diagnostics during operation and maintenance.

---

Typical Applications

The GE IS200VVIBH1CAC is commonly deployed in:

• Gas turbine control systems
• Steam turbine monitoring systems
• Combined-cycle power plants
• Industrial power generation facilities
• Compressor stations
• Petrochemical plants
• Heavy rotating equipment protection systems
• Predictive maintenance programs

Its vibration monitoring capabilities help reduce unplanned downtime while improving asset availability and operational efficiency.

---

Installation Guidelines

For optimal performance, the board should be installed in a compatible Mark VI VME rack environment.

Recommended installation practices include:

1. Verify power isolation before installation.
2. Inspect connectors for contamination or damage.
3. Securely mount the board into the designated VME slot.
4. Connect vibration probes according to GE system documentation.
5. Confirm proper communication through the Mark VI controller.
6. Verify LED status indicators during commissioning.

Proper grounding and shielding are recommended to minimize electrical noise and ensure accurate vibration measurements.

---

Maintenance Recommendations

Routine maintenance can significantly extend service life and maintain measurement accuracy.

Suggested maintenance activities:

• Periodic inspection of connectors and terminals
• Verification of probe calibration
• Cleaning of dust and contaminants from the board surface
• Monitoring diagnostic LEDs for abnormal conditions
• Checking VME rack connections and communication integrity
• Reviewing vibration trend data for early fault identification

Preventive maintenance helps maximize turbine reliability and reduce maintenance costs.

---

Advantages

The IS200VVIBH1CAC offers several operational benefits:

• High-accuracy vibration monitoring
• Reliable turbine protection functions
• Seamless integration with Mark VI systems
• Support for multiple sensor technologies
• Real-time fault detection capability
• Rugged industrial construction
• Long-term operational stability
• Reduced risk of catastrophic machinery failures

These advantages make the board a critical component for modern turbine condition monitoring and asset protection strategies.

---

Conclusion

The GE IS200VVIBH1CAC Vibration Monitor Board is a high-performance monitoring solution engineered for the GE Mark VI Speedtronic platform. By delivering precise vibration data acquisition, advanced signal processing, and comprehensive machinery protection functions, it helps power generation facilities maintain safe, reliable, and efficient turbine operation while supporting long-term predictive maintenance objectives.

————————————————————————————————————————————————————————————————————————
