GE IS200WROBH1A IS200WROBH1ABA

Product Overview

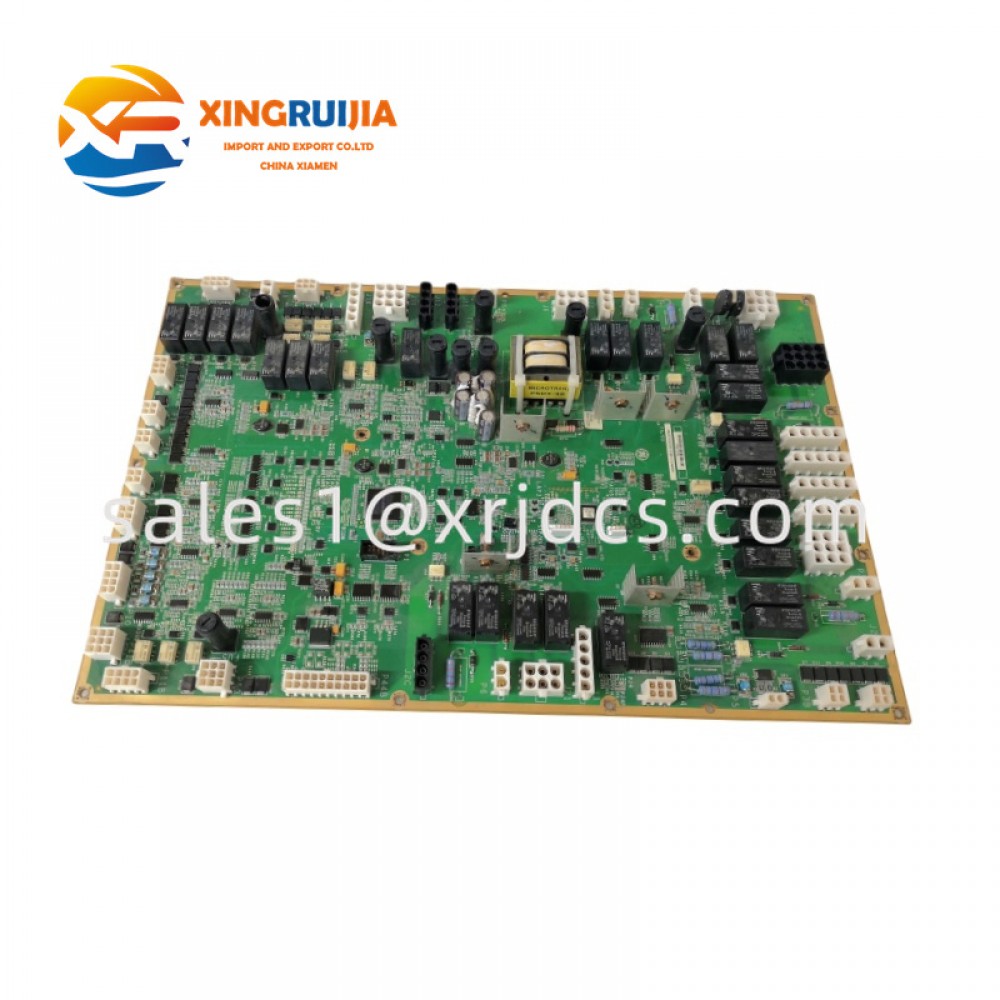

The GE IS200WROBH1A / IS200WROBH1ABA is a specialized Relay Fuse and Power Sensing Board designed for the GE Mark VIe turbine control system. As an important option board within GE’s Speedtronic control platform, the WROB board provides relay output power distribution, fuse protection, and voltage sensing functions for discrete output applications. It is mainly used together with GE PDIO (Programmable Discrete Input/Output) modules and compatible terminal boards to achieve reliable control of external field devices.

The GE Mark VIe control system is widely applied in gas turbines, steam turbines, and industrial power generation equipment. In these systems, reliable relay output management is essential because output signals are responsible for controlling important field devices such as valves, motors, solenoids, contactors, and auxiliary equipment. The IS200WROBH1A provides a stable interface between control logic and external electrical loads, improving system reliability and operational safety.

The IS200WROBH1ABA is a revised version of the IS200WROBH1A series and features a conformal-coated PCB design, which improves protection against moisture, dust, and harsh industrial environmental conditions. This makes it suitable for demanding turbine control environments where long-term reliability is required.

---

Technical Specifications

Parameter	Description
Manufacturer	General Electric (GE Energy)
Model	IS200WROBH1A
Revision Model	IS200WROBH1ABA
Product Type	Relay Fuse and Power Sensing Board
Series	GE Mark VIe Control System
Functional Acronym	WROB
Main Function	Relay output power distribution and sensing
Compatible Modules	PDIO Discrete I/O modules
Supported Redundancy	Simplex, Redundant, TMR
Fuse Quantity	12 fuses
Default Fuse Rating	3.15 A
Power Sensing Voltage	24 VDC
Applicable Voltage Range	24 VDC, 48 VDC, 125 VDC, 120/240 VAC (configuration dependent)
PCB Protection	Conformal coating (IS200WROBH1ABA)
Mounting Type	Mark VIe control cabinet installation
Application	Turbine control and industrial automation

---

Functional Description

The primary function of the GE IS200WROBH1A Relay Fuse and Power Sensing Board is to provide protected power distribution and monitoring for relay output circuits in GE Mark VIe systems.

Within a turbine control architecture, the controller sends commands to discrete output modules. These commands are then converted into electrical actions that operate field devices. The WROB board provides the necessary power routing and protection between the output relay circuits and the external equipment.

Its main functions include:

• Relay output power distribution
• Output circuit fuse protection
• Relay power monitoring
• Field device interface support
• Fault detection through sensing circuits

The board works with terminal boards such as TDBT and other PDIO-related assemblies. When integrated into the system, it provides fused power distribution for relay outputs and helps monitor the condition of output circuits.

---

Hardware Structure and Design

Relay Output Power Distribution Section

The IS200WROBH1A is designed to manage power distribution for relay output channels.

The board provides:

• Protected relay power supply paths
• Output circuit isolation
• Relay load connection support
• Power monitoring capability

This design helps prevent damage caused by electrical faults and improves the reliability of external device control.

For applications using multiple relay outputs, the WROB board ensures each channel receives appropriate power protection, reducing the impact of individual circuit failures.

---

Fuse Protection System

One of the key features of the WROB board is its integrated fuse protection structure.

The board includes 12 fuses, with a typical fuse rating of 3.15 A. These fuses protect relay output circuits from overcurrent conditions and help prevent damage to downstream components.

Fuse protection provides several advantages:

• Prevents excessive current damage
• Improves system safety
• Simplifies troubleshooting
• Protects expensive control components

When a fuse fault occurs, maintenance personnel can quickly identify and replace the affected protection element.

---

Power Sensing Function

The WROB board includes power sensing circuits that monitor relay output power conditions.

The sensing function allows the control system to detect abnormal conditions such as:

• Loss of output power
• Fuse failures
• Electrical abnormalities
• Relay circuit problems

This diagnostic capability helps improve turbine system availability by allowing early detection of potential issues.

---

Conformal Coated PCB Design

The IS200WROBH1ABA version features conformal coating protection on the circuit board.

This protective coating improves resistance against:

• Moisture
• Dust
• Chemical contamination
• Industrial environmental stress

The enhanced protection makes the board more suitable for power plants and industrial facilities where electronic equipment may be exposed to challenging conditions.

---

Key Features and Advantages

Reliable Relay Output Control

The GE IS200WROBH1A provides stable relay output management for critical turbine control applications.

It supports reliable operation of devices including:

• Solenoid valves
• Motor starters
• Contactors
• Alarm systems
• Auxiliary equipment

Stable relay control contributes to safe and efficient turbine operation.

---

Supports Simplex and TMR Architectures

The WROB board supports different system configurations, including:

• Simplex systems
• Redundant systems
• Triple Modular Redundant (TMR) systems

This flexibility allows engineers to configure control systems according to reliability requirements.

TMR compatibility is particularly valuable for critical turbine applications where high availability and fault tolerance are required.

---

Improved Fault Protection

Through fuse protection and power sensing functions, the board provides additional protection for output circuits.

Advantages include:

• Faster fault identification
• Reduced equipment damage
• Improved maintenance efficiency
• Higher system reliability

---

Easy Replacement for Existing Mark VIe Systems

The modular design of the IS200WROBH1A allows convenient replacement in existing GE Mark VIe installations.

Maintenance teams can replace damaged boards without significant modifications to the existing control system.

This helps reduce:

• Downtime
• Maintenance costs
• System recovery time

---

Application Fields

Gas Turbine Control Systems

The GE IS200WROBH1A is commonly used in gas turbine control applications.

Typical functions include:

• Fuel system auxiliary control
• Valve operation
• Protection signal output
• Turbine sequencing control

Reliable relay output operation is essential for maintaining turbine performance and safety.

---

Steam Power Plants

Steam turbine systems require dependable control of various auxiliary devices.

Applications include:

• Steam valve control
• Generator auxiliary systems
• Protection circuits
• Mechanical equipment control

The WROB board supports reliable field device operation within GE turbine control architectures.

---

Combined Cycle Power Generation

Combined cycle power plants require coordinated control between gas turbines, steam turbines, and balance-of-plant systems.

The board supports:

• Turbine auxiliary systems
• Electrical control circuits
• Process equipment switching
• Safety-related output functions

---

Industrial Automation Systems

Beyond power generation, GE Mark VIe components are also used in industrial automation applications.

Potential applications include:

• Compressor control systems
• Large rotating machinery
• Process control equipment
• Industrial electrical systems

---

Installation and Maintenance

Installation Guidelines

Before installing the GE IS200WROBH1A or IS200WROBH1ABA, technicians should confirm:

• Compatibility with the GE Mark VIe system
• Correct terminal board configuration
• Proper wiring connections
• Appropriate power supply voltage
• Secure board installation

The installation should follow GE control system documentation to ensure correct operation.

---

Maintenance Recommendations

Regular inspection helps maintain reliable operation of the relay power distribution system.

Recommended maintenance activities include:

• Checking fuse conditions
• Inspecting connectors
• Reviewing diagnostic information
• Verifying relay output operation
• Checking cabinet environmental conditions

For the conformal-coated IS200WROBH1ABA version, technicians should also inspect the coating condition during maintenance.

---

Product Value and Supply Information

The GE IS200WROBH1A / IS200WROBH1ABA Relay Fuse and Power Sensing Board is an essential component for GE Mark VIe turbine control systems. Its combination of relay power distribution, fuse protection, and sensing capability makes it an important spare part for maintaining reliable turbine automation systems.

Main advantages include:

• Designed for GE Mark VIe systems
• Supports simplex, redundant, and TMR configurations
• Integrated fuse protection
• Reliable relay output management
• Power sensing and diagnostic capability
• Industrial conformal coating protection

As an industrial automation spare parts supplier, we provide GE turbine control system components, including Mark VI, Mark VIe boards, I/O modules, terminal boards, communication modules, and controller accessories.
