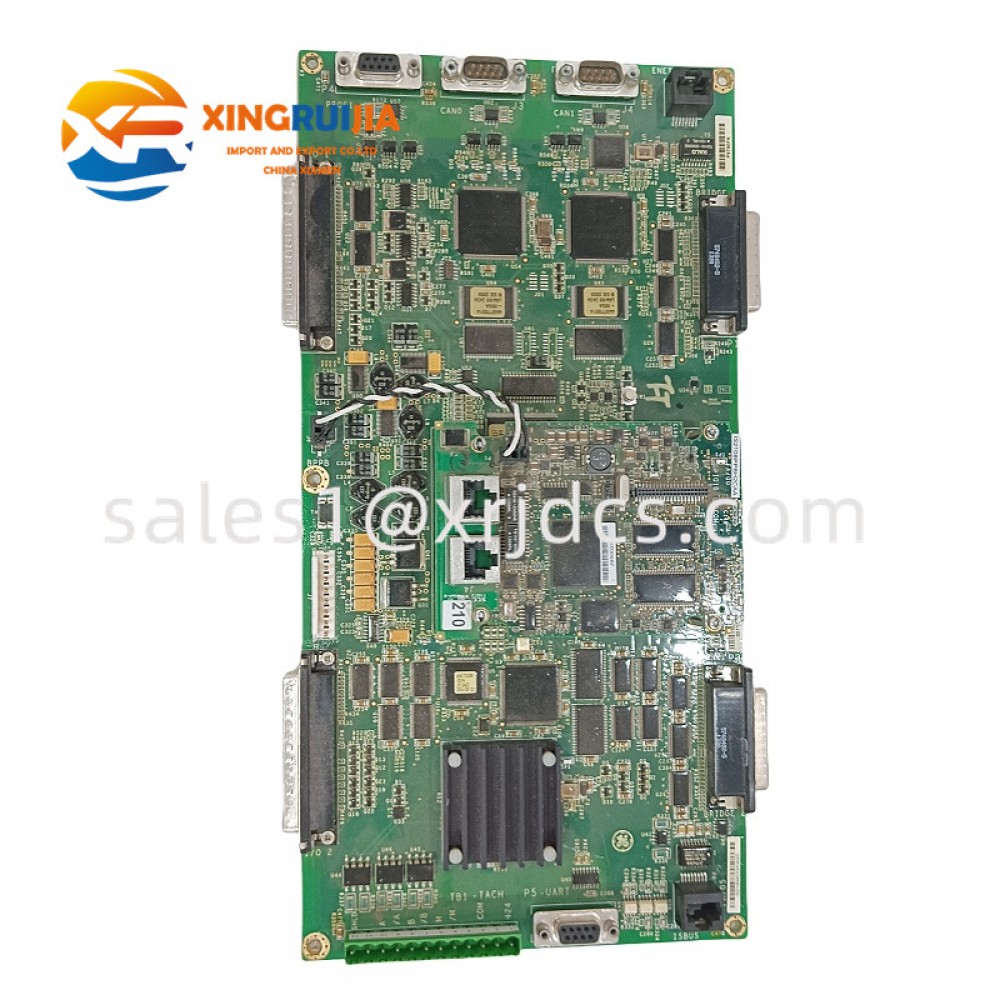

GE IS210MACCH2AEG – Mark VIe MACC Control Module

A. Brief Introduction

The GE IS210MACCH2AEG is a high-performance MACC (Main Automation Controller Core) module used within GE Mark VIe turbine and industrial control systems. Designed for reliable real-time processing and deterministic communication, this module serves as a core element for gas turbines, steam turbines, and balance-of-plant automation.

---

B. Primary Functions & Capabilities

• Centralized Control Processing: Acts as a main logic execution node for turbine sequencing and plant automation tasks.

• High Integrity Networking: Ensures stable communication with I/O packs, HMIs, and system servers via advanced Ethernet-based architecture.

• Event & Trend Management: Handles system diagnostics, alarms, and real-time equipment condition data.

• Modular Scaling: Supports multiple controllers and redundant system layouts.

• Secure Firmware Environment: GE-certified system firmware enhances security and operational integrity.




---

C. Structural Layout & Component Overview

The IS210MACCH2AEG module incorporates several key subsystems:

1. High-Speed Processing Core – Executes real-time turbine and plant logic.

2. Dual Ethernet Communication Interfaces – Used for controller networks and high-speed data transfer.

3. System Backplane Connector – Links to the Mark VIe rack, enabling power and internal communication.

4. Diagnostic Indicator Array – LED groups for link verification, health status, and internal watchdog signals.

5. Shielded Industrial Enclosure – Provides environmental protection and noise immunity.

---

D. Technical Specifications

Parameter	Specification
Module Type	MACC Controller Module
Model	IS210MACCH2AEG
System Platform	GE Mark VIe
Processor	High-speed embedded processor
Network Interfaces	Dual Ethernet ports
Power Source	Rack backplane supply
Cooling Method	Forced-air from system chassis
Operating Temperature	–20°C to +65°C (typical industrial range)
Status Indication	Multi-color LEDs
Installation Format	Mark VIe rack-mounted module

---

E. Application Domains

The module is widely applied in industrial environments requiring ultra-stable control:

• Gas turbine and steam turbine control

• Power generation and combined-cycle systems

• Oil & gas plant automation

• Compressor and pump control systems

• Heavy industrial process regulation

• Distributed supervisory and protection networks




---

F. Installation Guidelines & Maintenance Advice

• Insert the module into the designated Mark VIe rack slot, ensuring firm alignment with the backplane.

• Maintain steady airflow in the cabinet to support thermal management.

• Use only GE-approved configuration tools (e.g., ToolboxST) for setup, diagnostics, and firmware checks.

• Inspect LED indicators during startup for immediate verification of communication and health status.

• Avoid contamination on Ethernet ports; use protective caps when cables are removed.

• Implement periodic firmware validation and system backups as part of scheduled maintenance routines.

---

G. Additional Information

The GE IS210MACCH2AEG is engineered for long-term stability, predictable performance, and high-fidelity communication across GE industrial systems. Its dependable design and compatibility within the Mark VIe architecture make it a cornerstone module for modernized and legacy power applications alike.
