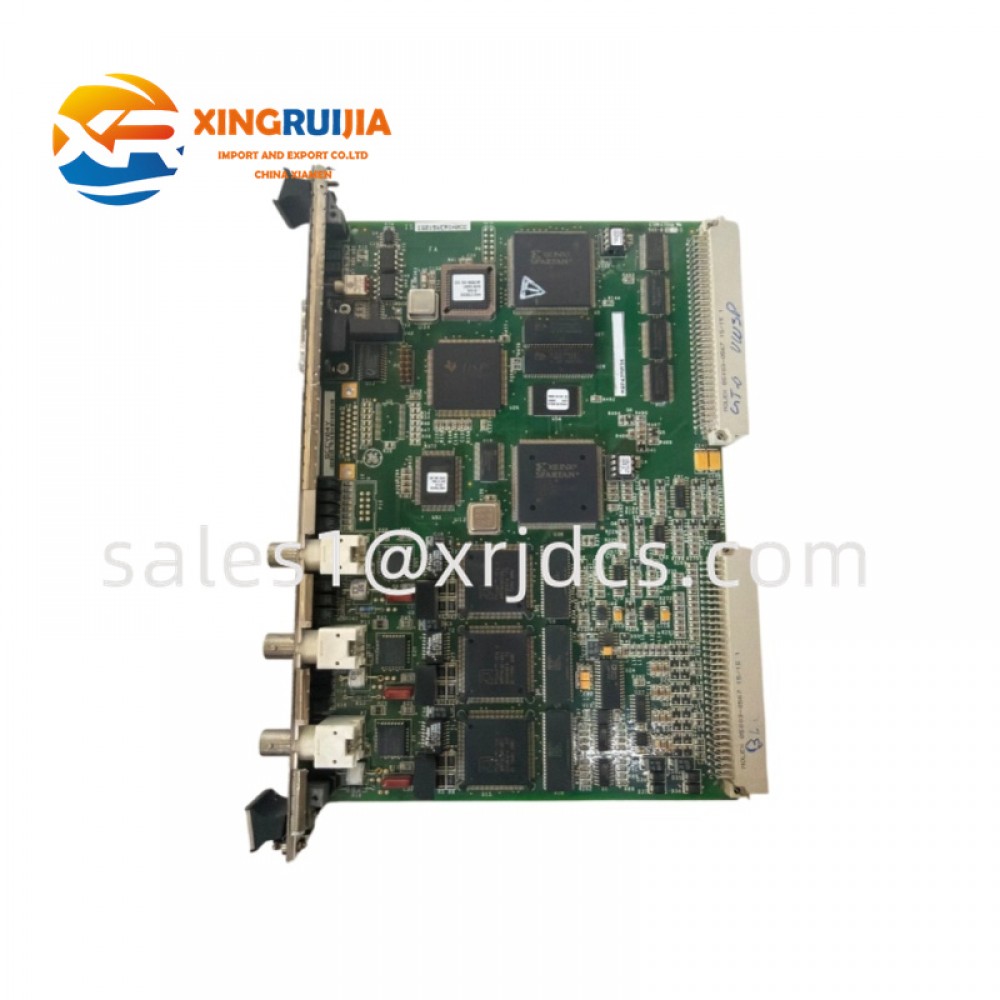

GE IS215VCMIH2CC

Product Overview

The GE IS215VCMIH2CC is a high-performance VME Communications Interface (VCMI) Bus Master Controller Board designed for the GE Mark VI Speedtronic turbine control system. It serves as a critical communication bridge between the main controller, I/O boards, and the GE IONet control network. The module manages data transmission, rack communication, and system identification functions to ensure reliable operation of turbine automation systems.

As an essential component of GE Mark VI control architecture, the IS215VCMIH2CC operates as the VME bus master within control and I/O racks. It coordinates communication between controller modules and I/O processors while managing board identification information and terminal board associations. This makes it a key element for maintaining fast and stable data exchange in gas turbine, steam turbine, and other industrial control applications.

The H2CC version belongs to the advanced VCMI family and supports multiple IONet communication channels, making it suitable for complex control configurations including simplex and triple modular redundant (TMR) systems.

---

Technical Specifications

Parameter	Description
Manufacturer	General Electric (GE)
Model Number	IS215VCMIH2CC
Product Type	VME Communications Interface / Bus Master Controller Board
Series	GE Mark VI Speedtronic
Board Type	6U VME Board
Processor	Texas Instruments TMS320C32 32-bit Digital Signal Processor
Memory	Dual-port memory, SRAM, Flash memory
Flash Memory	4096K x 8
Communication Interface	IONet, VME Bus, RS-232C
IONet Ports	3 × 10Base2 Ethernet ports
Serial Interface	1 × RS-232C serial port
Communication Speed	10 Mbps IONet
Power Supply Monitoring	+5 V, ±12 V, ±15 V, ±28 V monitoring
System Application	Mark VI turbine control systems
Mounting Method	VME rack installation

---

Functional Description

The main purpose of the GE IS215VCMIH2CC VCMI board is to provide high-speed communication management inside a GE Mark VI control system.

The board performs several important functions:

• Acts as the VME bus master for control and I/O racks
• Provides communication between the main controller and I/O boards
• Connects the control system with the IONet network
• Transfers process data between local and remote I/O racks
• Manages board identification and terminal board information
• Performs system power monitoring and diagnostic functions

In a Mark VI architecture, the VCMI module acts as the communication center that coordinates information flow between different system layers. It ensures that input data collected from field devices can be transferred efficiently to the controller for processing, while output commands are delivered accurately to connected equipment.

---

Main Features

Advanced VME Communication Architecture

The IS215VCMIH2CC uses the VME bus architecture to provide fast internal communication between control processors and I/O modules. This design allows multiple boards within the same rack to exchange data efficiently.

Powerful DSP-Based Processing

The board is equipped with a Texas Instruments TMS320C32 32-bit digital signal processor. The DSP provides dedicated processing capability for communication management, data transfer, and system coordination tasks.

Multi-Channel IONet Communication

The H2 version includes three IONet 10Base2 Ethernet communication ports. These ports support communication between control modules and remote I/O racks, providing flexible network configuration options for turbine control applications.

Support for Redundant Control Systems

The IS215VCMIH2CC is suitable for TMR (Triple Modular Redundant) system configurations. Multiple communication channels improve system availability and help maintain reliable turbine operation in safety-critical environments.

Integrated Diagnostic Monitoring

The module monitors internal power supply conditions, including +5 V, ±12 V, ±15 V, and ±28 V supply buses. Diagnostic information helps maintenance engineers identify abnormal conditions and improve troubleshooting efficiency.

---

Hardware Structure and Components

The GE IS215VCMIH2CC is composed of several functional hardware sections that work together to provide communication and control support.

Processor Section

The processor area contains the TMS320C32 DSP, which manages communication tasks, data processing, and system coordination. The dedicated processor reduces workload on the main controller and improves overall system efficiency.

Memory System

The board includes multiple memory components:

• Dual-port memory for communication data exchange
• SRAM for temporary data storage
• Flash memory for firmware and configuration storage

The large flash memory capacity allows the module to support complex system configurations and firmware requirements.

VME Interface

The VME backplane interface provides communication with other modules installed in the Mark VI rack. Through this interface, the VCMI exchanges information with controller boards and I/O modules.

IONet Communication Section

The front panel includes three IONet communication ports using 10Base2 Ethernet technology. These ports allow connection to distributed I/O racks and provide reliable system-wide communication.

Serial Communication Interface

The RS-232C serial port provides a connection interface for configuration, diagnostics, and engineering tools.

Diagnostic and Indicator Area

The front panel includes LED indicators for monitoring operating status, communication activity, and fault conditions. These indicators assist technicians during installation and maintenance.

---

Application Areas

Gas Turbine Control Systems

The primary application of the GE IS215VCMIH2CC is within GE Mark VI gas turbine control systems. It supports communication between turbine controllers, I/O modules, and field devices.

Typical applications include:

• Gas turbine automation
• Turbine protection systems
• Combustion control systems
• Generator control systems

Power Generation Facilities

Power plants rely on reliable communication between control modules and field equipment. The VCMI board helps maintain stable operation of turbine monitoring and control functions.

Industrial Energy Systems

The module is suitable for industrial facilities operating GE turbine-based equipment, including:

• Combined cycle power plants
• Mechanical drive systems
• Energy production facilities

Legacy GE Mark VI System Maintenance

Many industrial sites continue operating GE Mark VI platforms due to their reliability and long service life. The IS215VCMIH2CC is an important replacement component for maintaining existing control infrastructure.

---

Installation and Maintenance

Installation Guidelines

Before installing the GE IS215VCMIH2CC, technicians should ensure:

• The system power supply is disconnected
• The replacement module matches the existing hardware configuration
• VME rack slot connections are clean and secure
• IONet cables are correctly connected
• Anti-static protection procedures are followed

The board should be installed carefully into the designated VME rack position to prevent connector damage.

---

Maintenance Recommendations

For reliable long-term operation, recommended maintenance includes:

• Checking LED diagnostic indicators
• Inspecting VME connectors
• Verifying IONet communication status
• Checking cable conditions
• Reviewing system alarms and diagnostic records

Maintaining spare VCMI boards is beneficial for facilities operating continuous-process equipment because communication failures can directly affect turbine availability.

---

System Compatibility

The GE IS215VCMIH2CC is designed specifically for GE Mark VI Speedtronic turbine control systems. It works together with:

• Mark VI controller modules
• VME-based I/O boards
• Remote I/O racks
• Terminal boards
• GE IONet communication networks

Its modular design allows replacement within existing Mark VI installations without major modifications to the overall control architecture.

---

Product Summary

The GE IS215VCMIH2CC VCMI Bus Master Controller Board is a critical communication component for GE Mark VI turbine control systems. With powerful DSP processing, VME bus master capability, multi-channel IONet communication, and integrated diagnostics, it provides reliable data exchange between controllers and I/O systems.

————————————————————————————————————————————————————————————————————————
