GE IS215VPROH2BC

Product Overview

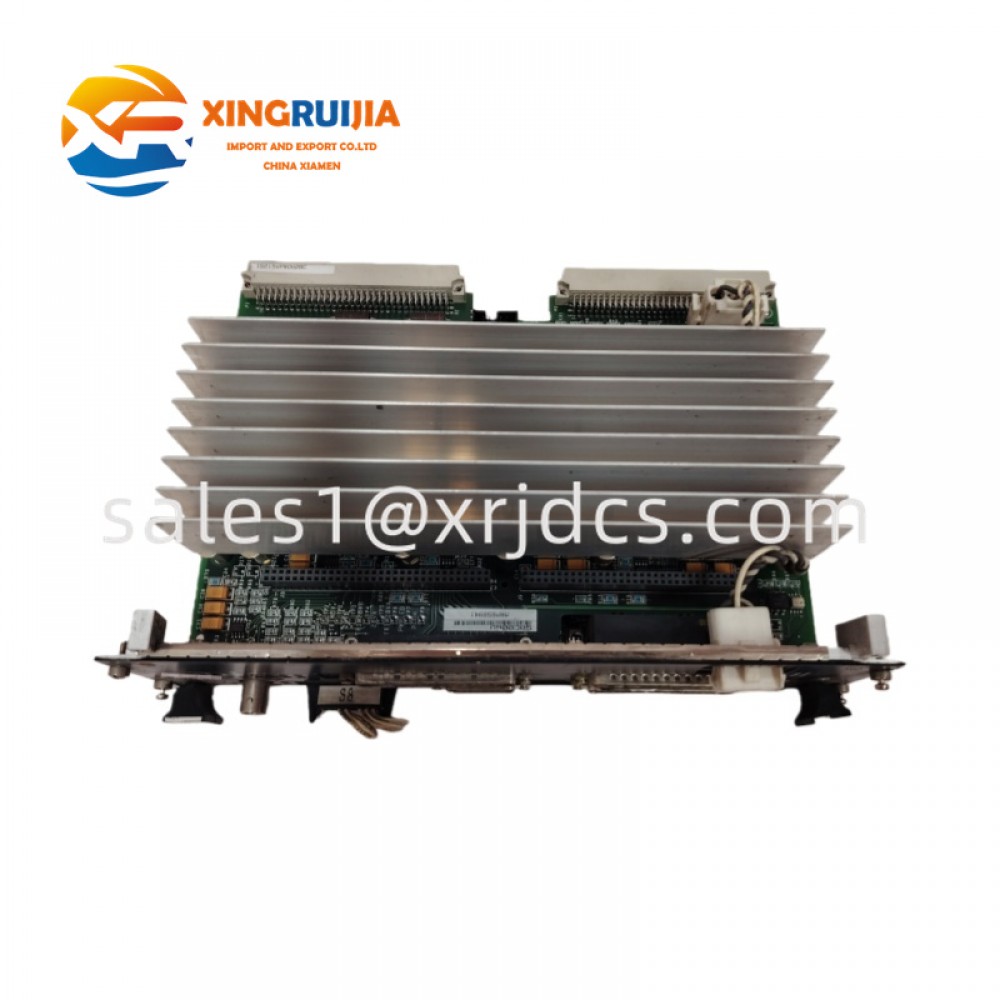

The GE IS215VPROH2BC Turbine Protection Board is a critical protection module designed for the GE Mark VI Speedtronic turbine control system. It functions as a VPRO (Virtual Protection) board, providing independent emergency turbine trip functions, overspeed protection, and safety monitoring for gas and steam turbine applications.

As part of the GE Mark VI turbine protection architecture, the IS215VPROH2BC works together with associated terminal boards such as TPRO and TREG to create an independent emergency protection system. The board is designed with a Triple Modular Redundancy (TMR) architecture, allowing three independent protection channels to operate together and provide high availability for mission-critical turbine operations.

The module is widely used in power generation plants, combined-cycle facilities, industrial turbine packages, and other applications where fast and reliable turbine shutdown protection is required.

---

Functional Description

The GE IS215VPROH2BC performs advanced turbine protection functions within the Mark VI control system.

Its main responsibilities include:

• Monitoring turbine speed signals
• Detecting overspeed conditions
• Executing emergency trip commands
• Controlling turbine trip solenoids through TREG interfaces
• Processing emergency stop signals
• Monitoring trip interlock conditions
• Providing independent protection from the main turbine control system

When abnormal turbine operating conditions are detected, the VPRO board can initiate a rapid shutdown sequence to prevent mechanical damage and improve overall equipment safety.

---

Technical Specifications

Parameter	Description
Manufacturer	General Electric (GE)
Model	IS215VPROH2BC
Product Type	Turbine Protection Board
Functional Acronym	VPRO
Series	GE Mark VI Speedtronic
Application	Emergency Turbine Protection / Overspeed Protection
Architecture	Simplex or Triple Modular Redundancy (TMR)
Power Supply	125 VDC
Communication Interface	Ethernet IONet communication
Input Function	Speed pickup, emergency stop, trip interlock signals
Output Function	Trip solenoid control
Maximum Frame Rate	Up to 100 Hz
MPU Input Sensitivity	Minimum 27 mV peak at 2 Hz
Solenoid Response Time	Approximately 0.1 seconds
Installation	GE Mark VI Protection Module

---

Core Features and Advantages

Independent Emergency Trip Protection

The IS215VPROH2BC provides a dedicated protection layer separate from the primary turbine control system. This independent design improves turbine safety by ensuring that emergency shutdown functions remain available even if the main control system experiences problems.

---

Triple Modular Redundancy Design

One of the most important characteristics of the VPRO architecture is its redundant protection structure.

The TMR design includes three independent processing channels:

• X channel
• Y channel
• Z channel

Each channel independently processes protection signals, and voting logic determines the final trip decision.

Benefits include:

• Elimination of single-point failures
• Improved system availability
• Continuous operation during channel faults
• Enhanced turbine protection reliability

---

High-Speed Overspeed Detection

The board is optimized for fast response applications where turbine speed monitoring is essential.

Typical protection functions include:

• Overspeed detection
• Emergency stop processing
• Trip signal management
• Speed pickup monitoring

The fast response capability allows the system to quickly activate trip mechanisms when dangerous operating conditions occur.

---

Hardware Structure and Components

The IS215VPROH2BC integrates multiple functional sections to support reliable turbine protection.

Processor and Logic Section

The processing unit executes protection algorithms and manages safety-related decision logic.

Functions include:

• Speed signal evaluation
• Protection calculations
• Trip logic execution
• Diagnostic processing

---

Speed Input Interface

The board receives signals from turbine speed sensors and processes them for overspeed monitoring.

Typical inputs include:

• Magnetic pickup signals
• Speed measurement signals
• Protection-related feedback signals

---

Trip Output Interface

The VPRO board communicates with TREG terminal boards to control turbine trip solenoids.

The trip output system provides:

• Emergency shutdown commands
• Solenoid driver control
• Redundant trip paths

---

Communication Interface

The module supports Ethernet-based communication with other GE Mark VI control components through IONet.

This enables:

• System diagnostics
• Status monitoring
• Data exchange with control modules

---

Diagnostic System

Integrated diagnostics continuously monitor:

• Board health
• Communication status
• Processor operation
• Input signal quality
• Protection channel status

These functions help maintenance personnel quickly identify potential problems.

---

Application Fields

The GE IS215VPROH2BC is mainly applied in turbine protection systems across multiple industries.

Power Generation

Typical applications:

• Gas turbine generators
• Steam turbine systems
• Combined-cycle power plants
• Independent power production facilities

---

Oil and Gas Industry

Used for:

• Compressor drive turbines
• Gas transmission stations
• Offshore platforms
• Mechanical drive protection

---

Petrochemical Plants

Applications include:

• Process turbine protection
• Refinery equipment protection
• Critical rotating machinery safety

---

Industrial Energy Systems

Suitable for:

• Large industrial turbines
• Cogeneration systems
• Utility-scale rotating equipment

---

Installation and Maintenance

Installation Guidelines

Before installing the IS215VPROH2BC, ensure:

• Compatibility with the GE Mark VI system
• Correct protection module configuration
• Proper power isolation before replacement
• Correct terminal board connections
• Proper anti-static handling procedures

After installation, verify:

• Board status indicators
• Communication status
• Trip system diagnostics
• Protection channel operation

---

Maintenance Recommendations

Regular maintenance improves system reliability.

Recommended activities:

• Check diagnostic alarms periodically
• Inspect connectors and wiring
• Verify speed sensor connections
• Monitor trip circuit performance
• Maintain clean and dry cabinet conditions
• Perform scheduled protection system testing

The modular design allows efficient replacement and reduces turbine downtime during maintenance operations.

————————————————————————————————————————————————————————————————————————
