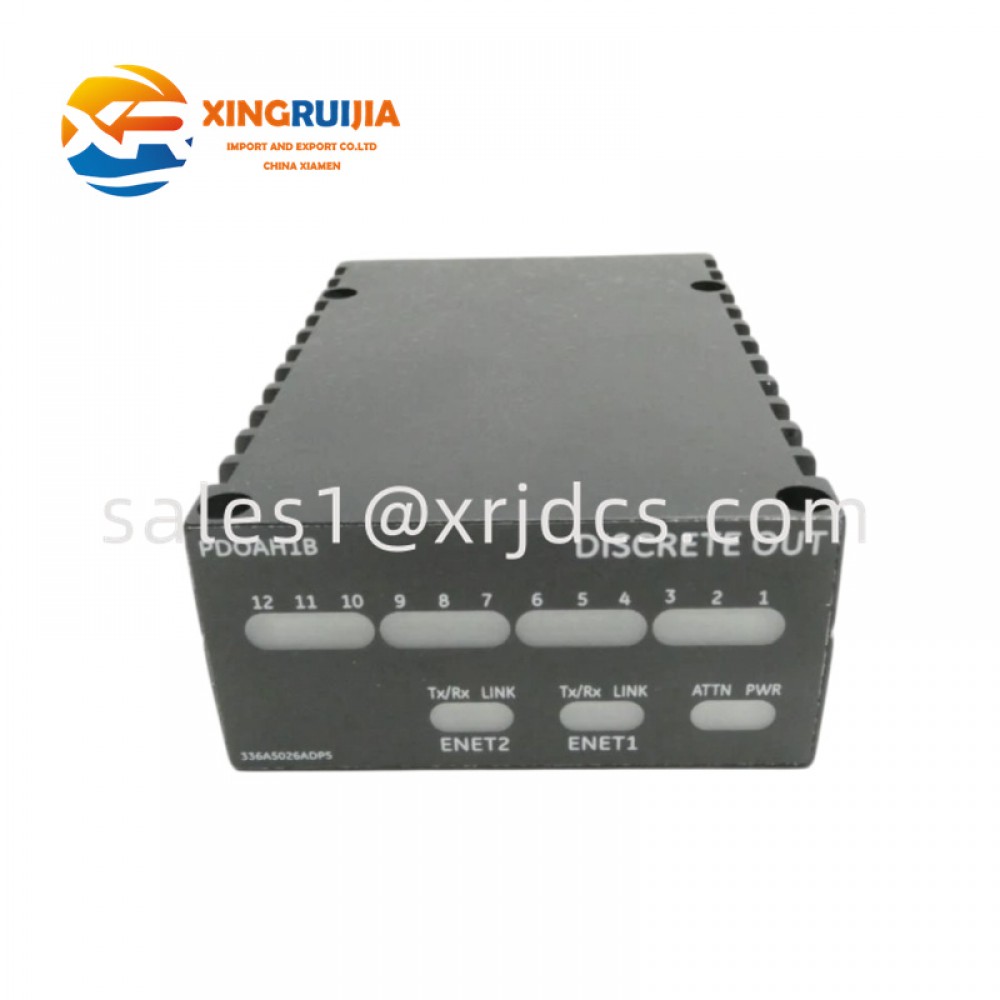

GE IS220PDOAH1B

Product Overview

The General Electric IS220PDOAH1B is a Mark VIe / Mark VIeS discrete output I/O pack module designed for industrial turbine control and high-reliability automation systems.

It is used to convert control commands from the Mark VIe controller into electrical switching signals that drive field devices such as solenoids, relays, valves, alarms, and motor starters. The module plays a key role in ensuring precise and safe execution of control actions in power generation and industrial process systems.

---

System Role and Function

The IS220PDOAH1B acts as an interface between the control network and field-level output devices.

Core Functions

• Discrete signal output control (ON/OFF switching)
• Communication with Mark VIe distributed I/O network
• Driving industrial actuators (relays, valves, contactors)
• Execution of turbine control commands
• Real-time output status feedback to controller

It is a critical component in GE Speedtronic turbine control architectures.

---

Key Features

High-Density Output Capability

Supports multiple isolated digital output channels for efficient control of field devices in compact system architectures.

Industrial Ethernet-Based Architecture

Integrates into the Mark VIe I/O network using Ethernet-based communication for fast and reliable data exchange.

Robust Protection Design

Includes electrical isolation, short-circuit protection, and fault monitoring functions to ensure safe operation in harsh environments.

Redundant System Compatibility

Designed for use in redundant and high-availability control systems, including TMR (Triple Modular Redundant) architectures.

Hot-Swap Capability

In compatible racks, the module can be replaced without shutting down the entire control system, improving maintainability.

---

Technical Specifications

Parameter	Description
Manufacturer	General Electric
Model	IS220PDOAH1B
System Series	Mark VIe / Mark VIeS
Product Type	Discrete Output I/O Pack
Output Function	Digital ON/OFF control
Channels	Multi-channel (system-dependent configuration)
Output Voltage	24–28 VDC field level
Communication	Ethernet-based I/O network
Protection	Electrical isolation & fault detection
Installation	Control cabinet / turbine I/O rack
Operating Environment	Industrial power generation systems
Duty Cycle	Continuous 24/7 operation

---

Internal Structure and Design

The IS220PDOAH1B is composed of two main electronic sections working together:

• Processor board: Handles communication and control logic
• Acquisition/output board: Executes discrete output switching functions

Additional internal elements include:

• Output driver circuits
• Isolation barriers
• Diagnostic monitoring circuitry
• Power regulation modules
• Ethernet communication interface

This architecture ensures stable, fast, and reliable output control in mission-critical systems.

---

Application Areas

The GE IS220PDOAH1B is widely used in industries requiring precise and reliable switching control:

• Gas turbine power plants
• Steam turbine control systems
• Combined cycle power generation
• Oil and gas processing facilities
• Petrochemical plants
• Industrial automation systems
• Compressor and pump control systems

Its robustness makes it especially suitable for critical infrastructure with strict uptime requirements.

---

Installation Guidelines

To ensure safe and stable operation:

• Install in GE Mark VIe compatible I/O racks
• Ensure correct alignment with terminal boards
• Maintain proper grounding and shielding against EMI
• Verify correct 24–28V DC supply conditions
• Follow GE configuration and commissioning procedures

Proper installation is essential for output accuracy and system safety.

---

Maintenance Recommendations

Routine maintenance improves reliability and reduces downtime:

• Inspect module seating and connectors
• Monitor LED status indicators (power, link, faults)
• Clean control cabinet ventilation areas
• Verify communication integrity with controller
• Test output response during scheduled shutdowns

Preventive maintenance is especially important in continuous turbine operations.

---

Operational Advantages

Compared with conventional PLC output modules, the IS220PDOAH1B provides:

• Higher system reliability for turbine applications
• Fast Ethernet-based communication
• Strong fault detection and diagnostics
• Hot-swap maintainability (system dependent)
• Industrial-grade protection and isolation
• Compatibility with redundant control architectures

These features make it a core component in modern GE turbine control systems.

---

Conclusion

The General Electric IS220PDOAH1B is a high-reliability discrete output I/O pack module designed for Mark VIe turbine control systems. With its robust industrial design, Ethernet-based communication, and precise output control capability, it ensures safe, stable, and efficient operation in demanding power generation and industrial automation environments.
