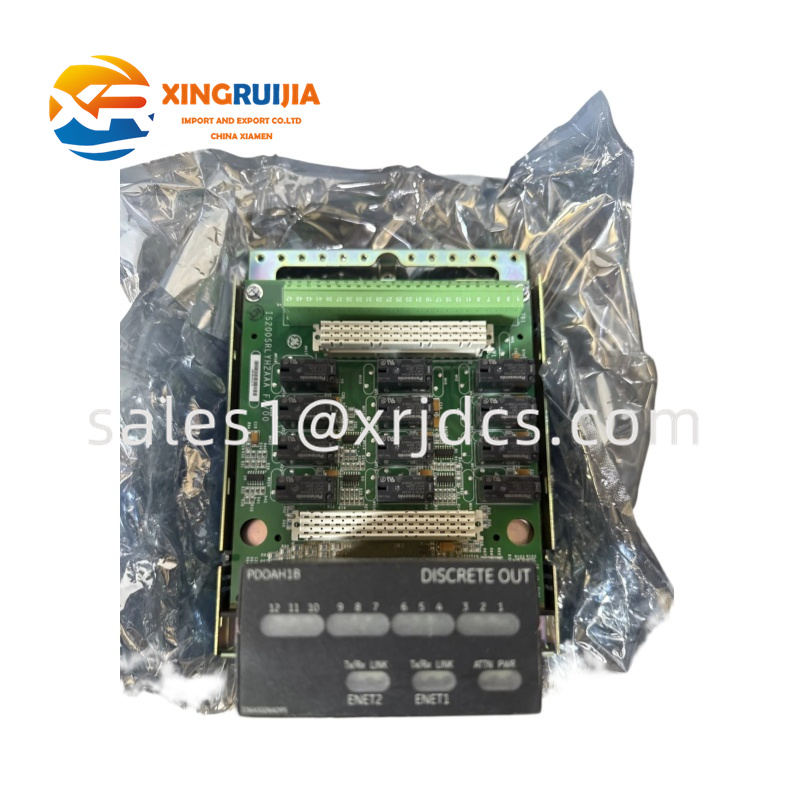

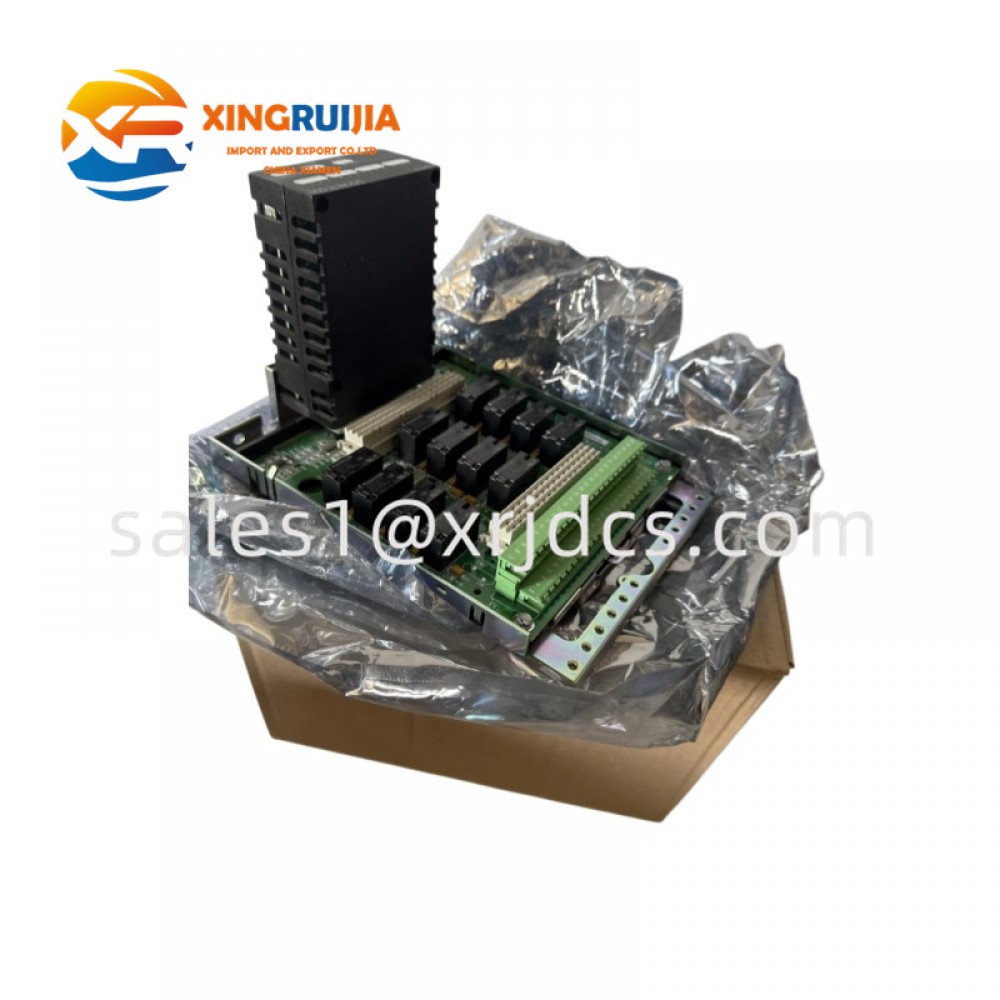

GE IS220PDOAH1BC IS230SNRLH2A IS200SRLYH2AAA

Product Overview

The GE IS220PDOAH1BC IS230SNRLH2A IS200SRLYH2AAA is a high-performance Discrete Output Control Module Assembly designed for GE Mark VIe turbine control systems. This module combination is widely used in industrial automation applications requiring reliable digital output control, especially in gas turbine, steam turbine, and critical process control systems. The module assembly provides the interface between the turbine control system and external field devices, enabling accurate switching and control of actuators, relays, valves, and other discrete devices.

The GE Mark VIe platform is one of GE’s advanced turbine control solutions, designed to provide high availability, fast processing, and flexible system integration. The IS220PDOAH1BC pack works together with terminal board assemblies such as IS230SNRLH2A and IS200SRLYH2AAA to complete discrete output signal management.

This module combination is especially important in applications where precise switching operations and reliable field control are required. It helps turbine operators maintain stable equipment operation by providing dependable communication between the control processor and external electrical devices.

---

Technical Specifications

Parameter	Description
Manufacturer	General Electric (GE)
Product Series	Mark VIe Control System
Models	IS220PDOAH1BC / IS230SNRLH2A / IS200SRLYH2AAA
Product Type	Discrete Output Module Assembly
Main Function	Digital output signal control
Application	Turbine control and industrial automation
Output Type	Relay / discrete output interface
Rated Voltage	24 VDC / 48 VDC / 125 VDC (depending on configuration)
Maximum Current	Up to 5 A (configuration dependent)
Communication Interface	Mark VIe I/O network interface
Installation Method	Control cabinet mounting
Diagnostic Function	Integrated module status monitoring
System Compatibility	GE Mark VIe turbine control platform

---

Functional Description

The main purpose of the GE IS220PDOAH1BC discrete output module is to convert digital control commands from the turbine controller into electrical output signals for field devices.

In a typical GE turbine control architecture, the main controller executes application logic and sends output commands through the I/O network. The IS220PDOAH1BC receives these commands, processes them internally, and drives connected field devices through the terminal board and relay interface.

The module is responsible for functions such as:

• Digital output signal processing
• Field device switching control
• Relay operation management
• Equipment start/stop commands
• Alarm and status output control

The IS230SNRLH2A and IS200SRLYH2AAA terminal components provide the necessary electrical connection and signal routing between the control module and field wiring. Together, these components form a complete discrete output control solution for GE turbine systems.

---

Hardware Structure and System Composition

IS220PDOAH1BC I/O Pack

The IS220PDOAH1BC is the intelligent I/O pack responsible for communication and output signal processing.

Its main functions include:

• Receiving commands from the Mark VIe controller
• Processing output signals
• Monitoring module operation
• Performing internal diagnostics
• Communicating system status information

The I/O pack design allows fast data exchange with the turbine control network while maintaining reliable field signal control.

---

IS230SNRLH2A Terminal Board

The IS230SNRLH2A is a terminal board used to connect field wiring with the Mark VIe control system.

The terminal board provides:

• Field signal termination
• Electrical connection points
• Signal distribution
• Simplified maintenance access

Its design allows engineers to easily connect external devices such as solenoid valves, relays, and control circuits.

---

IS200SRLYH2AAA Relay Output Board

The IS200SRLYH2AAA provides relay-based switching capability for discrete output applications.

Relay output technology offers advantages such as:

• Electrical isolation
• Reliable switching performance
• Compatibility with various field loads
• Improved protection between control electronics and external circuits

This makes the board suitable for industrial environments where output reliability is critical.

---

Key Features and Advantages

Reliable Discrete Output Control

The GE IS220PDOAH1BC assembly provides accurate and dependable digital output control for industrial equipment.

It can control:

• Valves
• Contactors
• Solenoids
• Motors
• Alarm devices
• Auxiliary equipment

Reliable output switching helps ensure smooth turbine operation and effective process management.

---

Designed for GE Mark VIe Systems

This module assembly is specifically developed for GE Mark VIe turbine control platforms.

The Mark VIe system architecture provides:

• High-speed communication
• Modular configuration
• Advanced diagnostics
• Flexible expansion capability

The IS220PDOAH1BC integrates seamlessly into existing Mark VIe installations, making it suitable for replacement and maintenance projects.

---

Advanced Diagnostic Capability

The module includes diagnostic functions that help engineers monitor system health and identify potential issues.

Diagnostic features may include:

• Module communication status
• Output channel monitoring
• Fault detection
• Hardware status indication

These functions reduce troubleshooting time and improve maintenance efficiency.

---

High Reliability for Critical Applications

Industrial turbine systems often operate continuously for long periods. The GE discrete output module assembly is designed to provide stable performance in demanding environments.

Benefits include:

• Reduced downtime
• Improved equipment availability
• Reliable field control
• Long service life

---

Application Fields

Gas Turbine Control Systems

The IS220PDOAH1BC is commonly used in GE gas turbine control applications.

Typical functions include:

• Fuel system control
• Valve operation
• Auxiliary equipment control
• Turbine protection logic execution

Reliable discrete output control is essential for safe turbine operation.

---

Steam Power Generation

Steam turbine systems require accurate control of many electrical and mechanical devices.

Applications include:

• Valve control
• Generator auxiliary systems
• Protection outputs
• Equipment sequencing

The GE module assembly provides dependable switching performance for these applications.

---

Combined Cycle Power Plants

Combined cycle plants contain complex automation systems that require coordinated control between multiple subsystems.

The module supports:

• Gas turbine systems
• Steam turbine systems
• Balance-of-plant equipment
• Safety-related control functions

---

Industrial Process Automation

Beyond power generation, GE Mark VIe-based components are also used in industrial automation applications.

Possible applications include:

• Compressor control
• Large rotating machinery
• Process equipment control
• Industrial electrical systems

---

Installation and Maintenance

Installation Requirements

Before installing the GE IS220PDOAH1BC, IS230SNRLH2A, and IS200SRLYH2AAA assembly, technicians should confirm:

• Correct Mark VIe system compatibility
• Proper cabinet mounting location
• Correct terminal wiring
• Appropriate power supply conditions
• Secure communication connections

The installation should follow GE turbine control system guidelines to ensure reliable operation.

---

Maintenance Recommendations

Regular inspection helps maintain long-term module performance.

Recommended maintenance activities include:

• Checking module LED indicators
• Inspecting terminal connections
• Verifying output channel operation
• Reviewing diagnostic information
• Checking cabinet environmental conditions

When replacing the module, technicians should verify configuration settings and ensure compatibility with the existing control application.

---

Product Value and Supply Information

The GE IS220PDOAH1BC IS230SNRLH2A IS200SRLYH2AAA Discrete Output Module Assembly is an important component for GE Mark VIe turbine control systems. Its reliable digital output capability, modular structure, and compatibility with GE turbine automation platforms make it a valuable spare part for power plants and industrial facilities.

This module combination helps customers maintain existing GE control systems, reduce equipment downtime, and extend the service life of critical automation infrastructure.
