GE IS220PIOAH1A

Product Overview

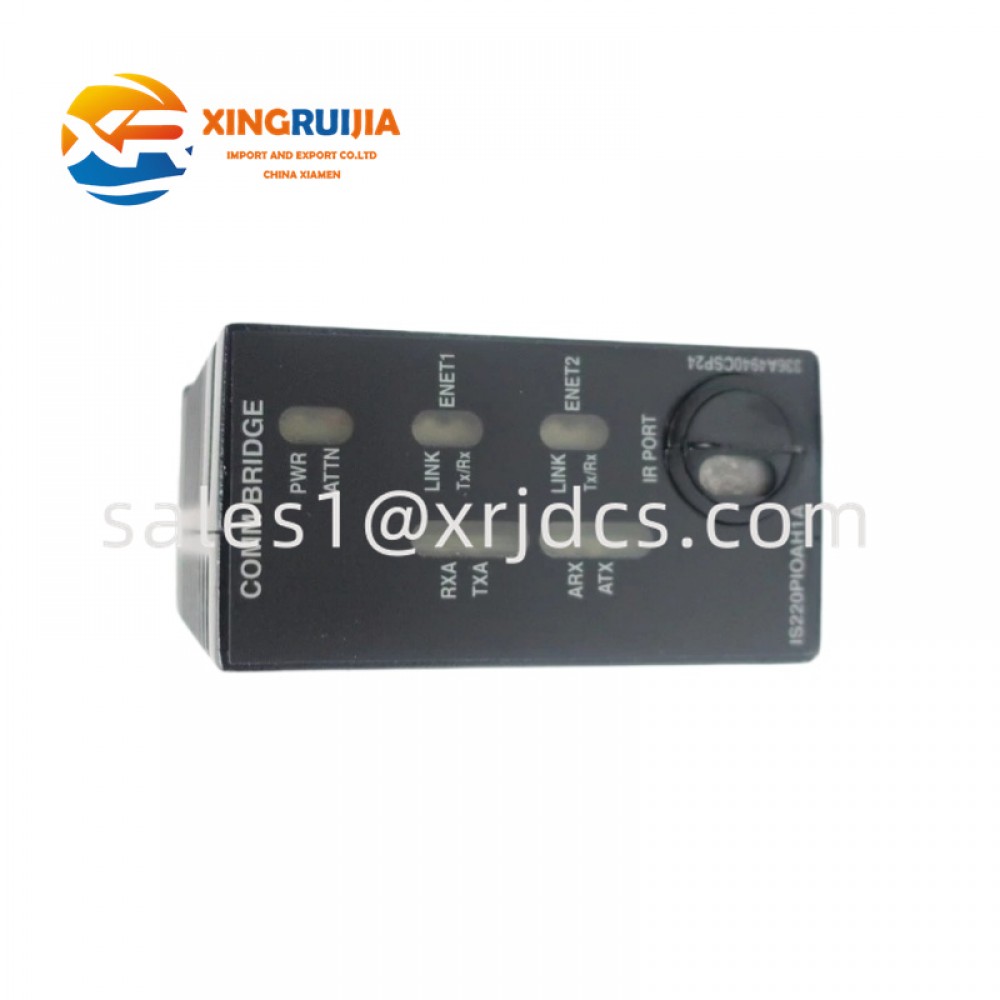

The GE IS220PIOAH1A is an advanced ARCNET Interface I/O Pack developed for the GE Mark VIe Speedtronic Turbine Control System. Designed specifically for excitation and turbine control applications, this module acts as a communication bridge between the control processor and associated terminal boards, enabling high-speed data exchange and reliable system coordination. It is commonly deployed in gas turbines, steam turbines, and power generation facilities where dependable real-time control is essential.

Unlike standard discrete I/O modules, the IS220PIOAH1A is dedicated to ARCNET-based excitation control communications and is engineered to support the demanding operational requirements of industrial turbine control systems.

---

Why Choose the IS220PIOAH1A?

Modern turbine control systems require reliable communication between distributed control components. The IS220PIOAH1A provides:

• High-speed ARCNET communication
• Seamless integration with GE Mark VIe systems
• Reliable excitation control interface
• Industrial-grade diagnostics and monitoring
• Simplified maintenance and replacement
• Robust operation in harsh environments
• Support for redundant control architectures

These capabilities help improve overall system availability and operational efficiency.

---

Technical Specifications

General Information

Parameter	Specification
Manufacturer	General Electric (GE)
Model Number	IS220PIOAH1A
Product Type	ARCNET Interface I/O Pack
Functional Acronym	PIOA
Series	Mark VIe / Mark VI Speedtronic
Communication Interface	ARCNET
Ethernet Ports	Dual RJ45 10/100 Mbps
Power Supply	28 VDC (Typical)
Processor	32-bit RISC CPU
Operating System	QNX Real-Time OS
Operating Temperature	-30°C to +65°C
Diagnostic Interface	Infrared (IR) Port
Status Indicators	LED Diagnostics
Country of Origin	USA

---

System Architecture

The IS220PIOAH1A incorporates multiple hardware elements designed for mission-critical turbine control:

• Embedded processor board
• Dedicated communication circuitry
• Dual Ethernet network interfaces
• Power management subsystem
• Temperature monitoring sensor
• Infrared diagnostic transceiver
• Industrial-grade protective enclosure
• LED status indication system

The module mounts directly to the associated JPDV terminal board through a dedicated connector arrangement, ensuring secure communication and simplified installation.

---

Operational Function

Within the Mark VIe architecture, the IS220PIOAH1A performs several critical tasks:

Data Acquisition and Processing

The module digitizes incoming signals and processes communication data before transmitting information to the main controller.

Excitation Control Interface

It provides the ARCNET communication path required for generator excitation control systems, ensuring stable voltage regulation and coordinated turbine operation.

Controller Communication

The onboard processor exchanges information with higher-level control processors, enabling real-time decision-making and control execution.

---

Key Features

Dual Ethernet Connectivity

The module includes two Ethernet ports, supporting flexible network configurations and improved communication reliability.

Integrated Diagnostics

Built-in LEDs provide immediate status indication for:

• Power condition
• Network activity
• Communication status
• System attention alarms

This helps maintenance personnel quickly identify operational issues.

Infrared Service Port

A front-panel infrared transceiver allows:

• Low-level diagnostics
• Device configuration
• Host name assignment
• Function setup
• Maintenance troubleshooting

This feature simplifies commissioning and service operations.

Environmental Monitoring

An onboard temperature sensor continuously monitors operating conditions and can generate alarms if excessive temperatures are detected.

---

Typical Applications

The IS220PIOAH1A is commonly installed in:

Power Generation Facilities

• Gas turbine control systems
• Steam turbine control systems
• Combined-cycle power plants
• Generator excitation systems

Industrial Energy Systems

• Utility power stations
• Industrial cogeneration facilities
• Process power generation plants
• Energy management infrastructures

Turbine Modernization Projects

• Mark VI upgrades
• Mark VIe retrofit programs
• Excitation system modernization
• Legacy turbine control support

---

Installation Considerations

For reliable performance:

1. Mount the module directly onto the designated JPDV terminal board.
2. Secure all connectors according to manufacturer specifications.
3. Connect Ethernet communication cables properly.
4. Verify 28 VDC power supply availability.
5. Configure network and functional parameters during commissioning.
6. Perform communication testing before startup.

Proper installation ensures stable operation and long-term reliability.

---

Maintenance Recommendations

Routine maintenance should include:

• Inspection of Ethernet connections
• Verification of LED diagnostic status
• Temperature monitoring review
• Cleaning of ventilation openings
• Communication performance checks
• Backup of configuration settings
• Functional testing during scheduled outages

The module's design allows replacement without disturbing field wiring, reducing maintenance downtime.

---

Advantages for Turbine Control Systems

Implementing the GE IS220PIOAH1A provides several operational benefits:

• Enhanced communication reliability
• Improved excitation system performance
• Faster diagnostic capabilities
• Reduced maintenance requirements
• Increased turbine availability
• Support for redundant architectures
• High-speed real-time data exchange
• Long-term industrial durability

These advantages make the module a critical component in modern turbine automation systems.

---

Conclusion

The GE IS220PIOAH1A ARCNET Interface I/O Pack is a specialized communication module engineered for the GE Mark VIe Speedtronic Turbine Control Platform. Combining advanced processing capabilities, dual Ethernet connectivity, integrated diagnostics, and robust industrial construction, it delivers reliable ARCNET communication for excitation and turbine control applications. Its proven performance in power generation environments makes it an essential solution for maintaining efficient, safe, and dependable turbine operations.
