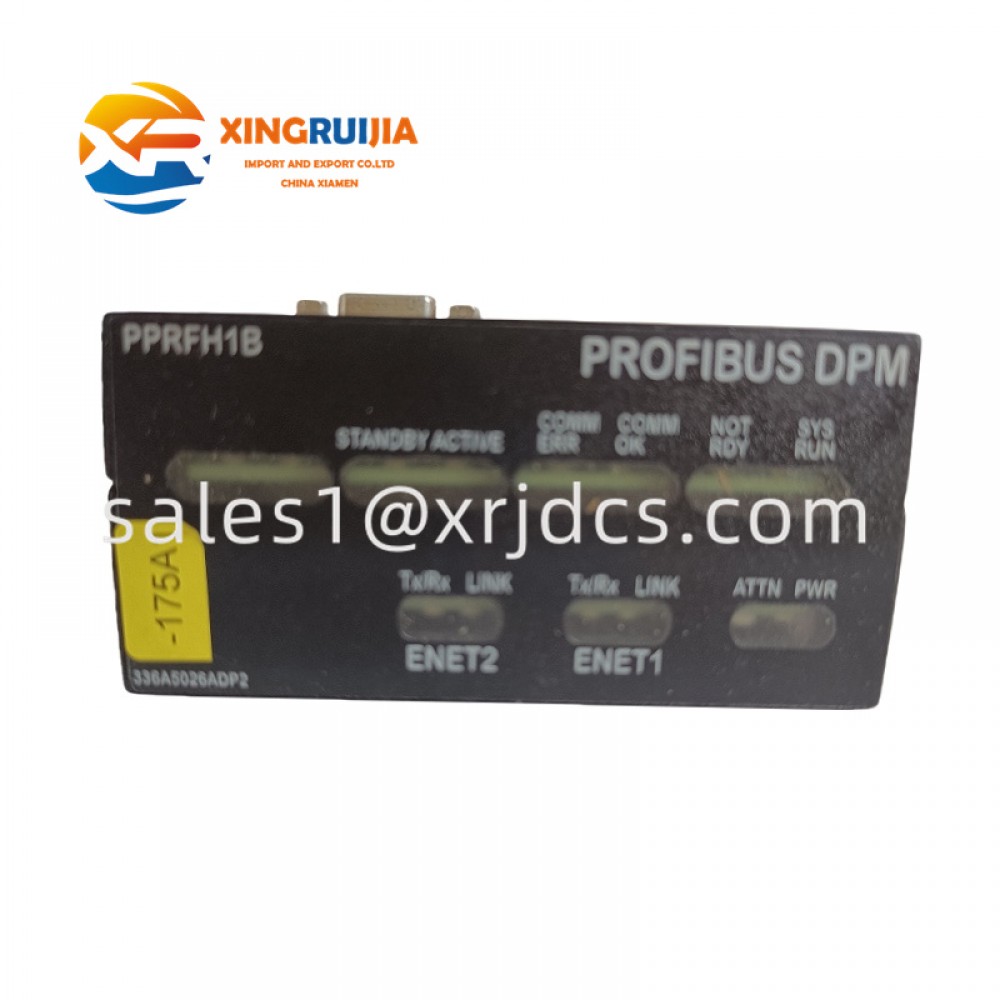

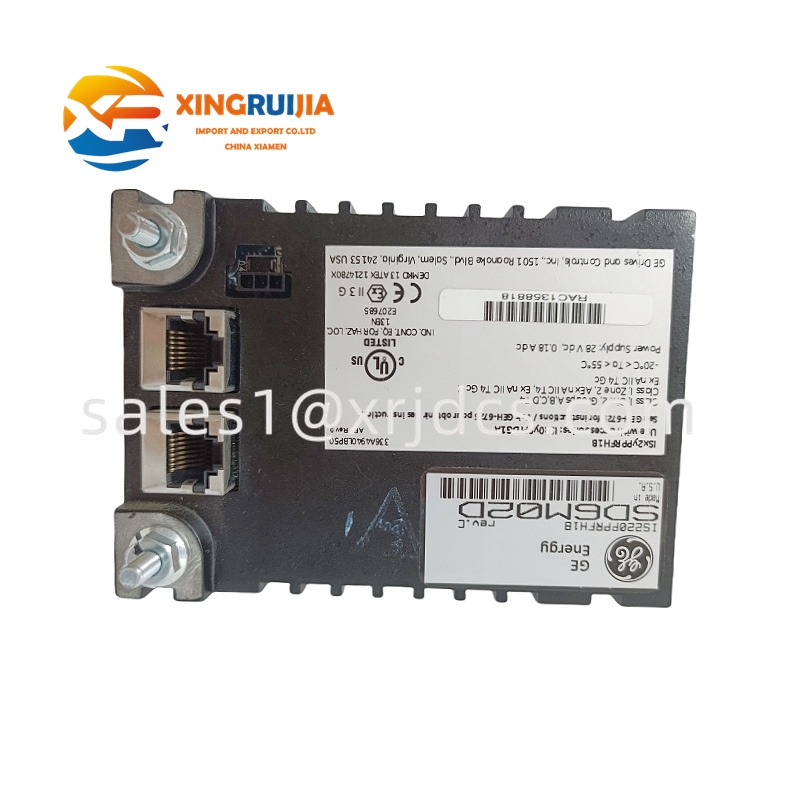

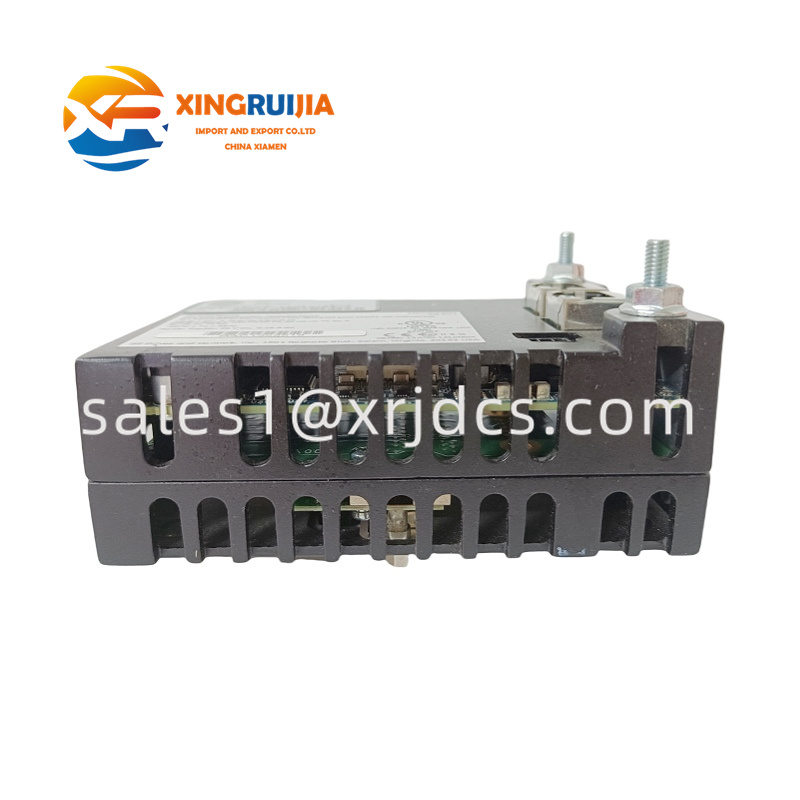

GE IS220PPRFH1B – Profinet Communication Module for Mark VIe Control Systems

Applications

The GE IS220PPRFH1B module plays a critical role in industrial automation and turbine control systems, specifically within the Mark VIe control platform. It provides high-speed Profinet (PROFIBUS over Ethernet) communication between controllers and field devices, enabling efficient, synchronized data transfer.
Typical applications include:

• Gas and steam turbine control systems

• Process automation and distributed control networks

• Power generation and energy management systems

• Factory automation and machine communication

• SCADA and industrial Ethernet architectures

---

Overview

The IS220PPRFH1B Profinet Module by GE Energy is designed to serve as a Profinet interface between the Mark VIe controller and external field I/O devices. It provides seamless integration, supporting both cyclic and acyclic communication modes. The device enhances the reliability of data exchange and improves synchronization in mission-critical applications. Built for industrial-grade performance, it ensures minimal downtime, efficient diagnostics, and secure data transmission in demanding environments.

---

Key Features

• Advanced Profinet Communication: Supports Profinet RT (Real-Time) communication for deterministic data exchange.

• Dual Ethernet Ports: Enables network redundancy through ring or daisy-chain topologies.

• High Reliability: Designed to maintain stable operation in electrically noisy and high-temperature environments.

• Plug-and-Play Integration: Simple configuration with Mark VIe controllers and I/O packs.

• Comprehensive Diagnostics: Provides real-time network status, error detection, and maintenance data.

• Firmware Upgrade Support: Allows field updates to ensure compatibility with the latest Mark VIe software.

---

Technical Specifications

• Product Model: IS220PPRFH1B

• Communication Protocol: Profinet RT

• Network Interface: Dual RJ-45 Ethernet Ports (100 Mbps)

• Power Supply: 28V DC (Nominal)

• Operating Temperature: -40°C to +70°C

• Mounting Type: DIN Rail or Panel Mount via Mark VIe I/O Rack

• Configuration: Auto-addressing and hot-swap compatible

• Status Indication: LED indicators for power, link, and activity




---

Structure & Composition

The module consists of a main communication board, integrated Ethernet transceivers, and a diagnostic interface. It mounts directly onto the Mark VIe I/O carrier and interfaces with the system’s backplane. The dual Ethernet design allows for redundant network setups, ensuring continued operation even in the event of a communication path failure.

---

Installation & Maintenance

1. Installation – Mount the module on the designated I/O carrier within the Mark VIe system. Connect the Ethernet cables to the RJ-45 ports, ensuring correct network topology (ring or line).

2. Configuration – Use GE ToolboxST software to assign network addresses and validate communication.

3. Maintenance – The IS220PPRFH1B requires minimal upkeep. Periodic inspection of connectors and firmware updates ensures continuous, optimized performance.

4. Diagnostics – Onboard LEDs provide quick visual status for troubleshooting without system shutdown.




---

Advantages

• Ensures deterministic and secure data exchange between Mark VIe and field devices

• Redundant Ethernet design enhances system uptime

• Field-replaceable and hot-swappable for quick maintenance

• Backed by GE’s long-term industrial support and firmware updates

---

Conclusion

The GE IS220PPRFH1B is an essential communication component for Mark VIe-based industrial control systems, offering reliability, speed, and advanced Profinet capabilities. Its rugged design, redundant architecture, and simple integration make it a trusted choice for operators seeking efficiency and stability in automation and power generation environments.
