Introduction

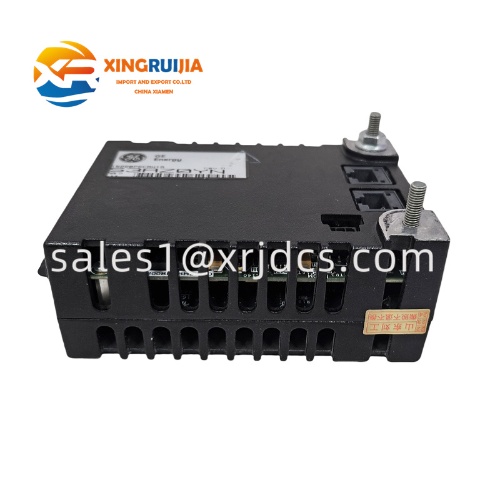

The GE IS220PSCAH1A (also referenced as 336A4940CSP9) is a highly specialized I/O communication module designed for the GE Mark VIe / VIeS control system. Serving as a serial Modbus master interface, this module enables legacy and modern field devices (meters, sensors, PLCs) to communicate seamlessly with GE’s turbine and balance-of-plant automation networks. With six configurable serial channels and dual Ethernet ports, the IS220PSCAH1A offers flexibility, reliability, and diagnostic capabilities critical for industrial environments.

In this article, we dive into its specifications, architecture, use cases, installation guidance, and why it remains relevant in high-availability power systems.

Architecture & Functional Design

Serial + Ethernet Hybrid Interface

One of the standout design features of the IS220PSCAH1A is its hybrid communication capability:

• Serial Communication: With 6 individually configurable serial transceivers, each port can be set for RS-232, RS-422, or RS-485. This allows the module to connect to a wide variety of Modbus-enabled field devices — from legacy sensors to modern instruments.

• Ethernet Communication: The module also has dual RJ-45 Ethernet ports, which support Modbus over IP (Ethernet Modbus Master) in a “simplex” configuration per GE documentation.

• This dual-interface architecture allows a control system to act as a Modbus master over both serial lines and Ethernet, greatly expanding compatibility.

Modbus Master Functionality

The IS220PSCAH1A functions as a Modbus Master:

• Each serial channel is individually configurable (baud rate, parity, data bits, address) to interface with different slave devices.

• It supports station addresses and custom word ordering, enabling communication with devices running different Modbus configurations.

• On the Ethernet side, the module supports a Modbus Master service over IP, though with some limitations (e.g., only simplex network for Ethernet in certain configurations).

Diagnostics and Monitoring

Reliability and early fault detection are integral:

• The module includes self-diagnostic testing, monitoring both internal health and external signals.

• It can monitor analog inputs (such as position or pressure) and detect when they cross configurable high/low thresholds, triggering alarms.

• Defined alarm codes (e.g., 32–67, 72–107, 108–113, 114–119) correspond to specific status or failure modes, helping with troubleshooting.

Installation & Commissioning Guidance

Here are some practical engineering recommendations for deploying the IS220PSCAH1A in a control system:

1. Terminal Board Compatibility

   • According to GE’s certificate, this module is intended to be used with terminal boards like IS200SSCAH1A or IS200SSCAH2A.

   • Ensure correct terminal board type is selected to match wiring and I/O pack layout.

2. Power Supply

   • Supply the module with 24 V (nominal), up to 28 V DC as required.

   • Use a stable and appropriately rated DC power source to support the PSCA pack.

3. Serial Port Wiring

   • Configure each of the 6 serial ports for the correct communication standard (RS-232 / RS-422 / RS-485).

   • Ensure signal cable quality: twisted-pair, proper shielding, and termination (especially for RS-485) to guarantee signal integrity.

4. Ethernet Integration

   • Use the dual RJ-45 ports for network connectivity. Configure for Modbus over IP if needed in your architecture.

   • Consider network redundancy or proper switch infrastructure to avoid single points of failure.

5. Configuration

   • Use GE’s ToolboxST or appropriate software to configure the module: serial parameters, station addresses, word order, and diagnostics.

   • Set up alarm thresholds for analog inputs (if used) and configure how alarms are handled (latching, non-latching, auto-clearing, etc.).

6. Testing & Validation

   • After installation, perform communication tests on each serial channel with the intended slave devices. Simulate errors (e.g., disconnect, bad parity) to validate diagnostic behavior.

   • Test Ethernet Modbus master functionality if configured, and verify data polling, update times, and network reliability.

7. Maintenance & Monitoring

   • Monitor the module’s health and alarms via your control system. Use the self-diagnostic capabilities to detect early signs of communication issues.

   • Periodically inspect physical connections (serial port wiring, Ethernet, power input) for wear.

   • If you have an inventory of spare PSCA modules, label and store them properly for quick hot-swap in critical systems.

Advantages & Why Engineers Choose IS220PSCAH1A

• Legacy Device Support: Enables seamless integration of serial Modbus devices into a modern GE Mark VIe network — protecting existing investments.

• Flexibility: Six configurable serial channels + Ethernet support give broad capability for mixed-protocol environments.

• Robust Diagnostics: Self-testing and alarm features allow for early fault detection, improving maintainability.

• Wide Environmental Range: Capable of operating in extreme temperatures, making it suitable for rugged control cabinets and field applications.

• Redundancy Ready: Can be used in fault-tolerant architectures, improving system availability.

• Standardized Configuration: Uses GE’s configuration tools (e.g., ToolboxST), which simplifies setup, monitoring, and maintenance.

Limitations & Considerations

• Complex Configuration: With 6 serial ports and various serial standards, initial configuration requires careful planning.

• Performance Constraints: Serial Modbus (especially at lower baud rates) has limited bandwidth; may not be suitable for very high-speed data collection.

• Ethernet Modbus Limitations: According to GE documentation, the Ethernet Modbus Master mode has some restrictions (e.g., simplex only under certain conditions).

• Power Requirements: Requires a stable 24/28 V DC; power instability can affect communications or module reliability.

• Spare Parts / Lifecycle: As with many Mark VIe components, engineers should ensure spare modules are available and consider lifecycle planning.
