GE IS220PSVOH1B

Product Overview

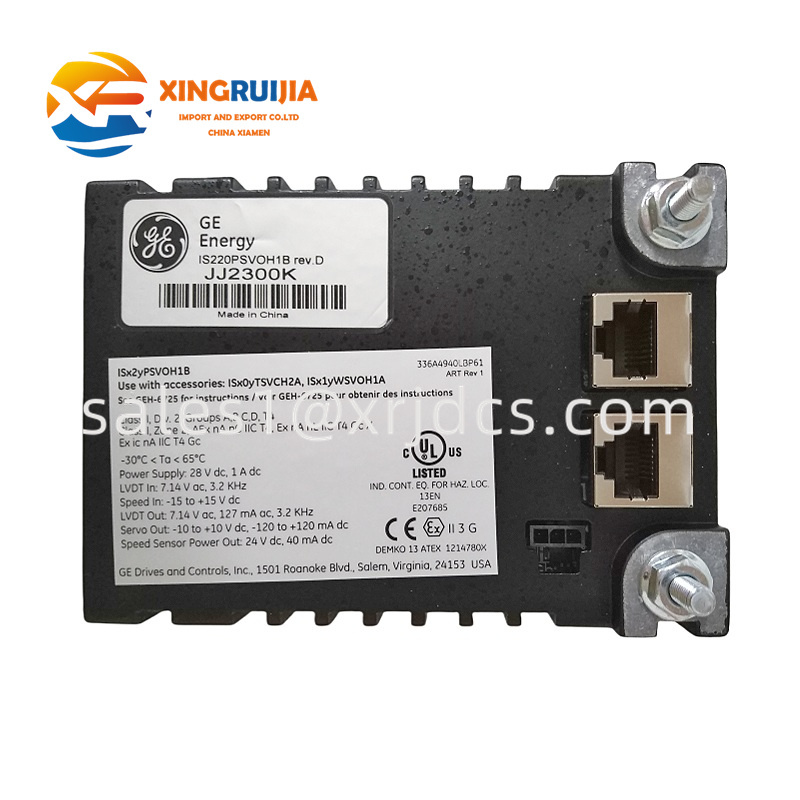

The GE IS220PSVOH1B is a servo control I/O interface module developed for use in General Electric’s Speedtronic Mark VI and Mark VIe turbine control systems. It acts as a dedicated interface between networking/communication systems and servo valve control loops, providing accurate processing and control for critical turbine actuation functions.

This module is commonly found in gas and steam turbine control installations in power plants and heavy industrial applications, where precision valve positioning and real‑time feedback are essential for stable operation.

---

Core Functionality

• Interfaces one or two I/O Ethernet networks to the servo terminal board used for valve actuation.
• Designed specifically as a Servo Control I/O Pack (PSVO), enabling accurate control of servo valve position loops.
• Handles LVDT (Linear Variable Differential Transformer) sensor inputs and pulse rate feedback for position and motion feedback signals.
• Facilitates the drive of servo valves through dedicated outputs to WSVO servo driver modules (when used with accessory terminal boards).

---

Key Features

• Mark VI/VIe Compatibility: Engineered specifically for GE Speedtronic Mark VI and Mark VIe turbine control platforms, ensuring seamless integration.
• Servo I/O Interface: Provides the communication bridge between turbine control networks and servo actuator loops.
• Multi‑Signal Inputs: Supports up to eight LVDT inputs and two pulse rate signals for detailed position and rate feedback.
• Control Outputs: Includes two output channels for controlling servo valve driver modules.

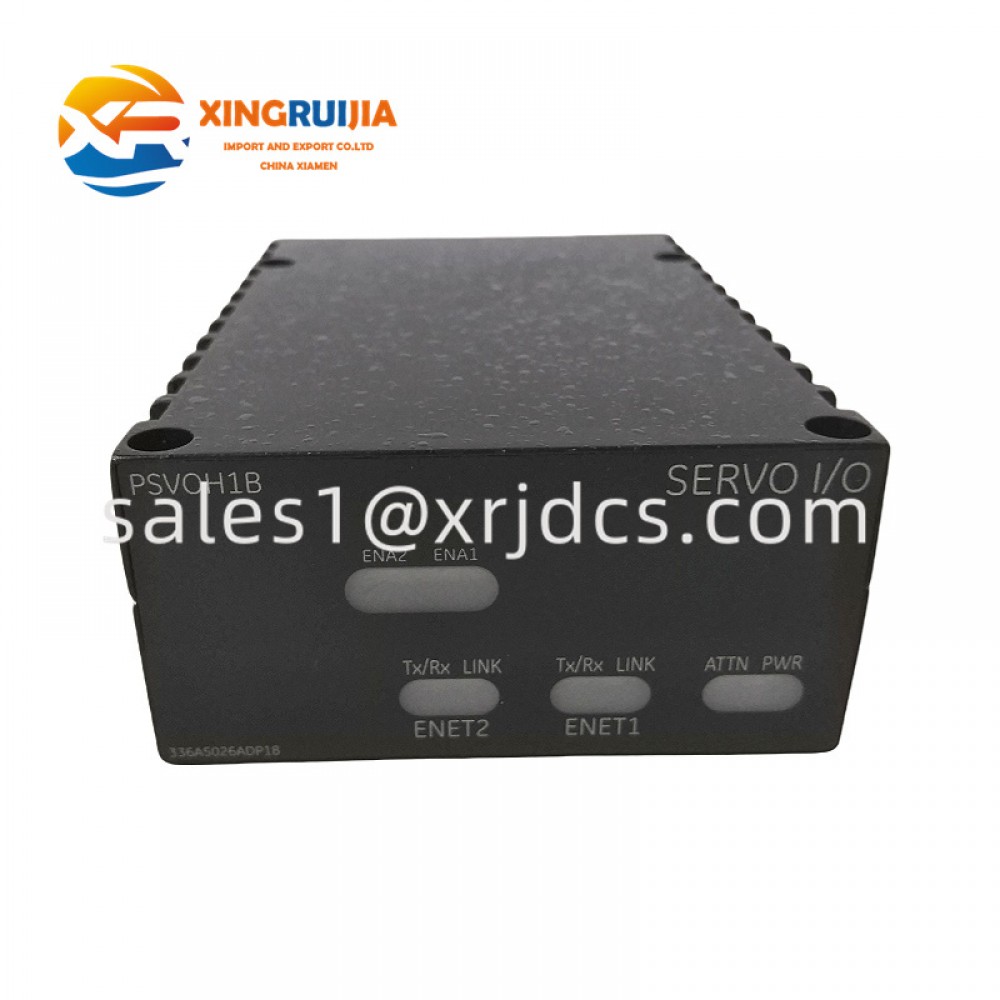

• Status Indicators: LED indicators (Power, Attention, network status) help in quick diagnostics and system verification.
• Conformal Coating: Board conformal coating provides protection in industrial environments with moisture and contamination.

---

Technical Specifications

While detailed OEM documentation is necessary for exact electrical and communication parameters, the module typically exhibits the following:

• Model: IS220PSVOH1B
• Series: GE Speedtronic Mark VI / Mark VIe
• Function: Servo Control I/O Pack (PSVO)
• Inputs: ~8 LVDT inputs, ~2 pulse rate inputs
• Outputs: ~2 control outputs
• Communication Interfaces: Ethernet I/O networking (Mark VIe I/O network)
• LED Indicators: Power, Attention, Ethernet/network status
• Operating Environment: Industrial turbine control racks

Note: For full electrical specs (voltage levels, current ratings, protocol details), refer to GE’s Mark VI/VIe manuals or part‑specific datasheets.

---

Structure & Design

The IS220PSVOH1B module is constructed as an integrated I/O interface pack comprised of:

• Main processing board with digital signal conditioning
• Input circuitry for LVDT and pulse signals
• Communication interfaces for Ethernet and backplane connections
• Control output drivers for valve servicing
• Front LEDs for status feedback

The design allows robust communication with the turbine controller while maintaining accurate feedback and control loops essential for precise servo operation.

---

Application Areas

This module is primarily used in:

• Utility and power generation plants with gas and steam turbines controlled by GE Speedtronic systems
• Industrial turbine control in petrochemical, refinery, and energy sectors
• Systems requiring precise valve actuation and motion control using multiple sensor inputs
• Mark VIe distributed control architectures where Ethernet‑based I/O networks interface with servo loops

---

Installation & Configuration

• Mount the module within the designated I/O rack of the Mark VI or Mark VIe system.
• Connect Ethernet network lines to the module’s network interfaces.
• Interface LVDT sensors and pulse rate outputs from field equipment to the appropriate input terminals.
• Pair with the correct servo driver module (e.g., WSVO servo driver and TSVO terminal board) as required for the application.
• Configure parameters via GE’s control system engineering tools (e.g., ToolboxST) for proper operation.

---

Maintenance & Diagnostics

• Indicator LEDs: Provide real‑time health status and help in quick fault identification.
• Periodic Checks: Validate connectivity and signal integrity during scheduled turbine maintenance.
• Replacement & Reconfiguration: When modules are replaced, system software tools enable auto‑configuration or manual setup as needed.

---

Benefits

• Ensures precise servo valve control in complex turbine systems.
• Facilitates real‑time monitoring and feedback for position loops and motion control.
• Supports redundant network architectures and improves system resilience in mission‑critical environments.
• Enhances diagnostics and maintenance through LEDs and software configuration tools.

---

Summary

The GE IS220PSVOH1B is a highly specialized servo control I/O interface module integral to GE Speedtronic turbine control systems, particularly Mark VI and Mark VIe. It bridges Ethernet‑based I/O networks with servo valve control loops, supports multiple sensor feedback types, and provides reliable, real‑time control for precision turbine operations.
