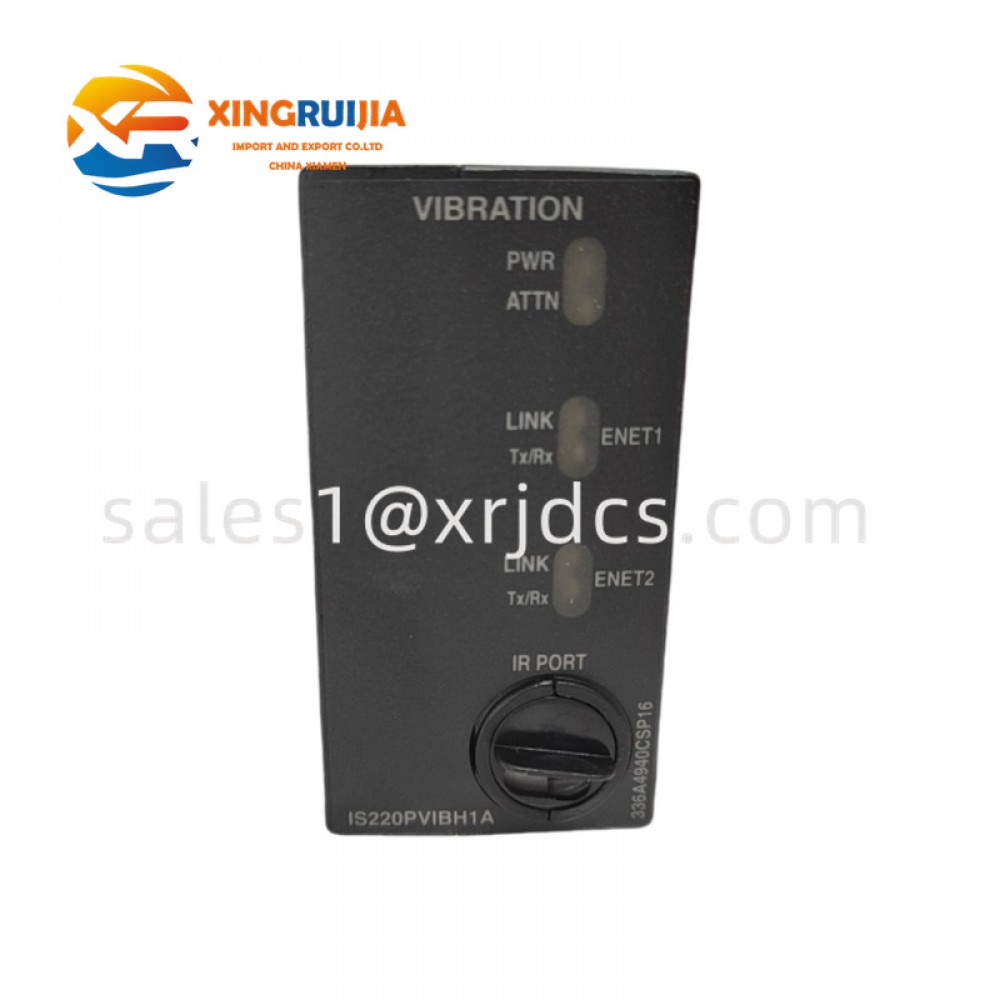

GE IS220PVIBH1A-336A4940CSP16 – Vibration Monitoring & Condition Data Module

Introduction

The GE IS220PVIBH1A336A4940CSP16 is a specialized Vibration Input (PVIB) module designed for the GE Mark VIe and Mark VIeS control systems. It plays a critical role in monitoring machine health by acquiring high-resolution vibration and proximity probe signals from rotating equipment. This module provides precise diagnostic data essential for safe turbine, generator, and compressor operation.

Built for robust industrial environments, the PVIB module ensures long-term stability, accurate machine status evaluation, and dependable integration into GE’s advanced control architecture.

---

1. Core Functions & Operating Role

Unlike general-purpose I/O modules, the PVIB series is engineered specifically for mechanical condition monitoring. Key responsibilities include:

• High-accuracy acquisition of vibration, axial position, and rotor dynamic signals

• Real-time monitoring for early detection of mechanical anomalies

• Data preprocessing for diagnostics and performance analysis

• Continuous communication with Mark VIe controllers for protection and control logic

• Enhancing plant reliability by identifying imbalance, misalignment, bearing wear, and instability

This makes the module an essential component in critical rotating machinery systems.

---

2. Technical Parameters

Parameter	Details
Model	IS220PVIBH1A336A4940CSP16
Module Type	PVIB – Vibration/Proximity Input Module
System Compatibility	GE Mark VIe / Mark VIeS
Signal Types Supported	Vibration, proximity probes, dynamic inputs
Channels	Multiple high-resolution acquisition channels
Communication	IONet Ethernet-based network
Power Supply	Provided through Mark VIe backplane
Diagnostics	Self-monitoring, channel health, signal integrity checks
Operating Mode	Real-time condition monitoring
Mounting	Direct mount to terminal board assembly (TBA)

---

3. Structural & Functional Composition

Here the module’s internals are broken down to highlight engineering aspects:

A. Input Signal Front-End

• Low-noise analog conditioning circuits

• High-bandwidth filtering for precise vibration capture

• Designed to support proximity probes and dynamic sensors

B. Digital Conversion Core

• High-speed ADC for accurate mechanical data sampling

• Built-in signal validation and trend computation

C. Communication Interface Layer

• Redundant IONet channels for reliable data transmission

• Supports real-time exchange with Mark VIe controllers

D. Protection & Reliability Enhancements

• Noise-resistant circuitry suitable for turbine enclosures

• Industrial-temperature-rated components

• Shielding for EMI/EMC compliance




---

4. Key Features

• High-fidelity vibration measurement for advanced machinery diagnostics

• Robust mechanical condition tracking to prevent unplanned downtime

• Seamless integration with GE Mark VIe/VIeS systems

• Advanced self-diagnostics with channel-by-channel health monitoring

• Secure, noise-resistant electronics for harsh industrial environments

• Continuous 24/7 operational reliability

• Supports predictive maintenance strategies

---

5. Application Areas

The GE IS220PVIBH1A336A4940CSP16 is commonly found in:

• Gas and steam turbine vibration monitoring

• Generator mechanical condition assessment

• Industrial compressors and expanders

• Large rotating equipment in refineries and chemical plants

• Balance-of-plant machinery requiring continuous vibration analysis

• Power plant predictive maintenance systems

---

6. Installation & Maintenance Guidelines

Installation

• Mount directly onto the appropriate Mark VIe terminal board

• Ensure probe wiring follows GE shielding and grounding requirements

• Verify correct IONet network configuration before commissioning

• Use ESD-safe practices during handling




Maintenance

• Periodic cleaning of connectors to maintain signal fidelity

• Check sensor cables for wear, looseness, or noise interference

• Review diagnostic logs for deviations in channel performance

• Replace only with genuine GE-compliant hardware

---

7. Additional Notes

• This model variant includes specific configuration and customization codes (A336A4940CSP16).

• Designed for long-term reliability in vibration-intensive environments.

• Widely used for both new installations and modernization of legacy monitoring systems.
