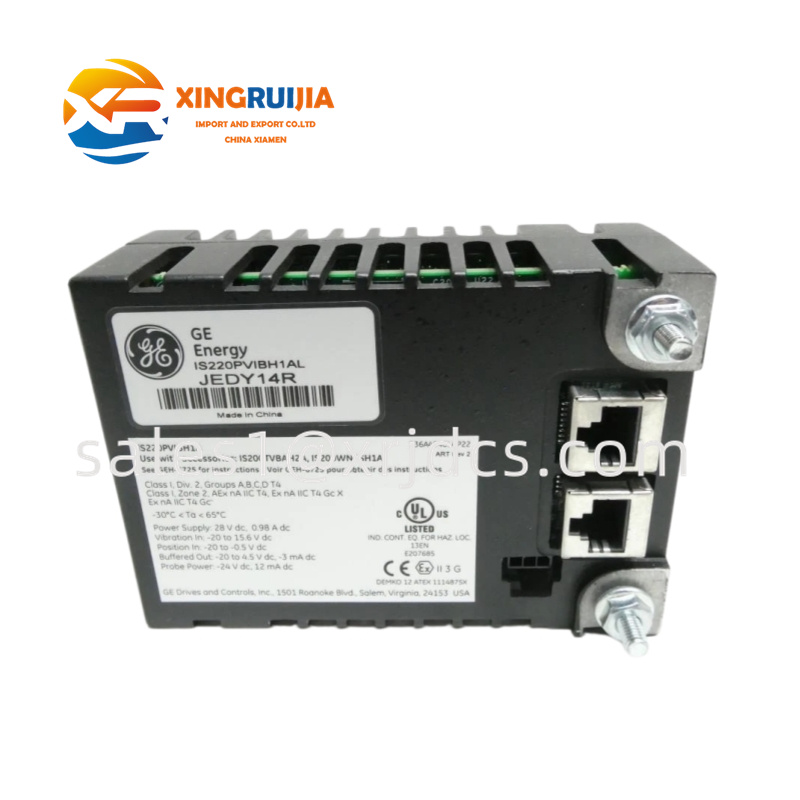

GE IS220PVIBH1AL

Overview

The GE IS220PVIBH1AL is a specialized vibration monitoring I/O pack designed for use with General Electric’s Mark VI and Mark VIe turbine control systems, part of the Speedtronic family widely used in power generation and industrial turbine management. It captures, conditions, and transmits vibration and proximity signals from rotating machinery, enabling accurate real‑time performance monitoring and fault detection.

---

Structure & Composition

This module integrates multiple functional elements within its compact enclosure:

• Signal acquisition and conditioning circuits for processing inputs from various sensors
• Local processing board that filters, scales, and converts vibration signals
• Communication interfaces including Ethernet and status LEDs for diagnostics
• DC‑37 pin connector for interfacing with terminal boards such as the TVBA vibration interface board

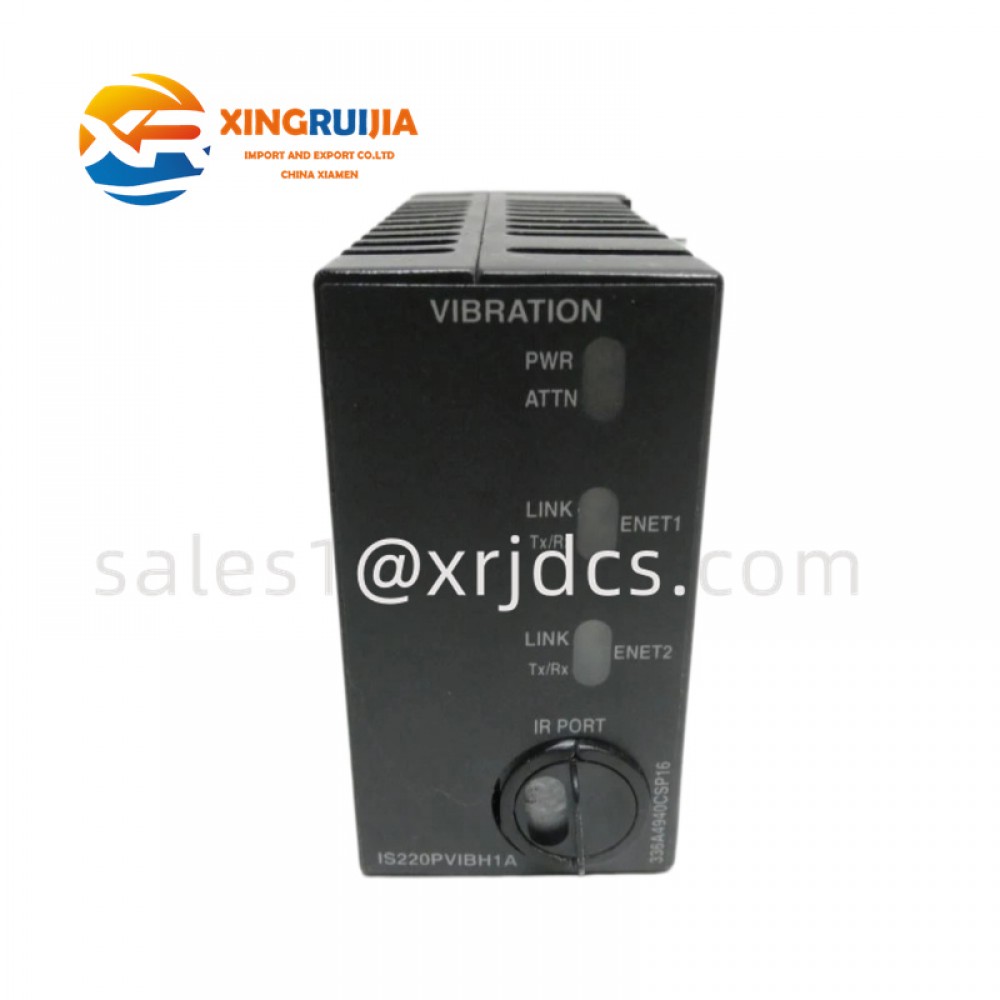

• LED indicators (e.g., Attn, Pwr, Link, TxRx) for module status monitoring

The modular design allows easy integration into existing Mark VIe system racks and terminal boards, supporting both simple and redundant configurations.

---

Key Capabilities

• Multiplexed Vibration Input: Supports 13 channels capable of receiving signals from a range of sensors including proximity probes, velocity sensors, accelerometers, and seismic transducers.
• Multi‑Protocol Communication: Interfaces via Ethernet, commonly to SCADA systems or GE control networks for real‑time data exchange.
• Wide Environmental Range: Built to operate reliably in harsh industrial conditions with a typical ambient temperature range from about –30 °C to +65 °C.
• Frame Rate Flexibility: Sampling frame rates configurable from 3.125 Hz up to 100 Hz, allowing adaptation to different monitoring requirements.
• Probe Power Support: Delivers bias power (commonly –24 VDC) to transducers with typical current capacity (~12 mA per sensor), making it suitable for proximity and vibration sensors.

---

Applications

The IS220PVIBH1AL module is used in critical rotating machinery environments where vibration monitoring and early fault detection are necessary, including:

• Gas and steam turbine control systems in power plants
• Generator monitoring for performance and health diagnostics
• Compressors, pumps, and large industrial motors requiring predictive maintenance
• Process industry equipment where vibration trends are key to operational safety

---

Technical Specifications

• Model: IS220PVIBH1AL
• Series: GE Mark VI / Mark VIe vibration module
• Channel Count: Typically 13 vibration/proximity channels
• Frame Rates: 3.125, 6.25, 12.5, 25, 50, 100 Hz
• Operating Temperature: –30 °C to +65 °C (typical)
• Sensor Power: –24 VDC output with current support per channel
• Status Indicators: LED for power, communication, and attention status
• Connector: DC‑37 pin for system interface
• Certifications: UL, CE in industrial applications

---

Installation & Integration

• Mounting: Install in a compatible Mark VIe terminal rack or TVBA vibration terminal board.
• Sensor Wiring: Connect proximity probes, accelerometers, or velocity sensors to the designated channel inputs.
• Communication: Use Ethernet cabling for integration with turbine control systems or SCADA networks.
• Configuration: Set frame rates and channel parameters via system engineering tools (e.g., GE Mark VIe software).

---

Benefits & Performance

• Real‑Time Vibration Insight: Provides accurate and high‑fidelity vibration data for machinery condition assessment.
• Predictive Maintenance Enablement: Helps detect early mechanical issues such as imbalance, misalignment, and bearing wear.
• Robust Industrial Design: Built with EMI protection and rugged circuitry for long service life under demanding conditions.
• Integration Friendly: Seamless compatibility with GE Speedtronic Mark VI/VIe systems ensures smooth deployment in control and monitoring environments.

---

Summary

The GE IS220PVIBH1AL is a high‑performance vibration I/O monitoring module tailored for GE turbine control platforms, offering multi‑channel data acquisition, flexible sampling rates, and reliable system integration. It supports advanced machinery health monitoring and helps reduce unplanned downtime by providing early warnings of mechanical distress.
