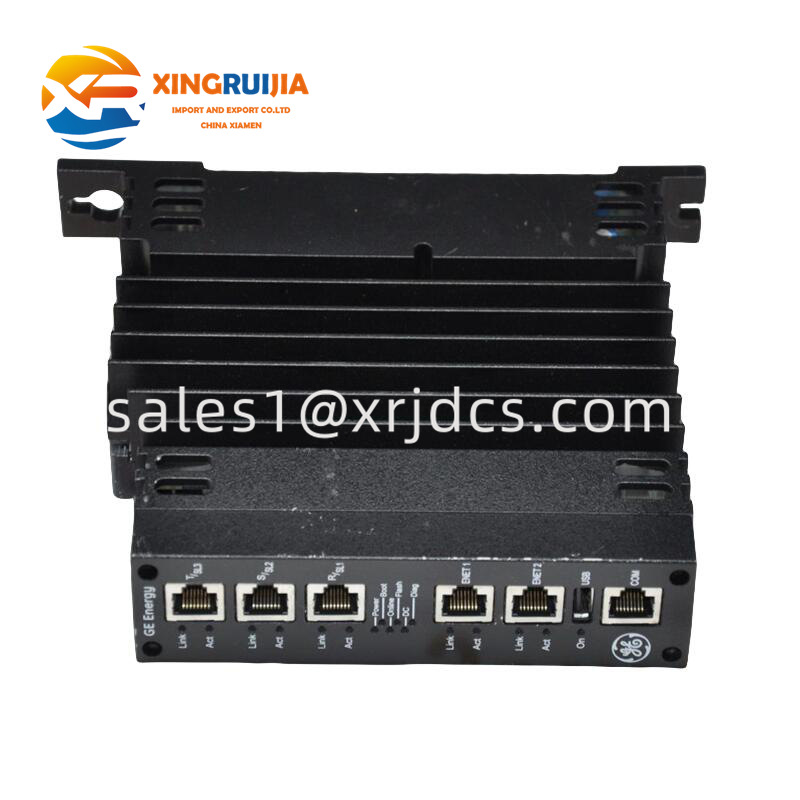

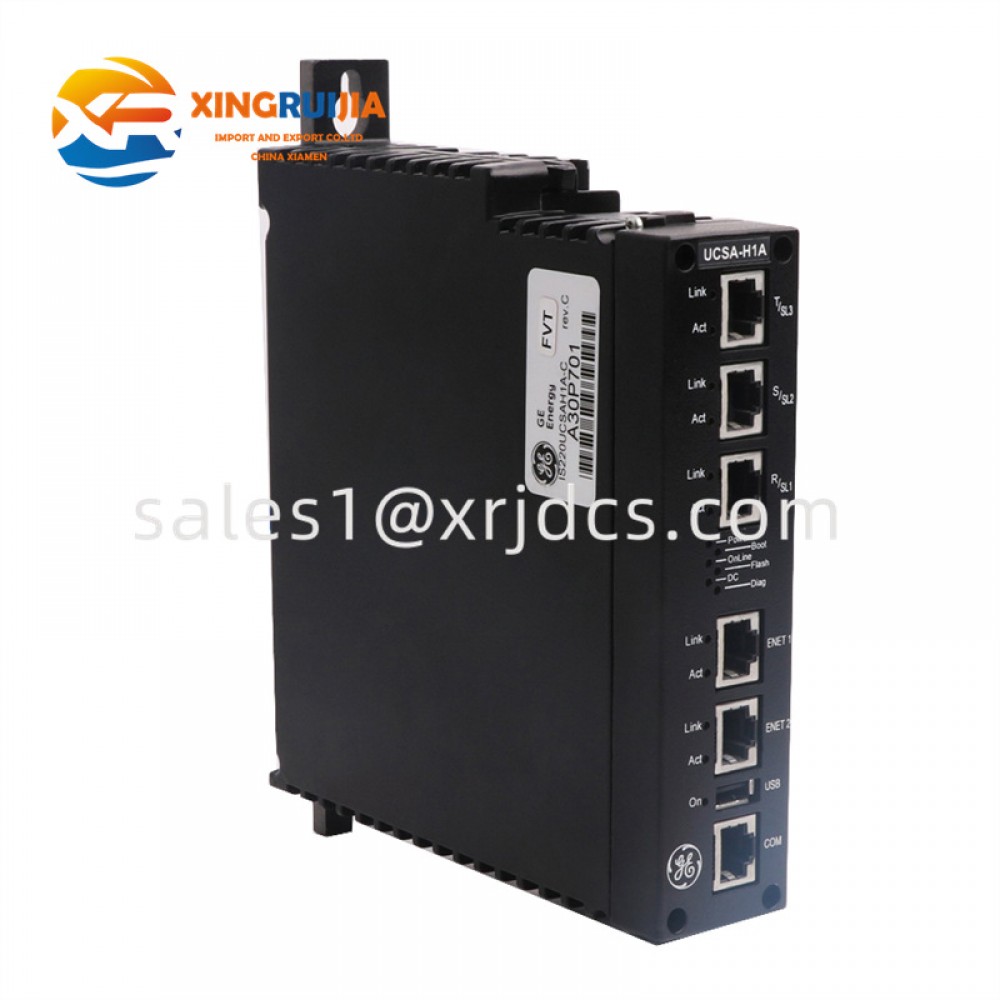

The GE IS220UCSAH1A is an embedded controller module developed by General Electric (GE), belonging to the Mark VIe series. It is widely used in gas turbines, steam turbines, wind turbines, and other industrial processes for control and monitoring. Essentially, it functions as a standalone computer that executes critical application code to achieve precise control and real-time monitoring of industrial equipment. Designed for high reliability, performance, and real-time responsiveness, it meets the automation demands of complex industrial environments.

Technical Specifications

Parameter	Specification
Processor	Freescale PowerPC 8349, 667 MHz
Memory	256 MB DDR SDRAM
Operating System	QNX Neutrino
Power Supply	18 V DC – 32 V DC (Typical 12.5 W)
Operating Temperature	0°C to 65°C
Relative Humidity	5% – 95% (Non-condensing)
Cooling Method	Passive (Fanless)
Communication Interfaces	6× Ethernet (RJ45), 1× USB
Diagnostic Features	Front-panel LEDs (Power, Boot, Online, Flash, DC, Diag, Link/Act)
Protection Rating	IP20
Dimensions	233.4 mm × 177.8 mm × 44.45 mm
Weight	2.27 kg

Key Features

• High Performance & Reliability: Equipped with a Freescale 8349 processor (667 MHz) for efficient execution of complex control algorithms, ensuring stability and real-time operation.

• Modular Design: Facilitates easy installation, maintenance, and upgrades; supports triple-redundant configurations for critical applications.

• Versatile Communication: Six Ethernet ports and one USB interface support protocols like IONet, Modbus, and DNP3 for seamless data exchange.

• Advanced Diagnostics: Front-panel LED indicators provide real-time status updates for quick troubleshooting.

• Safety Compliance: Meets IEC 61508 safety standards with high Safety Integrity Level (SIL).

Structure & Components

The IS220UCSAH1A consists of:

• Processor Module: Freescale 8349 for executing control logic.

• Memory Module: 256 MB DDR SDRAM for runtime data storage.

• Storage: 1 GB CompactFlash or 512 MB NAND Flash for OS and applications.

• Communication: 6× Ethernet (IONet) + 1× USB for high-speed connectivity.

• Power Supply: 18–32 V DC input with stable 24 V DC output.

• Diagnostics: Front-panel LEDs for status monitoring.

• Cooling: Passive (fanless) design for reliable operation in high temperatures.

Applications

The IS220UCSAH1A is used in:

• Gas & Steam Turbine Control: Startup/shutdown, load control, fuel management, and fault protection in Mark VIe systems.

• Industrial Automation: Production lines, machinery, and process control.

• Power Systems: Grid stability and voltage regulation.

• Transportation: Traffic signal control for optimized flow.

• Energy Management: Solar and wind power systems.

• Chemical & Metallurgy: Equipment monitoring and control.

————————————————————————————————————————————————————————————————————————
