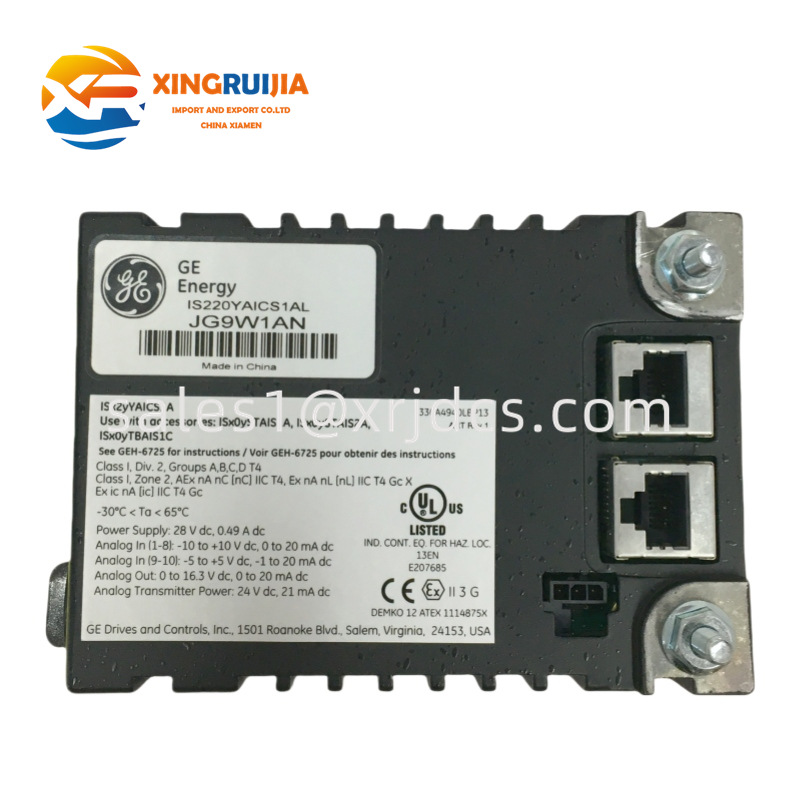

GE IS220YAICS1A Functional Safety System Module

The GE IS220YAICS1A is a critical component of the GE Mark VIe or Mark VIeS functional safety systems, renowned for its high performance and reliability. It is primarily designed for gas turbine monitoring and control, enabling precise speed regulation, automatic thermal state assessment, startup mode selection, acceleration, and speed stabilization. These functions are essential for ensuring the efficient and safe operation of gas turbines.

Technical Parameters

Parameter	Specification
Model	GE IS220YAICS1A
Operating Voltage	24V (module)
Supply Voltage	220V (system)
Control Method	Remote control supported
Compatible Motors	Servo motors
Dimensions (W×H×D)	482.6 mm (19") × 177.8 mm (7") × 88.9 mm (3.5")
Weight	20 lbs (9.07 kg)
Power Requirements	115/230 VAC, 50/60 Hz
Environmental Conditions	0°C to 50°C, 10–90% RH (non-condensing)
Processor	Freescale 8349 (667 MHz)
Memory	256 MB SDRAM
Storage	1 GB CompactFlash
Operating System	QNX
DC Power Input	18–36 V DC, 12 W
Operating Temperature	0°C to 65°C
Input Voltage	100–240 V AC
Output Voltage	24 V DC
Rated Current	2 A

Key Features

• High Performance: Rapid data acquisition and signal processing for condition monitoring, vibration analysis, and temperature measurement.

• High Reliability: Designed for harsh environments with exceptional stability.

• Flexible I/O Options: Adaptable to diverse application needs.

• User-Friendly Programming Interface: Enables quick configuration and debugging.

• Advanced Signal Analysis: Critical for gas turbines, steam turbines, and compressors.

• Modular Design: Supports scalability and easy maintenance.

• Diagnostic Capabilities: Front-panel LED indicators (Power, Boot, Online, Flash, DC, Diag) for real-time status monitoring.

• Redundant Power Supply: Ensures failover protection and system availability.

• Remote Monitoring: Enhances maintainability and operational efficiency.

 Structure and Components

The GE IS220YAICS1A is an I/O pack within the GE Speedtronic™ MKVIe Gas Turbine Control System, providing connectivity between control systems and field devices (e.g., sensors, actuators). Its robust design suits industries like power generation, oil & gas, and chemical processing. Components include:

• 8 analog inputs

• 4 analog outputs

• 8 digital inputs

• 4 digital outputs

• Hot-swappable modules

• Redundant power supply

• Fault-tolerant protection

• Remote monitoring

 Applications

• Gas Turbine Control: Optimizes speed, thermal management, and startup sequences.

• Other Industries: Marine engineering, medical equipment, and aerospace due to its precision and reliability.

————————————————————————————————————————————————————————————————————————

Choose Xiamen Xingruijia Import & Export Co., Ltd. and Enjoy the Following Advantages:

One-Stop Procurement: We offer a wide range of industrial control products to meet all your purchasing needs.

Professional Solutions: Our technical team provides customized solutions tailored to your requirements.

Thoughtful Service: We deliver comprehensive support throughout the entire process—pre-sales, in-sales, and after-sales.

Partner with us for quality products and exceptional service!

Contact Us

·Manager: Jinny                                         ·E-mail: sales5@xrjdcs.com

·Tel: + 86-18250705533 （WhatsApp）   ·Wechat: + 86-18250705533

————————————————————————————————————————————————————————————————————————

Installation & Maintenance

• Mounting: Rail-mounted (standard rack-compatible).

• Maintenance: Modular design simplifies upgrades. LED indicators facilitate troubleshooting.

• Durability: Robust construction ensures long-term stability.

GE IS220YAICS1A FAQs

Q1: How does the GE IS220YAICS1A differ from the IS220UCSAH1A?
A1: The IS220YAICS1A is an I/O pack for signal processing, while the IS220UCSAH1A is an embedded controller for control algorithms.

Q2: What is the operating temperature range?
A2: 0°C to 65°C.

Q3: Does it support remote monitoring?
A3: Yes, via I/O network communication.
