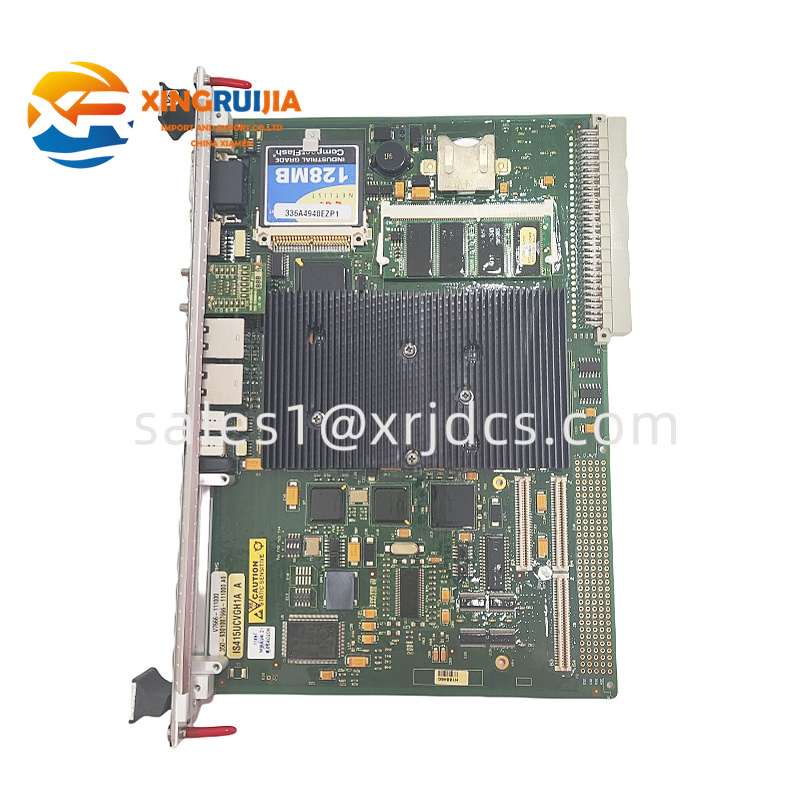

GE IS415UCVGH1A V7666-111000

The GE IS415UCVGH1A V7666-111000 is a high-performance industrial controller card manufactured by General Electric (GE), specifically designed for complex industrial automation and control tasks. This product belongs to the GE Mark VIe series and is widely used in gas turbine control systems, power, energy, manufacturing, and other fields. Its core function is to ensure the stable operation of industrial systems through efficient data processing and multitasking capabilities.

Parameters

• Power supply requirements: Supports a wide range of input voltages, adapting to various industrial power supply environments.
• Communication protocols: Supports Modbus, TCP/IP, GE proprietary communication protocols, etc.
• Storage support: Built-in large-capacity memory, supporting external storage expansion.
• Operating temperature: -20°C to +70°C (some documents mention -40°C to +70°C, but the official data shall prevail).
• Dimensions and weight: Complies with standard 19-inch rack mounting dimensions, lightweight (approximately 0.53-0.8kg).

Product Features

• High-performance processor: Equipped with an efficient CPU, supporting real-time data processing and multitasking operations to ensure the reliability and response speed of control tasks.
• Multiple interface support: Provides Ethernet, serial port, USB and other communication interfaces, facilitating integration into complex network environments.
• Modular design: Facilitates installation, replacement, and expansion, adapting to flexible configuration requirements.
• Durability and reliability: Uses industrial-grade components to adapt to harsh environments such as high temperature, high humidity, vibration, and electromagnetic interference.
• Real-time operating system support: Compatible with GE proprietary real-time operating system, optimizing control and monitoring performance.
• I/O capabilities: Supports PMC expansion slots, dual Ethernet ports, and CompactFlash storage (up to 1GB).
• Voltage output: Provides various output ranges such as 0-10V and 4-20mA, with a load capacity of up to 10mA.

Structure and Composition

• Physical design: Single-slot board, complying with standard 19-inch rack mounting specifications.
• Core components:
  • Processor: Intel Ultra Low Voltage Celeron 650 MHz (some documents mention 1.8 GHz, and the official data shall prevail).
  • Memory: 128 MB SDRAM.
  • Communication interface: Dual 10BaseT/100BaseTX Ethernet ports.
  • Cooling method: Fanless design, operating temperature range 0-65°C.

Application Fields

• Gas turbine control systems: As a core component of the GE Mark VIe system, it is used to accelerate turbine units and provide optimal starting conditions.
• Industrial automation: Suitable for complex control tasks in power, energy, manufacturing, and other fields.
• Motor control: Combining high performance and reliability, it is used to control AC induction motors.
• Motion control: Supports servo motor drives to achieve high-precision positioning and flexible handling.

Installation and Maintenance

• Installation: The modular design facilitates quick installation and replacement, and the environment must meet the operating temperature requirements (-20°C to +70°C).
• Maintenance:
  • Regular inspection: Monitor communication interfaces, power connections, and heat dissipation systems.
  • Remote diagnosis: Supports remote troubleshooting and maintenance.
  • Environmental adaptability: Strong electromagnetic interference and physical damage must be avoided.
• Notes:
  • Keep it clean to prevent dust accumulation from affecting heat dissipation.
  • Update the firmware regularly to optimize performance.

————————————————————————————————————————————————————————————————————————
