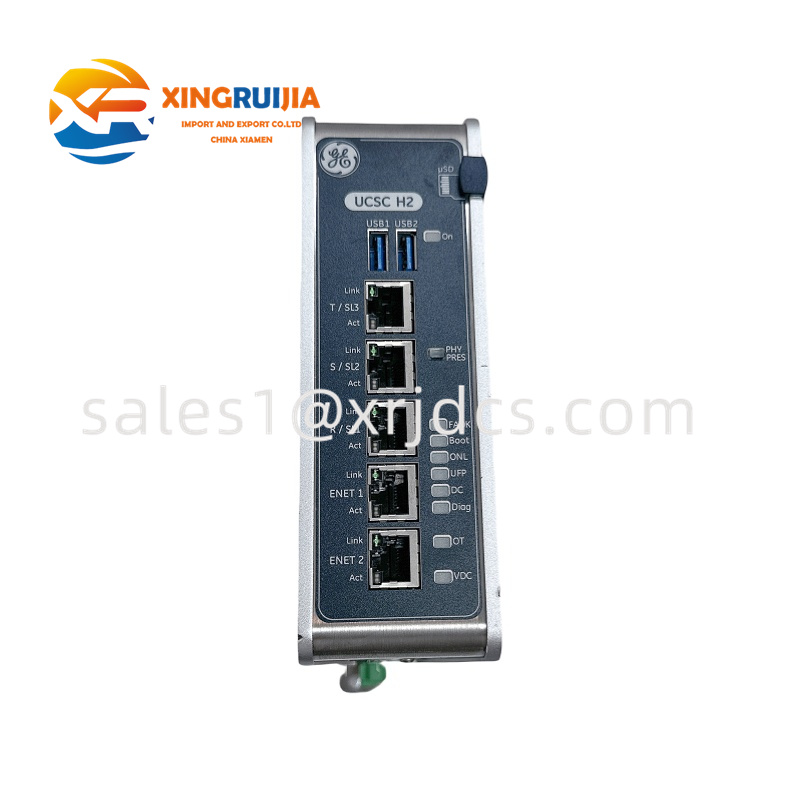

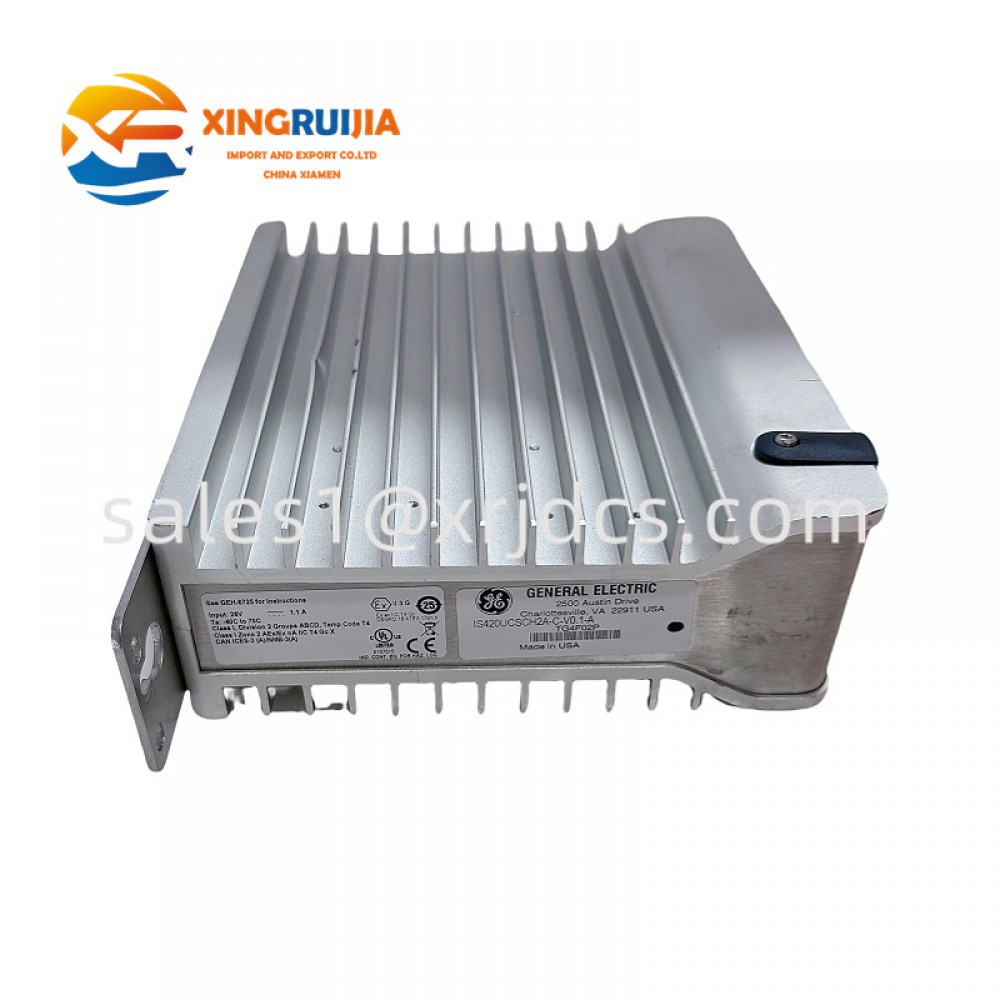

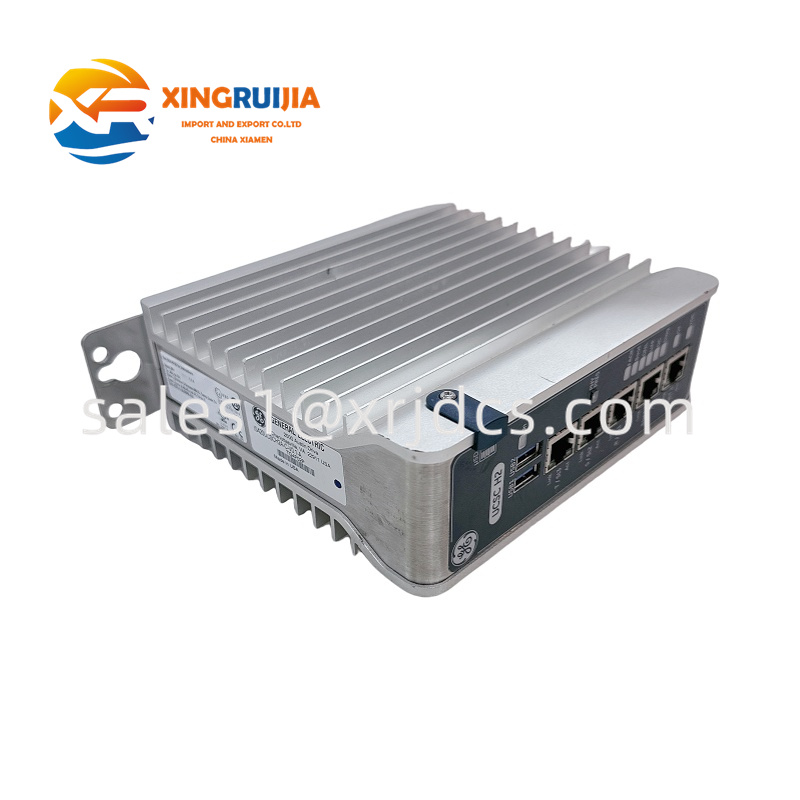

GE IS420UCSCH2A – Embedded Control Computer Module

Overview

The GE IS420UCSCH2A-C-V0.1-A is an advanced Universal Control Server (UCS) module designed for the Mark VIe and Mark VIeS turbine and plant control platforms. Engineered for industrial reliability, it delivers deterministic control processing, high-speed data management, and robust communication capabilities essential for mission-critical power generation applications.

This controller serves as a central computing element responsible for executing logic, interfacing with I/O networks, managing diagnostics, and maintaining synchronized communication across distributed control architectures.

---

Key Characteristics & Functional Highlights

• High-performance embedded CPU optimized for real-time processing

• Multiple network interfaces, including Ethernet for control, monitoring, and plant communication

• Secure operating environment to ensure protected execution of turbine control software

• Conformal-coated electronics for durability in harsh power-generation environments

• Long-term operational stability under thermal, electrical, and mechanical stress

• Compatible with Mark VIe/VIeS systems, enabling seamless integration with existing architecture




---

Internal Structure & Component Composition

Instead of a traditional single-function module, the IS420UCSCH2A features a layered internal design:

1. Processing Core

• Embedded industrial-grade CPU

• Real-time operating environment with deterministic scheduling

• High-speed memory subsystem for control algorithms

2. Interface Layer

• Dual/triple Ethernet ports for segregated networks

• Redundant communication paths to enhance system reliability

• Firmware connectors and system diagnostic channels

3. Environmental Protection

• Ruggedized PCB with industrial coating

• Reinforced connectors designed for vibration-prone turbine cabinets

• Temperature-controlled cooling pathways

---

Applications

The IS420UCSCH2A-C-V0.1-A is widely deployed in:

• Gas turbine control

• Steam turbine automation

• Generator and auxiliary equipment management

• Boiler and combustion systems

• Balance-of-plant (BOP) control networks

• Large-scale industrial process systems using Mark VIe architecture

Its robust architecture makes it suitable for both new installations and retrofit modernization projects.

---

Technical Parameters

• Module Type: Universal Control Server (UCS)

• Series: IS420

• Model Variant: UCSCH2A-C-V0.1-A

• Controller Type: Embedded industrial control computer

• Network Support: Multiple Ethernet channels for segmented system communication

• Memory Resources: Real-time memory allocation for application, system logs, and diagnostics

• Cooling Method: Forced-air convection via system backplane channel

• Mounting: Panel-mounted within Mark VIe control racks

• Firmware: GE-specific control firmware, version dependent

---

Distinctive Features

• Deterministic execution ensures predictable system response for turbine operations

• Integrated security mechanisms protect against unauthorized firmware access

• Designed for continuous 24/7 operation, even in demanding generation plants

• Enhanced self-diagnostics quickly detect hardware or communication faults

• Redundant communication channels reduce downtime and improve fault tolerance

• Long lifecycle availability, suitable for extended turbine campaigns




---

Installation & Maintenance Guidelines

Installation

• Ensure correct alignment with the Mark VIe rack rails before insertion

• Connect Ethernet channels to the appropriate segmented networks (e.g., UDH, control network)

• Verify firmware and configuration compatibility with the system controller database

• Avoid electrostatic discharge during handling

Maintenance

• Perform periodic inspection of connectors for contamination

• Monitor system logs for warnings or diagnostic alerts

• Maintain adequate cabinet ventilation to prevent thermal stress

• Replace modules only during scheduled outages unless part of emergency maintenance

---

Additional Notes

• The C-V0.1-A suffix indicates specific hardware/firmware revision details used in certain engineering configurations.

• Often utilized in redundancy pairs to achieve high-availability control systems.

• Known for exceptional stability in high-vibration turbine environments.
