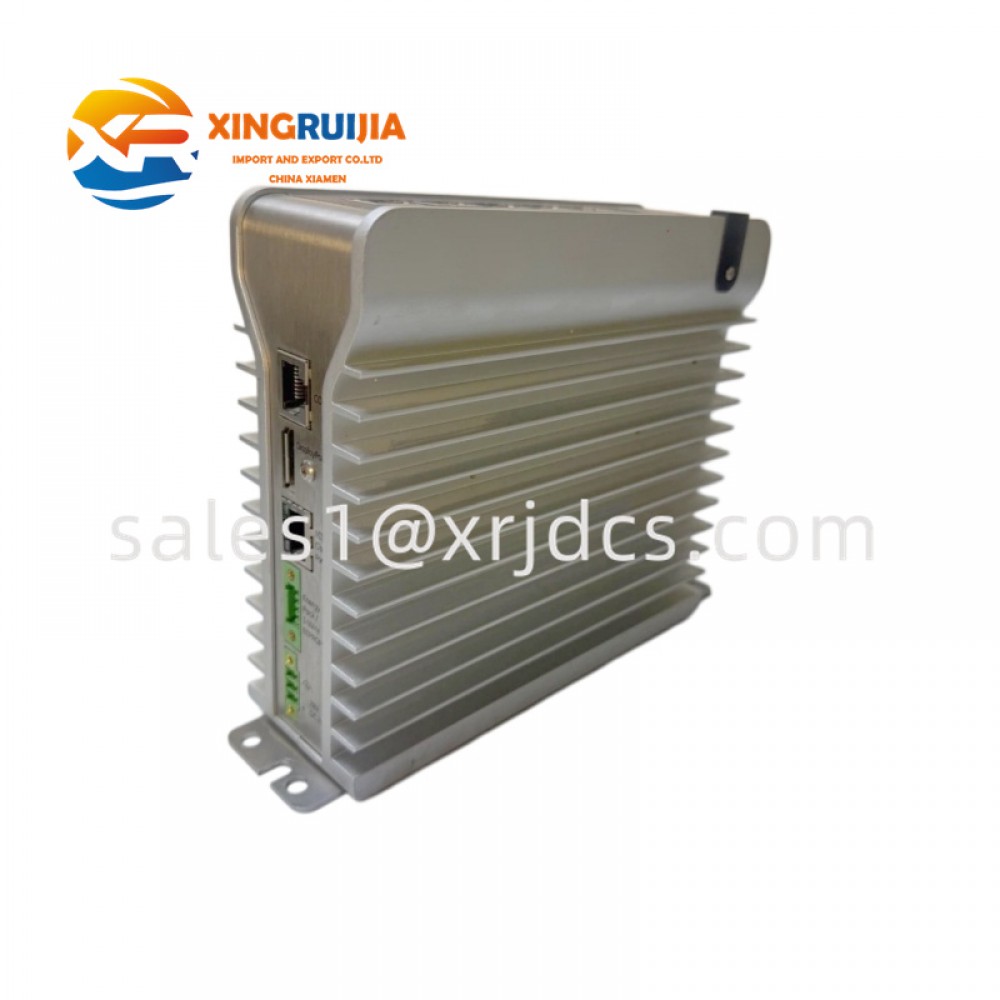

GE IS420UCSCH2A

Product Overview

The GE IS420UCSCH2A is a high-performance Universal Control System Controller (UCSC) module designed for the GE Mark VIe distributed control system platform. As a core controller component in GE’s turbine control architecture, it provides reliable processing, communication, and real-time control capabilities for industrial automation applications. The module is widely applied in gas turbine, steam turbine, power generation, and other critical control environments where high availability and fast response are required.

Designed as a compact standalone controller, the IS420UCSCH2A executes application-specific control logic and communicates with field I/O modules through GE’s industrial network architecture. Its embedded computing platform supports advanced control functions while maintaining long-term stability in harsh industrial operating conditions.

The GE Mark VIe UCSC controller family is built for scalable automation systems, allowing integration from small standalone control applications to large turbine control systems. The IS420UCSCH2A provides a flexible solution for customers requiring dependable controller replacement, system expansion, or modernization of existing GE control platforms.

Technical Specifications

Parameter	Description
Manufacturer	General Electric (GE)
Model Number	IS420UCSCH2A
Product Type	Mark VIe Controller Module
Controller Family	UCSC Controller
System Platform	GE Mark VIe Control System
Processor	Dual-core AMD G-Series processor, 1.6 GHz
Memory	2 GB DDR3 SDRAM with ECC
Operating System	QNX Neutrino real-time operating system
Communication Ports	Ethernet ports and IONet communication interfaces
Mounting Type	Base-mounted controller
Cooling Method	Convection cooling
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	Up to 95% non-condensing
Typical Applications	Turbine control, industrial automation, power generation

Core Features

High-Speed Industrial Control Processing

The IS420UCSCH2A integrates an industrial-grade processor platform designed for demanding real-time control applications. Its dual-core processing architecture provides efficient execution of control algorithms, monitoring tasks, and communication management, ensuring fast system response and reliable operation.

The embedded QNX Neutrino operating system supports multitasking capabilities, allowing multiple control and diagnostic functions to operate simultaneously while maintaining system stability.

Reliable Mark VIe System Integration

As a member of the GE Mark VIe control system family, the IS420UCSCH2A is optimized for seamless integration with GE turbine control solutions. It communicates with distributed I/O modules and other system components through dedicated industrial communication networks, helping achieve coordinated control and monitoring.

The controller supports flexible system configurations and can be used in different automation architectures depending on project requirements.

Robust Industrial Design

The IS420UCSCH2A is designed for continuous operation in industrial environments. The module uses a fanless convection cooling structure, reducing mechanical failure points and improving long-term reliability.

Its wide temperature tolerance and industrial protection design make it suitable for power plants, energy facilities, and process industries where stable operation is essential.

Hardware Structure and Composition

The GE IS420UCSCH2A controller consists of several functional sections:

Processing Unit

The processor section is responsible for executing control applications, managing system calculations, and coordinating communication between different automation devices.

The high-performance embedded CPU allows the controller to handle complex control logic while maintaining deterministic response performance.

Memory and Storage System

The controller includes integrated memory resources for application execution, system operation, and data processing. Error correction features help improve data reliability during continuous industrial operation.

Communication Interface

The module provides multiple Ethernet-based communication channels and IONet connectivity for connection with GE Mark VIe system components.

These interfaces enable communication with:

• Distributed I/O modules
• Human-machine interfaces (HMI)
• Engineering workstations
• Other GE control devices

Mechanical Design

The UCSC controller adopts a compact standalone structure with base mounting. The design eliminates the need for cooling fans and hardware configuration jumpers, reducing maintenance requirements and improving system availability.

Application Areas

The GE IS420UCSCH2A is widely used in various industrial control applications, including:

Power Generation

• Gas turbine control systems
• Steam turbine automation
• Combined-cycle power plants
• Generator monitoring systems

Industrial Process Automation

• Chemical processing plants
• Oil and gas facilities
• Energy management systems
• Large industrial production lines

Turbine Control and Monitoring

The module plays an important role in turbine protection, sequencing, monitoring, and operational control by providing reliable execution of control strategies.

Advantages of GE IS420UCSCH2A

• Designed specifically for GE Mark VIe control platforms
• High-performance embedded processing capability
• Reliable real-time control execution
• Compact standalone industrial design
• Fanless cooling structure for improved reliability
• Flexible communication capability
• Suitable for long-term industrial operation
• Easy replacement for existing Mark VIe controller systems

Installation and Maintenance

Before installing the GE IS420UCSCH2A, ensure that the control cabinet, power supply, communication network, and mounting environment meet GE system requirements.

Recommended installation procedures include:

• Verify the controller model and hardware compatibility
• Install the module securely on the mounting base
• Check Ethernet and IONet connections
• Confirm power supply voltage stability
• Configure controller parameters through compatible GE engineering software

For maintenance, users should regularly:

• Inspect communication connections
• Check operating temperature conditions
• Keep the control cabinet clean and dust-free
• Verify controller diagnostics and system alarms
• Maintain backup copies of application configurations

Proper maintenance helps maximize controller reliability and extend the service life of the Mark VIe automation system.

Product Supply Support

We provide GE IS420UCSCH2A controller modules and related GE Mark VIe automation spare parts for industrial customers requiring system maintenance, replacement, and upgrade solutions.

With experience in industrial automation components, we support applications involving turbine control systems, PLC/DCS equipment, and critical process automation platforms. The GE IS420UCSCH2A is an ideal choice for customers seeking reliable controller performance and long-term system availability.

————————————————————————————————————————————————————————————————————————
