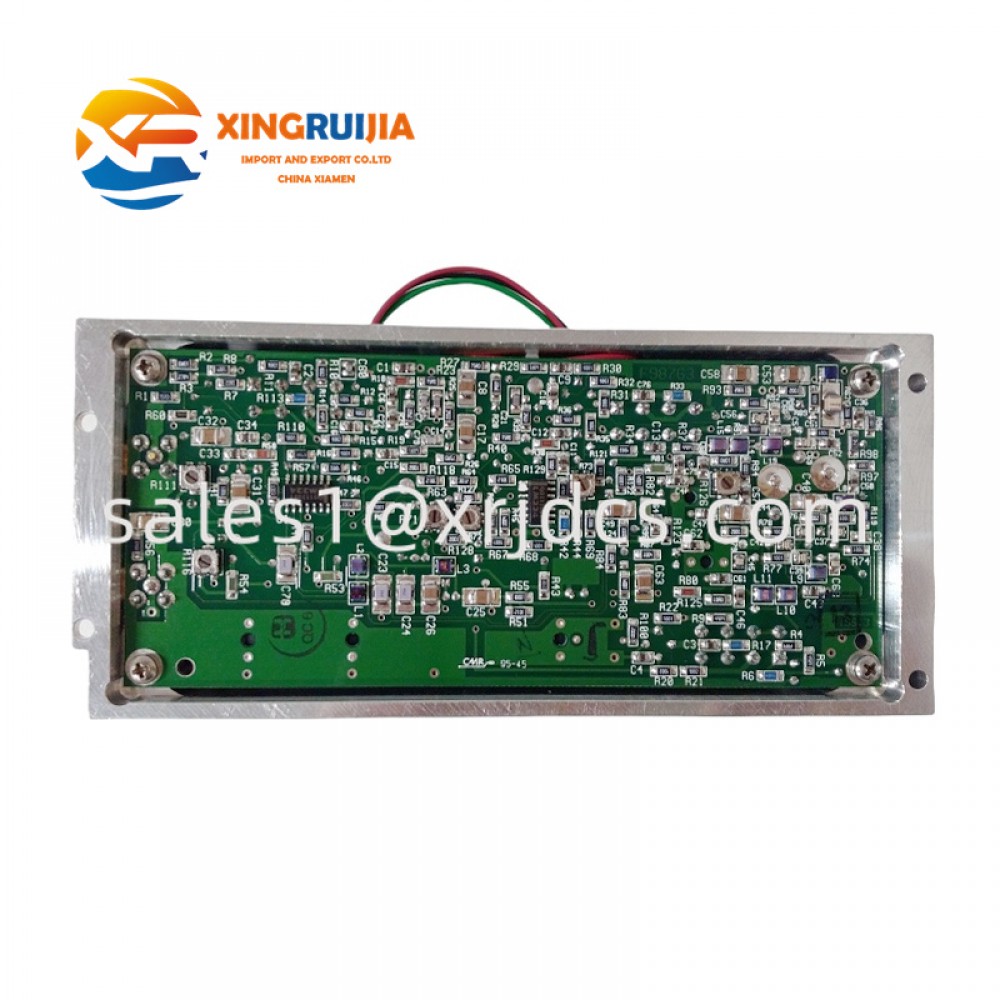

GE S739DVT

Overview
The GE S739DVT represents a critical layer of safety in industrial and energy generation systems. This specialized Digital Valve Trip Module is engineered to provide ultra-reliable, failsafe shutdown functionality for steam or gas turbine systems. It acts as the decisive electronic guardian, monitoring critical overspeed and process parameters. Upon detecting a hazardous condition, it initiates an immediate and secure closure of turbine inlet valves to protect expensive machinery and, more importantly, ensure personnel and plant safety. Its design prioritizes deterministic response, diagnostic coverage, and compliance with stringent safety standards.

Core Features and Operational Advantages

• High-Integrity Safety Logic: Executes pre-programmed trip logic with a focus on fail-safe operation, minimizing the chance of a dangerous failure on demand.

• Comprehensive Self-Diagnostics: Continuously performs internal health checks on processors, memory, power supplies, and output circuits, alerting operators to潜在 faults before they compromise safety.

• Redundant Architecture: Often incorporates dual or triple modular redundant channels that vote on trip decisions, providing both high availability (avoiding spurious trips) and high safety (assuring a trip when needed).

• Configurable Trip Functions: Supports configuration for various trip initiators such as overspeed, low lube oil pressure, high vibration, axial displacement (rotor position), and manual emergency stops.

• Secure and Auditable: Features password protection for configuration changes and maintains an event log with time stamps for critical actions and trips, essential for incident analysis and regulatory audits.

Application Domains
This module is indispensable in high-consequence environments where rotating equipment failure is catastrophic:

• Power Generation: Protection for steam turbines in coal, gas, nuclear, and combined-cycle power plants.

• Oil & Gas: Safeguarding compressor and pump drive turbines on offshore platforms, LNG facilities, and pipelines.

• Marine Propulsion: Critical safety component for turbine-driven naval vessels or large ships.

• Industrial Turbines: Protecting mechanical drive turbines in large refining, chemical, or petrochemical complexes.




Physical Structure and System Composition
The S739DVT is typically a rack-mounted module designed to slot into a dedicated safety system chassis, such as GE's Mark* VIe or similar Turbine Control (TMR) system. It features a robust metal enclosure with a front-panel display for status indication and local interface. Internally, it contains redundant microprocessor-based logic solvers, isolated power conditioning circuits, and high-integrity output relays or solid-state switches. The module interfaces with magnetic pickups (for speed sensing), 4-20mA transmitters (for pressure, temperature), and contact inputs from field switches. Its final output directly controls the solenoid valves (trip solenoids) in the turbine's hydraulic trip system.

Installation, Commissioning, and Critical Maintenance
Installation: Must be performed by qualified personnel. The module is installed in a designated, environmentally controlled cabinet with proper grounding and segregation from non-safety wiring. Field sensor wiring must use shielded cables, with shields grounded at one end to prevent noise induction.
Commissioning: This is a rigorous process involving configuration via dedicated software (e.g., ToolboxST), functional testing of all trip inputs, and validation of the final output to the trip solenoids. A simulated overspeed test or equivalent is often required to prove the complete trip chain.
Maintenance & Testing: Regular functional testing is mandated by safety standards. This involves periodically simulating trip conditions to verify the module and the entire mechanical trip system responds correctly. Diagnostic alarms must be investigated promptly. Firmware updates should only be applied following strict management of change procedures.

Key Technical Parameters

• Input Types: Accepts digital signals (contact closures, 24-125V DC), frequency inputs from magnetic pickups (for speed), and analog inputs (4-20mA, 1-5V DC) for process variables.

• Output Type: Typically redundant, isolated relay outputs (form-C contacts) rated for the solenoid valve coil load (e.g., 125V DC, 2A). Solid-state outputs may also be available.

• Response Time: Extremely fast, with total system response (sensor to output) typically specified to be less than 50-100 milliseconds.

• Safety Integrity Level (SIL): Designed and certified to meet specific SIL levels (e.g., SIL 2 or SIL 3 as per IEC 61508/61511) for safety instrumented functions.

• Power Supply: Operates on a dual-redundant DC power supply, commonly 24V DC or 125V DC, with wide tolerances.

• Operating Temperature Range: Rated for control room or protected panel environments, typically 0 to 60°C (32 to 140°F).

• Certifications: Compliant with relevant international standards for functional safety and electromagnetic compatibility (EMC).
