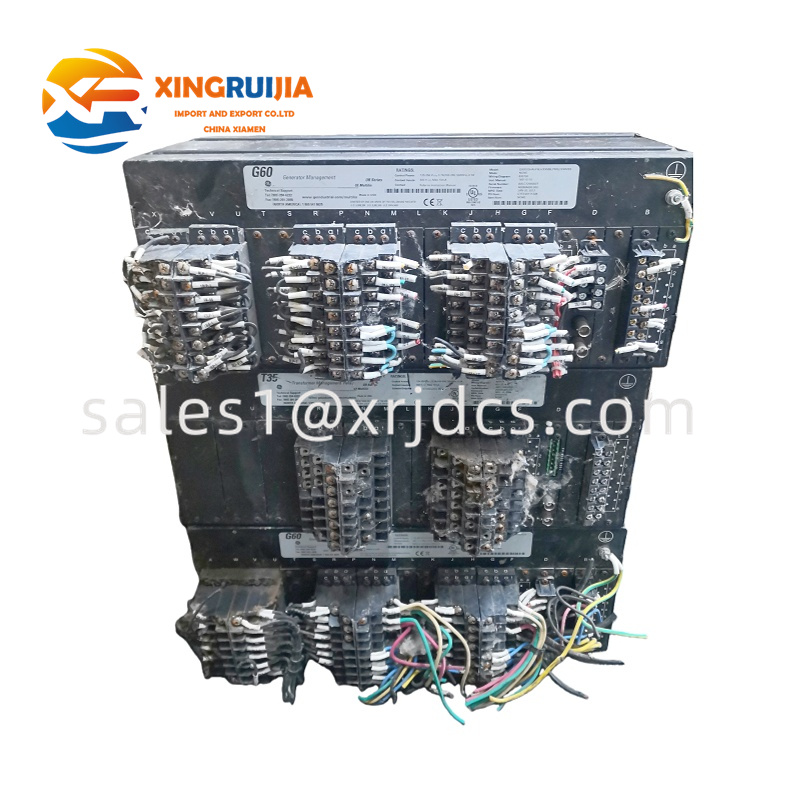

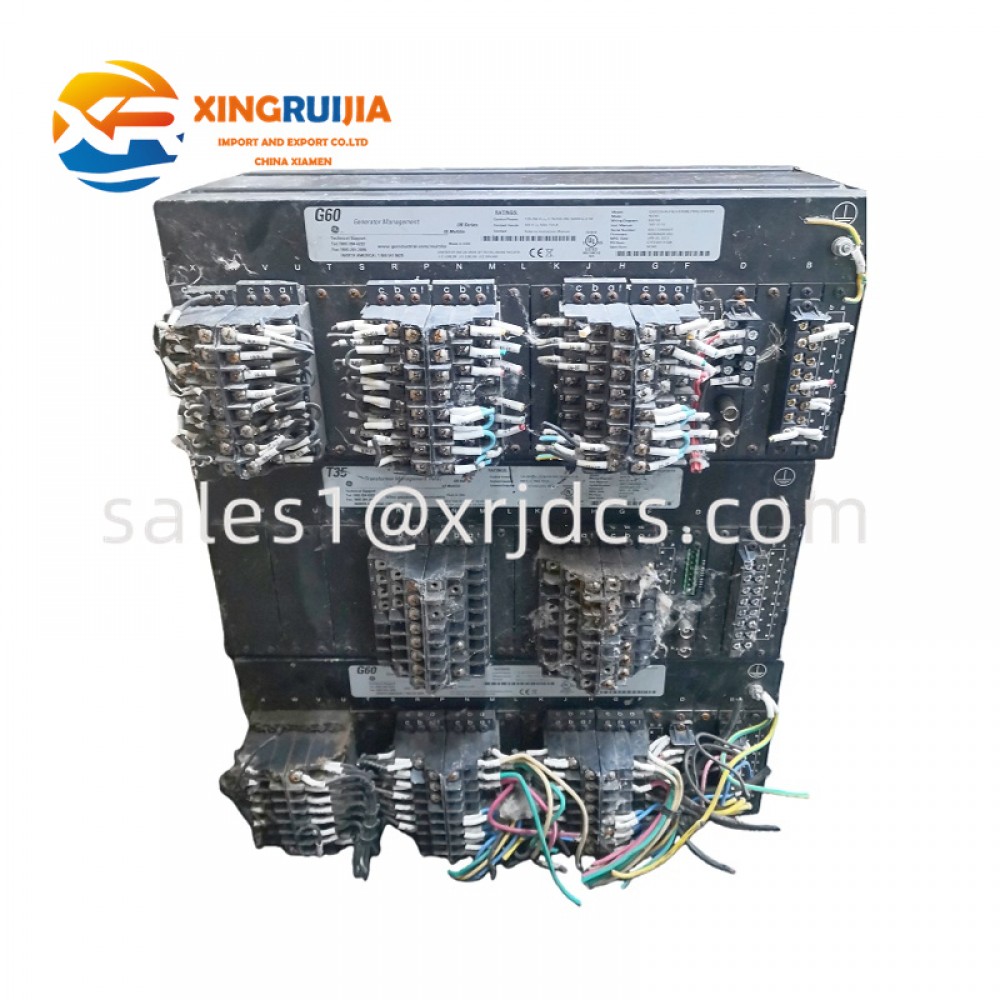

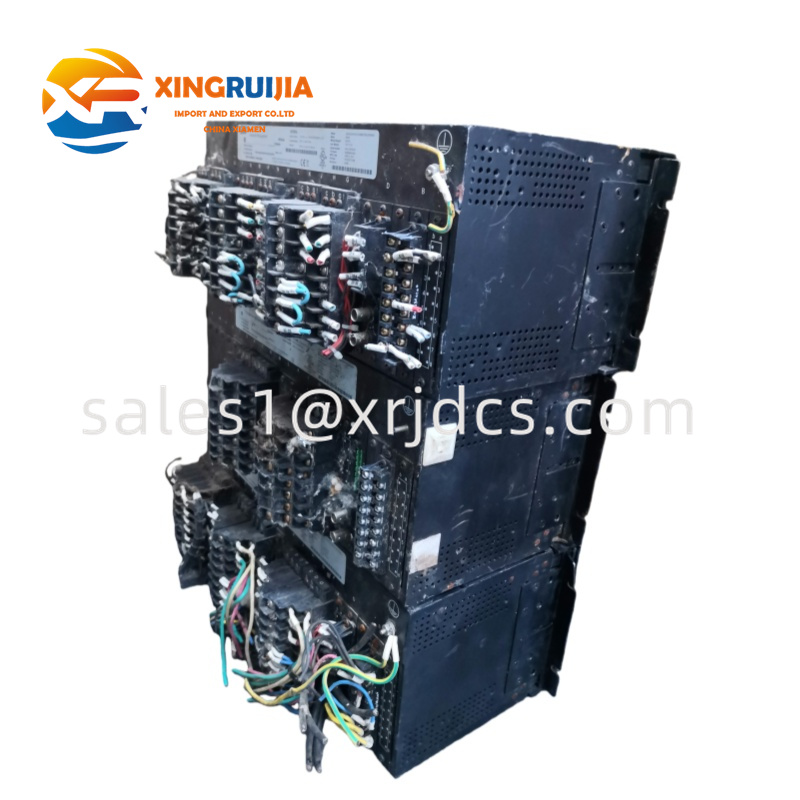

GE T35E00HAHF8FH6AM8HP6EUXXWXX – Transformer Protection & Control Relay

Introduction

The GE T35E00HAHF8FH6AM8HP6EUXXWXX is a specialized model within GE’s Multilin T35 series, engineered to provide reliable, high-precision protection for power transformers in utility, industrial, and high-demand critical infrastructure environments. Featuring robust diagnostics, advanced communication options, and sophisticated protection algorithms, the T35 series ensures stable transformer performance and rapid fault isolation to minimize downtime and prevent equipment damage.

---

1. Application Relevance

This relay is widely adopted in environments that require continuous 24/7 transformer monitoring and high-speed fault handling:

• Medium & high-voltage transformer substations

• Industrial distribution transformers

• Utility transmission networks

• Renewable energy integration (wind/solar transformer banks)

• Mission-critical power infrastructure (data centers, airports, military facilities)

---

2. Structural Composition

The internal architecture of the T35 model consists of coordinated hardware subsystems:

• Analog Acquisition Module – High-accuracy sampling of current and voltage inputs

• Protection Logic Core – DSP-based engine running GE’s proprietary transformer algorithms

• Communication & Networking Layer – Multi-protocol connectivity for SCADA and substation automation

• Power Conditioning Section – Filtering and protection for auxiliary power input

• Industrial-Grade Enclosure – Electromagnetic shielding, vibration resistance, optimized heat dissipation




---

3. Technical Parameters

Specification	Details
Relay Series	GE Multilin T35 Transformer Protection
Key Protection Functions	Differential, overcurrent, over/undervoltage, thermal, restricted earth fault
Control Features	Trip logic, autoreclose interaction, interlocking
Sampling & Measurement	High-resolution analog conversion
Communication Options	IEC 61850, Modbus, DNP3, Ethernet, serial protocols
Event Recording	SOE logging, oscillography, fault record storage
Auxiliary Power	Wide-range AC/DC auxiliary input
Mounting Type	19-inch rack or panel mount
Environment	Industrial temperature range, EMC-hardened

---

4. Core Features

• Reliable transformer differential protection with fast, secure fault discrimination

• Thermal modeling to monitor hot-spot conditions and prevent overheating

• Event and waveform recording for comprehensive post-fault analysis

• Cyber-secure configuration and access improving automation network cybersecurity

• Flexible I/O mapping supporting complex protection and control schemes

• Redundant communication paths for enhanced system availability

• Self-diagnostic processing, ensuring real-time relay health monitoring

---

5. Installation Guidelines

• Install the relay in a well-ventilated panel or relay rack with appropriate grounding

• Use shielded CT/PT wiring to ensure accuracy and noise immunity

• Verify polarity alignment during CT/PT secondary connections

• Configure protection settings using GE-provided engineering software

• Conduct primary/secondary injection testing before energizing

• Validate trip circuits, lockout relays, and interlocking logic




---

6. Maintenance Practices

• Review SOE logs regularly to identify abnormal transformer behavior

• Keep communication firmware updated using GE-authorized utilities

• Inspect terminal tightness during routine maintenance cycles

• Monitor thermal conditions around the relay to avoid overheating

• Periodically check the health of network communication links

• Clean ventilation openings and ensure dust-free operation

---

7. Additional Notes

The GE T35E00HAHF8FH6AM8HP6EUXXWXX is optimized for transformer protection applications requiring uncompromising reliability, rich diagnostics, and modern communication capabilities. With its resilient hardware and sophisticated software design, it is a core component in advanced substation protection architectures.
