Reliable digital signal handling is a key requirement in modern electrical protection and control systems. The GE UR6UH is a digital I/O module designed for integration with GE Multilin Universal Relay systems. With a combination of digital inputs and relay outputs, the module provides a practical interface between the protection relay and external auxiliary equipment. This makes it useful for monitoring status signals, controlling auxiliary devices, and expanding the I/O capabilities of a compatible relay installation.

For substations, power generation facilities, industrial plants, and other critical electrical environments, dependable communication between field equipment and protection systems is essential. The UR6UH helps bridge this requirement by giving the relay additional digital signal capabilities without requiring a completely different control architecture.

What Is the GE UR6UH?

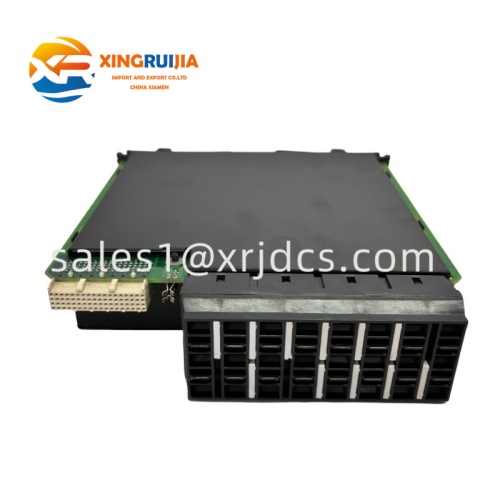

The GE UR6UH, also identified as UR-6UH, belongs to the GE Multilin Universal Relay module family. It is generally described as a digital input/output module intended for controlling and monitoring auxiliary equipment connected to a compatible Universal Relay. Available product information identifies the module with four digital inputs and six Type A, non-monitored outputs.

This configuration gives engineers several channels for receiving binary field signals and controlling external devices. For example, digital inputs can be used for status information, while relay outputs can be assigned to control or signaling functions according to the protection scheme.

Furthermore, the modular architecture of the UR platform makes this type of module convenient for system maintenance and configuration. Instead of redesigning the complete relay system, users can select the appropriate module configuration for their application.

Main Specifications at a Glance

The following information summarizes commonly published characteristics of the GE UR6UH. Exact operating values and compatibility should always be checked against the documentation for the specific relay configuration before installation.

Published supplier specifications also describe serial communication capability and a modular 6U format. Because different online sources provide inconsistent details for certain electrical specifications, users should verify the exact module revision and relay configuration before making a final technical decision.

Designed for Practical Digital Signal Management

One of the main advantages of the UR6UH is its ability to simplify digital signal management within a protection system.

In an electrical installation, the relay may need to receive information from circuit breakers, switches, auxiliary contacts, alarms, or other binary devices. At the same time, it may need to send commands to external equipment. The UR6UH provides additional digital I/O resources for these tasks.

The four digital inputs can be assigned to appropriate status or control signals. Meanwhile, the six Type A outputs can be used for configured relay operations, including control and indication functions. This makes the module useful in applications where several auxiliary signals must be handled by one protection platform.

Because the module works within the Universal Relay architecture, engineers can configure its functions according to the requirements of the overall protection and control scheme.

Configuration and Integration

Another important consideration is configuration. The UR6UH can be configured through the relay's local keypad and LCD interface or by using EnerVista UR software, depending on the installed system and configuration method.

This flexibility can be valuable during commissioning and maintenance. Engineers can configure the relay locally when working directly at the equipment, while software-based configuration can make larger engineering tasks more convenient.

In addition, the modular approach allows the UR6UH to become part of a broader protection system containing other functional modules. Therefore, its value is not limited to the individual I/O channels. Instead, it contributes to the overall flexibility of a GE Multilin Universal Relay installation.

Where Can GE UR6UH Be Used?

The UR6UH can be applied in a variety of power-system and industrial control environments.

Substation Protection

Substations rely heavily on digital status and control signals. Circuit breaker positions, disconnect status, alarms, and trip-related signals all need to be communicated accurately. The UR6UH can provide additional I/O channels for these functions in compatible relay systems.

Power Generation

Generators and associated switchgear require continuous monitoring and reliable control. Digital I/O modules can help relay systems interact with auxiliary equipment and provide the necessary status information for protection and operational logic.

Industrial Power Distribution

Manufacturing plants and process facilities often have complex electrical distribution networks. In these environments, a protection relay may need to communicate with numerous auxiliary devices. The UR6UH can expand the available digital I/O resources and support a more organized control architecture.

Retrofit Projects

The module is also relevant to maintenance and retrofit applications. Many industrial facilities continue to operate established GE Multilin relay systems for years. When a digital I/O module becomes unavailable or reaches the end of its service life, sourcing a suitable replacement can be more economical than replacing an entire protection system.

Maintenance Benefits of a Modular Design

Industrial customers generally want to minimize downtime. A failure in a protection or control system can interrupt production, affect equipment availability, and increase maintenance costs.

The modular construction of the Universal Relay platform is therefore particularly useful. Published information describes the UR6UH as a plug-and-play style module that can be replaced within the relay architecture, simplifying certain upgrade and maintenance procedures.

However, replacement should not be treated as a simple part-number swap. Before installing a UR6UH, maintenance personnel should verify the relay model, hardware configuration, firmware requirements, wiring, power supply, and configured I/O logic.

It is equally important to document existing settings before removing a module. After installation, engineers should verify every input and output point and confirm that the relay's protection and control logic operates as intended.

Why Digital I/O Matters in Protection Systems

Digital signals are fundamental to electrical protection. Unlike continuously varying analog measurements, digital signals generally represent discrete states such as open/closed, energized/de-energized, or healthy/faulted.

This makes digital I/O particularly useful for equipment status monitoring and control commands. For instance, a relay can use a digital input to determine whether a circuit breaker is open or closed. It can then use an assigned output to initiate a control or signaling action when specific protection conditions occur.

Consequently, a properly configured digital I/O module can improve the connection between relay logic and field equipment. The UR6UH is designed around this role within the GE Multilin Universal Relay ecosystem.

Why Source GE UR6UH from Our Company?

Finding the correct industrial automation spare part is often more complicated than simply searching for a model number. Customers also need to consider availability, product condition, delivery time, compatibility, and overall purchasing cost.

Our company specializes in supplying industrial automation and electrical control components, including GE Multilin modules and other automation spare parts. We can provide the GE UR6UH for replacement, maintenance, retrofit, and spare inventory requirements.

When customers contact us, our team can assist with model confirmation and supply information before an order is finalized. This is especially helpful when an existing system has been operating for many years and the original equipment documentation is incomplete.

We also understand that urgent maintenance projects require efficient logistics. Therefore, our company focuses on competitive pricing, reliable sourcing, responsive service, and international delivery support.

A Cost-Effective Option for Existing GE Relay Systems

Replacing an entire protection system is not always necessary when one module requires attention. If the existing Universal Relay platform continues to meet the application's requirements, sourcing the correct replacement module can help reduce both downtime and project costs.

The GE UR6UH is particularly relevant in this situation because it provides digital I/O functionality within the established Multilin Universal Relay architecture. Its combination of digital inputs, relay outputs, configurable logic, and modular installation makes it a practical component for a wide range of protection and control applications.

For maintenance teams, keeping a spare UR6UH available can also shorten recovery time when an unexpected module failure occurs. Planned spare-parts management is especially valuable in substations, generating facilities, and industrial plants where electrical protection equipment is critical to continuous operation.

Final Takeaway

The GE UR6UH Digital I/O Module provides a useful expansion interface for compatible GE Multilin Universal Relay systems. With four digital inputs and six Type A non-monitored outputs, it can support auxiliary equipment monitoring, control functions, status indication, and other digital signal requirements.

Its modular architecture and configuration options make it suitable for both new engineering projects and existing-system maintenance. More importantly, it can help customers extend the useful life of established GE protection systems without unnecessarily replacing the entire relay platform.

If you are looking for a GE UR6UH at a competitive price, our company can assist with sourcing and supply. Contact us to confirm availability, product condition, compatibility, and delivery options for your project or maintenance requirement.
