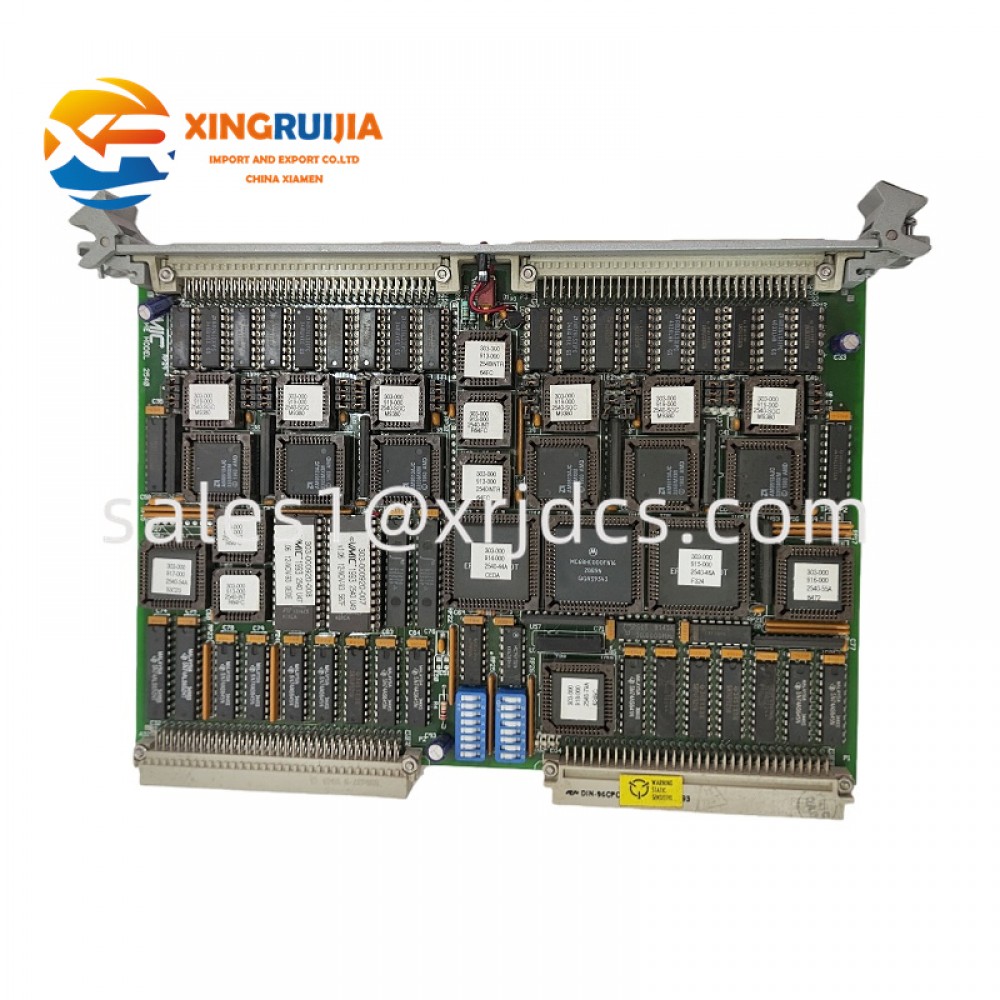

GE VMIVME 2540-300

General Description

The GE VMIVME 2540-300 is a high-precision VMEbus analog input module designed for industrial measurement, monitoring, and control systems. Developed for use in VME-based architectures, this module enables accurate acquisition of analog signals from field devices and sensors, making it a dependable choice for real-time data collection in mission-critical environments.

Its design emphasizes signal accuracy, system stability, and long-term reliability, especially in applications requiring continuous operation and precise analog processing.

---

Primary Functions and Capabilities

• High-accuracy analog signal acquisition

• Stable performance in electrically noisy environments

• Designed for deterministic real-time systems

• Compatible with standard VMEbus architectures

• Ideal for both control and data monitoring applications




---

Electrical and Mechanical Parameters

The VMIVME 2540-300 operates within standard VMEbus voltage levels and interfaces directly with the VME backplane for both power and data communication. It supports multiple analog input channels, allowing simultaneous measurement of several signal sources. The module is built on an industrial-grade PCB and fits securely into a VME chassis slot, ensuring mechanical stability and consistent electrical contact.

It is engineered to function reliably across a wide industrial temperature range and under conditions involving vibration and electromagnetic interference.

---

Structural Design and Composition

This module features a full-size VME form factor with reinforced edge connectors and clearly defined input interfaces. Internally, precision analog circuitry is carefully laid out to minimize signal distortion and cross-talk. The design also supports effective heat dissipation, helping maintain accuracy and component longevity during continuous operation.

Labeling and connector placement are optimized to simplify system integration and maintenance.

---

Typical Application Areas

The GE VMIVME 2540-300 is commonly deployed in environments where accurate analog measurements are critical, including:

• Industrial process control systems

• Power generation and energy monitoring

• Test and measurement platforms

• Transportation and infrastructure control

• Aerospace and defense-related VME systems




---

Installation Guidelines

Installation involves inserting the module into a compatible VME chassis slot and securing it according to system requirements. Proper grounding and shielding practices are recommended to ensure optimal signal integrity. Once installed, the module integrates seamlessly with the system controller and software environment.

---

Maintenance and Operational Reliability

Under normal operating conditions, the VMIVME 2540-300 requires minimal maintenance. Routine inspections should focus on connector cleanliness, secure seating in the chassis, and environmental conditions such as airflow and temperature. The robust construction supports long service life and consistent performance in continuous-duty applications.

---

Additional Value

• Supports legacy and modern VME-based systems

• High signal integrity for demanding measurement tasks

• Proven GE / VMIC engineering for industrial reliability

• Suitable for system upgrades and long-term projects

module belonging to the IS200 series under GE Automation & Control. It is specifically designed for the DCS (Distributed Control System) of gas turbines, power plants, and other large-scale industrial processes. Adopting a VME-bus architecture, the module can be directly inserted into a VME-frame, providing high-speed and reliable discrete signal acquisition and control functions.

————————————————————————————————————————————————————————————————————————
