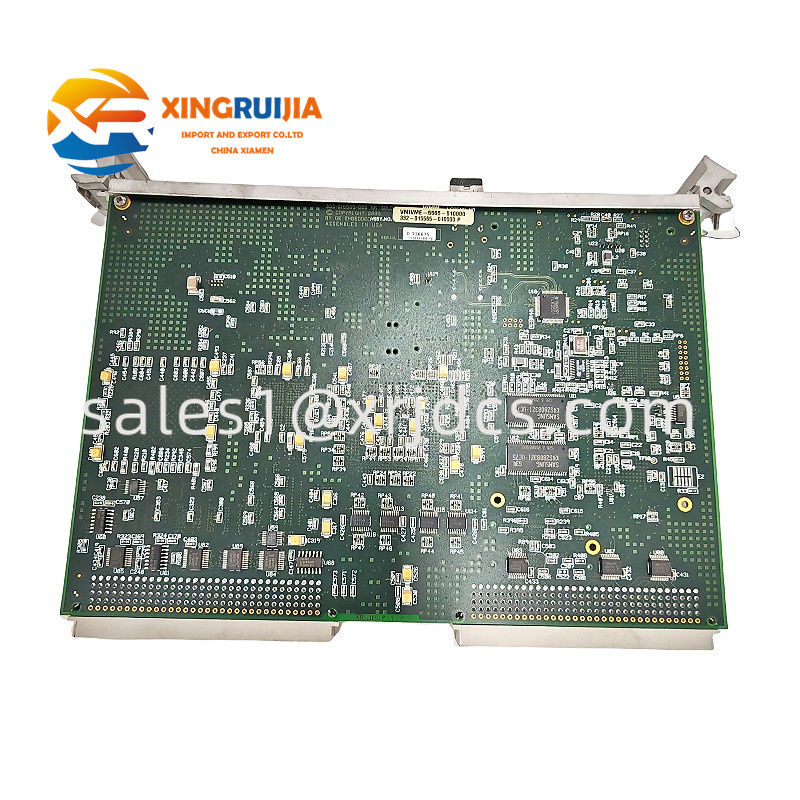

GE VMIVME-5565-010000

The GE VMIVME-5565-010000 is a high-performance embedded processing module based on the VMEbus (Versa Module Europa). It is specifically designed for fields such as industrial automation, military, and aerospace, supporting real-time data sharing and high-reliability processing. Its core function is to achieve low-latency and high-bandwidth data synchronization between multiple nodes through Reflective Memory technology, making it suitable for distributed systems that require rapid response and high reliability.

Parameters

• Model and Part Number
  • Model: VMIVME-5565-010000
  • Part Number: 332-015565-010000P
• Communication Method
  • Fiber optic interface (multimode/single-mode), supporting transmission distances from 300 meters (multimode) to 10 kilometers (single-mode).
• Data Transmission Rate
  • Up to 2.1 Gbps, with a typical value of 170 Mbyte/s (dynamic data packet size: 4-64 bytes).
• Number of Nodes
  • Supports up to 256 nodes, and supports ring or star topology.
• Storage Capacity
  • On-board SDRAM: 64 MB or 128 MB (optional for specific models).
• Operating Environment
  • Operating temperature: -20°C to 85°C (some models extend to -40°C to 85°C).
  • Relative humidity: 20% to 80% (non-condensing).
• Power Requirements
  • 5V DC, power consumption is approximately 5W.

Product Features

• High Bandwidth and Low Latency
  • Data transmission rate up to 2.1 Gbps, with typical latency less than 500 nanoseconds, suitable for real-time control and data acquisition.
• Modular Design
  • Standard VMEbus architecture, compatible with PMC (Plug Mezzanine Card) format, facilitating integration into existing systems.
• High Reliability
  • Built-in ECC error correction function, supporting redundant data storage to ensure data integrity.
• Flexible Scalability
  • Supports dynamic configuration of data packet size (4-64 bytes) to adapt to different application scenarios.
• Industrial-grade Protection
  • Resistant to high temperature, vibration, and electromagnetic interference, meeting IP30 protection level.

• Physical Form
  • Standard VMEbus module, with a size of 6U Eurocard standard, supporting plug-in installation.
• Core Components
  • Reflective memory module: achieves multi-node data synchronization through fiber optic network without additional software protocols.
  • SDRAM storage: 64 MB or 128 MB high-speed cache for temporary data storage.
• Interface Types
  • Supports interfaces such as VME64x, PCIe, Ethernet, and serial ports, compatible with multiple operating systems (such as Windows, Linux).

Application Fields

• Industrial Automation
  • Distributed Control Systems (DCS), production line data synchronization, real-time monitoring.
• Power Systems
  • Real-time data acquisition and control in power plants and substations.
• Aerospace and Military
  • Aircraft sensor data sharing, military radar systems.
• Medical Equipment
  • Large-scale real-time data transmission between multiple devices.
• Testing and Simulation
  • Low-latency data synchronization in high-performance computing simulations.

Installation and Maintenance

• Installation Requirements
  • Ensure the module is compatible with the VME backplane, and the fiber optic connection has no physical damage.
• Maintenance Recommendations
  • Regular inspection: Verify fiber optic connections and module status to avoid signal attenuation.
  • Firmware upgrade: Regularly update the firmware to optimize performance and fix potential issues.
  • Spare parts management: It is recommended to reserve key module spare parts to reduce downtime.
  • Environmental monitoring: Ensure the operating environment meets temperature and humidity requirements and avoid electromagnetic interference.

————————————————————————————————————————————————————————————————————————
