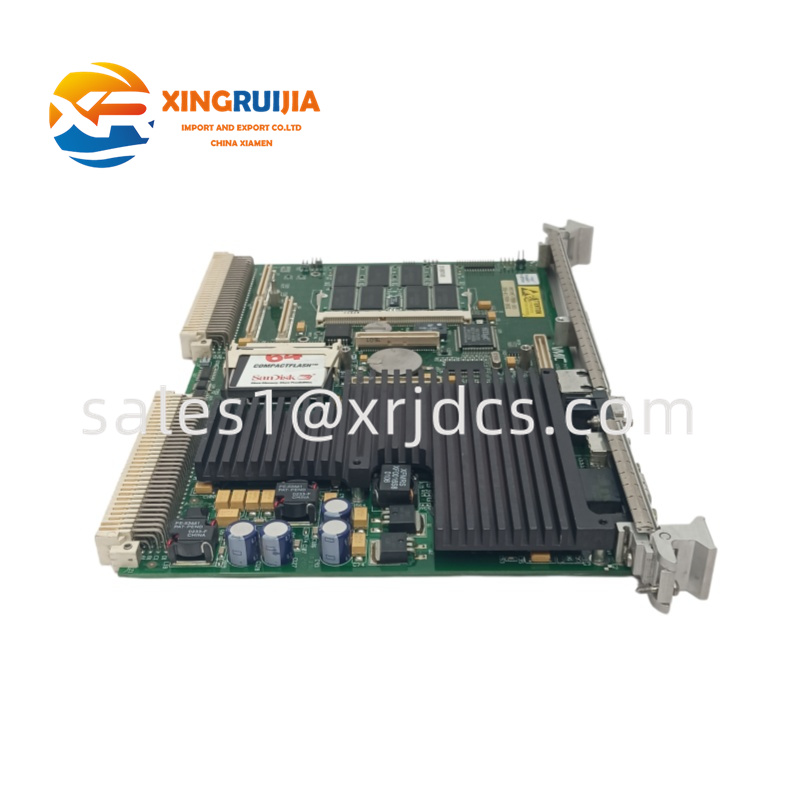

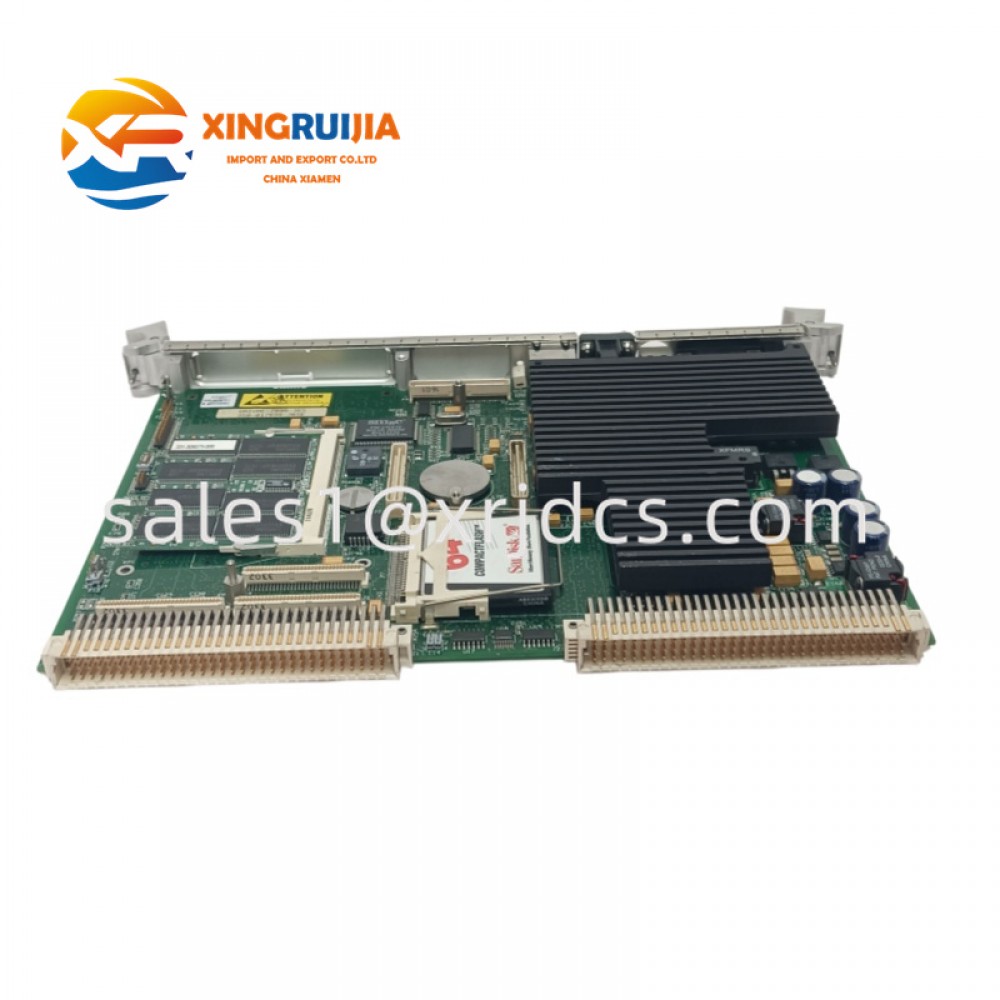

GE VMIVME-7698

The GE VMIVME-7698 is a high-performance VMEbus interface module designed for industrial automation, data acquisition, and control system applications. This module provides reliable communication between VMEbus-based systems and peripheral devices, enabling real-time monitoring, precise control, and efficient data transfer. Its robust design ensures long-term operation in demanding industrial environments.

---

Technical Specifications

Parameter	Details
Model Number	VMIVME-7698
Manufacturer	General Electric (GE)
Product Type	VMEbus Interface Module
Bus Type	VME64/VME64x Compatible
Function	System interface and data communication
Communication Protocol	VMEbus standard protocols
Input/Output	High-speed digital and analog I/O
Mounting Type	Rack-mounted or card cage installation
Operating Temperature	0°C to 70°C
Storage Temperature	–40°C to 85°C
Humidity	5%–95% non-condensing
Power Supply	Standard VMEbus power rails
Dimensions	Standard 6U or 9U VME module form factor

---

Features and Capabilities

• High-speed data transfer across VMEbus systems

• Supports multiple VMEbus standards for broad compatibility

• Modular design allows integration with existing control systems

• Reliable signal integrity for industrial data acquisition

• Integrated diagnostic and monitoring features

• Robust protection against electrical interference and voltage spikes

• Suitable for continuous operation in industrial automation and power control environments

---

Structure and Components

The VMIVME-7698 module is engineered with precision and durability in mind. Key components include:

• High-density multilayer PCB for signal integrity

• Industrial-grade connectors for secure VMEbus communication

• Voltage regulation and protection circuitry

• Digital and analog interface processing chips

• Protective conformal coating for dust and moisture resistance

The modular architecture ensures maintainability and allows easy replacement of critical components.

---

Applications

The VMIVME-7698 module is suitable for a variety of industrial and automation applications:

• Power plant control systems

• Industrial automation and process control

• Data acquisition for critical monitoring systems

• Turbine control and monitoring

• SCADA and distributed control systems

• Test and measurement systems for high-reliability industrial environments

Its versatility makes it ideal for both legacy VMEbus systems and modern industrial networks.

---

Installation and Maintenance

Installation Guidelines:

1. Ensure all system power is off before insertion.

2. Insert the module into a compatible VMEbus slot or card cage.

3. Verify that connectors are properly seated and secured.

4. Ground the module to prevent electrical noise and interference.

5. Perform diagnostic checks to confirm proper system communication.

Maintenance Recommendations:

• Inspect connectors and mounting points periodically

• Keep the module clean and free from dust or moisture

• Monitor signal integrity and system diagnostics regularly

• Replace the module if any interface failures or performance issues occur

---

Operational Advantages

• High-speed and reliable VMEbus communication

• Long-term industrial-grade reliability

• Seamless integration into existing VME-based systems

• Flexible configuration and modular expansion

• Enhanced monitoring and diagnostic capabilities

---

Conclusion

The GE VMIVME-7698 VMEbus Interface Module is a robust and versatile solution for industrial automation, control, and data acquisition applications. Its modular design, high-speed communication capabilities, and durable construction make it a critical component for reliable and efficient system integration in demanding industrial environments.
