GE VMIVME-7807RC

Product Overview

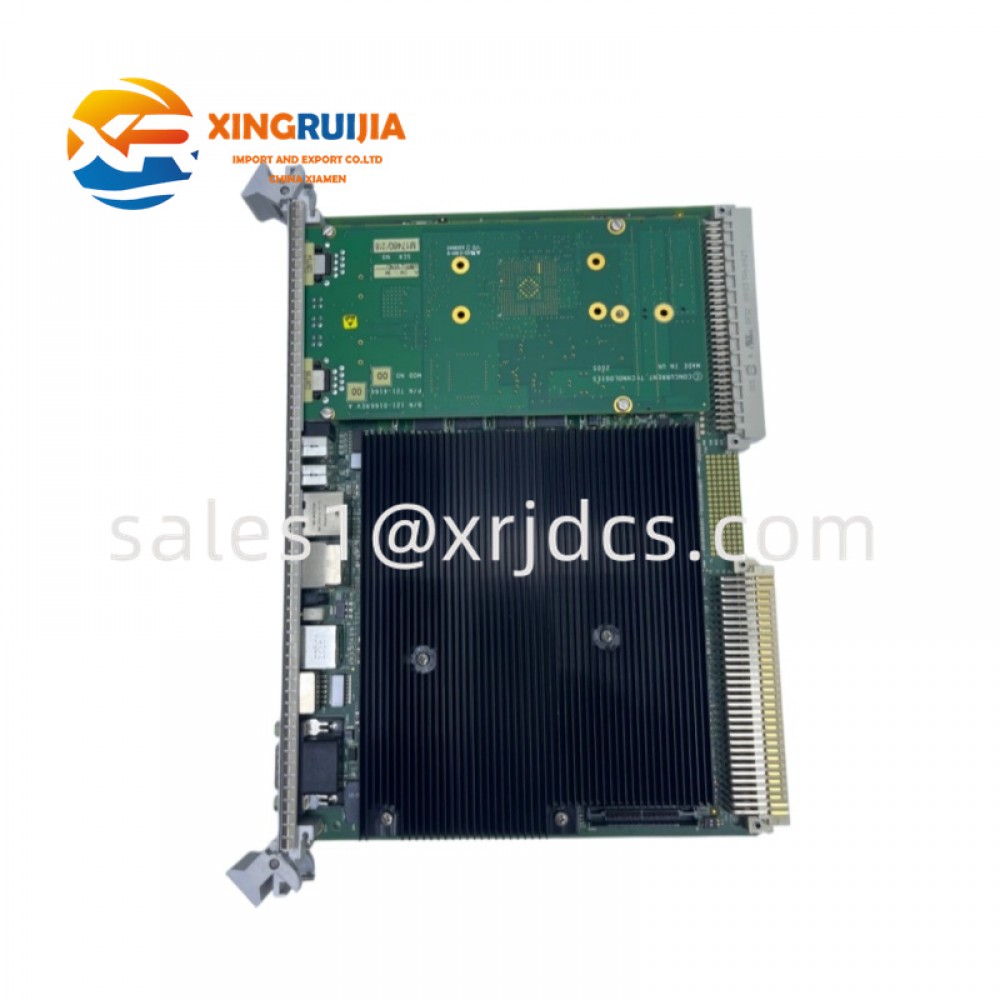

The GE VMIVME-7807RC is a high-performance VMEbus Single Board Computer (SBC) designed for industrial embedded computing, real-time control, and data acquisition applications. Developed by GE Fanuc Embedded Systems, this 6U VME board combines powerful processing capability, extensive I/O interfaces, and reliable industrial design to provide a stable computing platform for demanding automation environments.

Based on the Intel Pentium M processor architecture and Intel 855GME chipset technology, the VMIVME-7807RC provides advanced computing performance while maintaining low power consumption and excellent thermal characteristics. Its VME64 bus interface allows seamless integration with existing VME-based industrial systems, making it an ideal solution for long-life automation, testing, simulation, and control applications.

Technical Specifications

Parameter	Description
Product Model	GE VMIVME-7807RC
Product Type	VMEbus Single Board Computer
Processor	Intel Pentium M Processor
Processor Speed	Up to 1.8 GHz
Chipset	Intel 855GME
Memory Capacity	Up to 1.5 GB DDR SDRAM
Bus Interface	VME64 / VMEbus
Form Factor	6U VME Eurocard, Single Slot
Ethernet Interface	Dual Gigabit Ethernet and 10/100 Mbps Ethernet
Serial Ports	Four 16550-compatible serial ports
USB Interface	Four USB ports
Expansion Capability	PMC expansion slot
Operating System Support	Windows, Linux, VxWorks and other embedded operating systems
Cooling Method	Passive cooling design

Main Features

Powerful Embedded Processing Capability

The VMIVME-7807RC integrates an Intel Pentium M processor platform, providing sufficient computing power for industrial applications requiring real-time data processing, system control, and complex software execution. The optimized processor architecture delivers efficient performance with reduced heat generation, supporting continuous operation in industrial environments.

Advanced VMEbus Communication

Equipped with a VME64-compatible interface, this SBC provides high-speed communication between the CPU board and other VME modules. The VME architecture allows users to build flexible and scalable control systems by combining processor boards, data acquisition modules, motion control cards, and industrial I/O modules.

Flexible Network and Expansion Interfaces

The board includes multiple communication interfaces, including Gigabit Ethernet, serial communication ports, USB interfaces, and PMC expansion capability. These features enable easy connection with industrial networks, external devices, storage systems, and specialized expansion modules.

Hardware Structure and Composition

The GE VMIVME-7807RC consists of several key hardware sections:

• CPU Processing Unit:
  The processor module provides the main computing function and executes control applications, monitoring software, and embedded operating systems.
• Memory System:
  The board supports DDR SDRAM memory configurations for application execution, data buffering, and real-time processing tasks. Optional memory expansion allows users to customize system performance according to application requirements.
• VMEbus Interface Module:
  The integrated VME controller enables communication with other VME devices through the backplane, supporting industrial modular system architectures.
• Communication Interfaces:
  Multiple Ethernet, USB, and serial interfaces provide convenient system integration with sensors, controllers, monitoring equipment, and external computers.
• PMC Expansion Interface:
  The onboard PMC slot allows additional functional modules to be installed for customized applications such as communication, data acquisition, and signal processing.

Application Fields

The GE VMIVME-7807RC is widely used in industries and systems requiring reliable embedded computing platforms, including:

• Industrial automation and process control systems
• Power generation and energy management equipment
• Semiconductor manufacturing systems
• Railway and transportation control systems
• Military and aerospace embedded applications
• Data acquisition and test systems
• Simulation and measurement platforms
• Machine automation and monitoring systems

Due to its long lifecycle support and VME compatibility, the VMIVME-7807RC is especially suitable for upgrading or maintaining existing industrial systems where traditional VME architectures remain in service.

Installation and Maintenance

When installing the GE VMIVME-7807RC, users should ensure that the VME backplane, power supply, and connected modules meet system compatibility requirements. The board should be securely inserted into the VME chassis slot, with proper attention to connector alignment and grounding conditions.

Recommended maintenance practices include:

• Regular inspection of VME connectors and backplane contacts
• Keeping the cooling path clean to maintain stable operating temperature
• Checking memory modules and storage devices periodically
• Verifying communication interfaces during system diagnostics
• Maintaining backup copies of system software and configuration data

Proper maintenance can significantly improve system reliability and extend the service life of the embedded computer platform.

System Advantages

The GE VMIVME-7807RC offers several advantages for industrial users:

• High-performance embedded computing based on Intel Pentium M technology
• Reliable VMEbus architecture for industrial applications
• Rich communication interfaces for flexible integration
• Modular design for easy expansion and replacement
• Suitable for long-term operation in automation systems
• Compatible with various embedded operating systems

Product Supply Support

As an industrial automation spare parts supplier, we provide GE VMIVME-7807RC modules with professional technical support and supply solutions for customers requiring replacement parts, system maintenance, and industrial equipment upgrades. The module is suitable for applications where reliable VME computing performance and long-term availability are required.

————————————————————————————————————————————————————————————————————————
