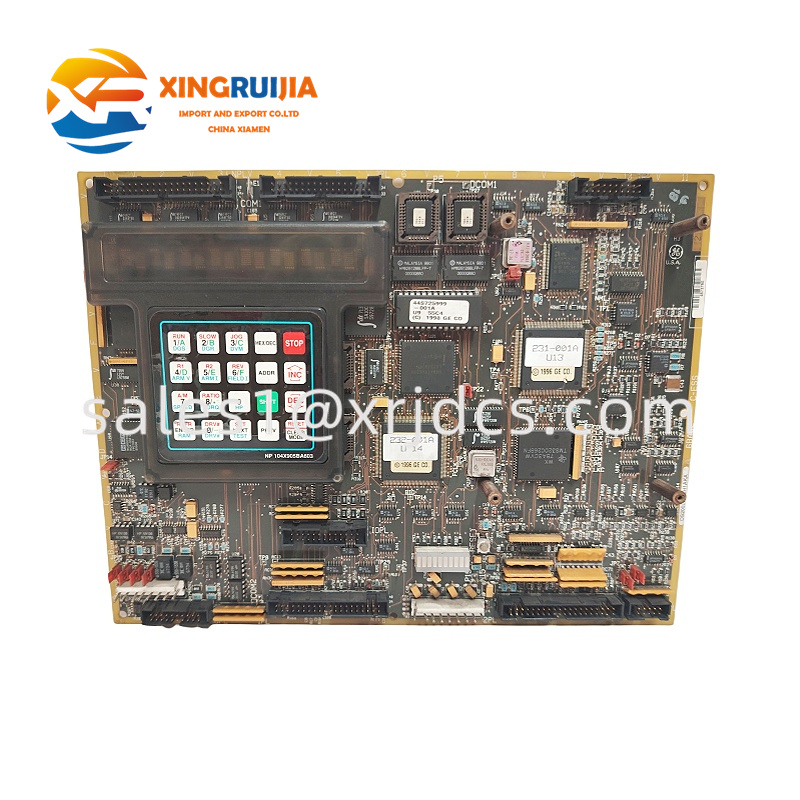

GE DS200LDCCH1AKA

I. Overview

The GE DS200LDCCH1AKA is one of the core components of the General Electric (GE) Mark V control system, specifically designed for industrial automation and process control. It finds extensive application in fields such as power generation, petrochemicals, and metallurgy. As a drive control and Local Area Network (LAN) communication board, this module integrates multiple functions, supporting logical control, signal processing, and equipment communication in complex systems. Its design is based on GE's patented Speedtronic control system technology, inheriting the high performance and reliability of the Mark V series.

II. Parameters

• Input Voltage: 24V DC (some models support 20-30V DC)
• Output Current: 5A (some models support 10A)
• Communication Interfaces: Ethernet, RS-485, Modbus, ProfiNet, EtherNet/IP, etc.
• Operating Temperature: -20°C to 70°C (some models support -40°C to 85°C)
• Protection Class: IP20 (some models IP65)
• Dimensions: Approximately 33.262 cm (length) × 1.1kg (weight)
• Control Protocols: Supports PID control, logical control, and sequential control

III. Product Features

Multifunctional Integration

• Integrates drive control, LAN communication, motor processing, and operator interface functions to simplify system design.
• Supports multiple programming languages such as ladder logic, function block diagrams, and structured text.

High Reliability

• Adopts industrial-grade components and modular design, complying with the IEC61000 anti-interference standard.
• Has a wide operating temperature range, adapting to harsh industrial environments.

Flexible Configuration

• Supports multi-protocol communication (such as Modbus, ProfiNet) and is compatible with other GE drive devices.
• Built-in four microprocessors (LCP, DCP, MCP, CMP) for collaborative processing of I/O and drive control.

Real-Time Performance

• Response time is less than 10ms, meeting high-speed control requirements.

IV. Structure and Composition

Core Components:

• Microprocessors: Including LAN Control Processor (LCP), Drive Control Processor (DCP), Motor Control Processor (MCP), and Co-motor Processor (CMP).
• Interface Modules: Provide digital input/output (16 channels), analog input/output (8/4 channels), CAN bus, etc.
• Communication Ports: Support industrial communication protocols such as Ethernet and RS-485.

Physical Characteristics:

• PCB board design, with dimensions adapted to standard racks, and a conformal coating to enhance corrosion resistance.
• Functional revision 1A/2K, artwork revision A.

V. Application Fields

Power Generation Industry

• Controls the start, stop, and status monitoring of power generation equipment such as steam turbines and gas turbines.
• Applied in automation systems of thermal power plants, hydropower plants, and nuclear power plants.

Industrial Automation

• Used for high-precision process control in industries such as petrochemicals, pharmaceuticals, and metallurgy.
• Controls drive systems of large industrial equipment (such as compressors and pumps).

Energy Management

• Applied in equipment communication and data collection in scenarios such as wind power generation and smart grids.

VI. Installation and Maintenance

Installation Requirements

• Compatibility: Must seamlessly integrate with the GE Mark V system and other modules, and ensure operation with power off.
• Environmental Conditions: Avoid high temperature, high humidity, and strong electromagnetic interference environments; strictly comply with the operating temperature range.
• Steps: Install in a standard rack, and connect to the system through dedicated jumpers and connectors.

Maintenance Measures

• Regular Inspection: Verify power connections, communication interfaces, and physical status.
• Fault Diagnosis: Locate problems through system alarms or indicator lights, and replace modules if necessary.
• Safety Specifications: Must power off before operation to prevent electric shock or equipment damage.

————————————————————————————————————————————————————————————————————————
