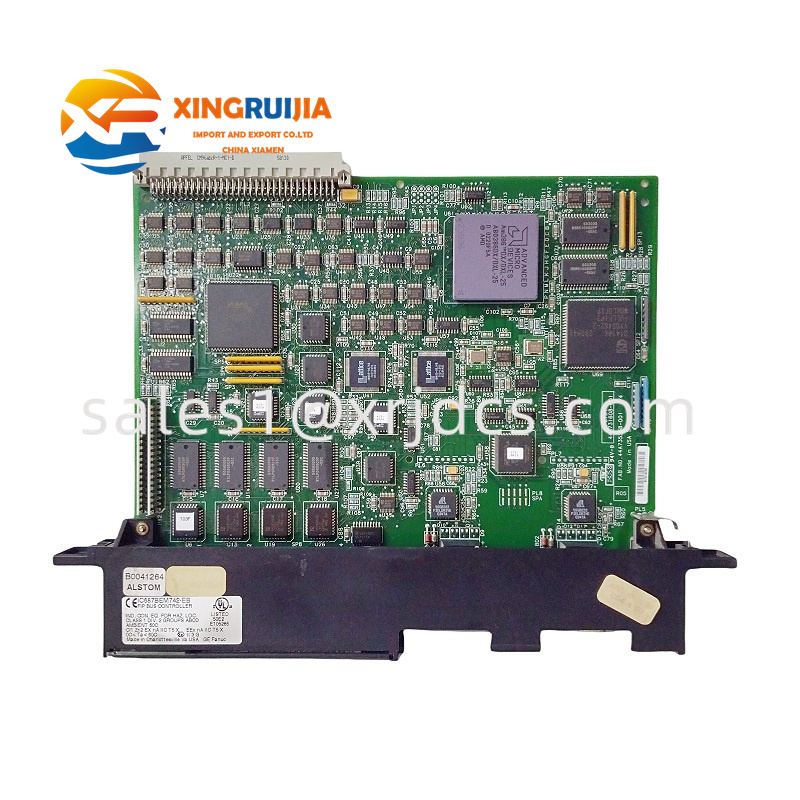

GE IC687BEM742

The GE IC687BEM742 is a Genius Network Bus Controller Module under the General Electric (GE) Series 90-70 PLC family. Specifically designed for industrial automation control systems, it enables high-speed data exchange between PLCs, distributed I/O stations, drive equipment, and other intelligent devices. Serving as the communication hub of the Genius Bus, this module supports real-time control and large-scale I/O expansion, making it suitable for distributed control applications in industries such as manufacturing, power, and water treatment.

Core Values of IC687BEM742

• High-Speed Data Exchange: Supports 1 Mbps Genius Bus communication to ensure real-time control response.
• Large-Scale I/O Expansion: A single network can connect up to 32 devices and support 1024 I/O points.
• High Reliability: Features redundant bus support to prevent system downtime caused by single-point failures.

Product Specifications

• Product Model: IC687BEM742
• Manufacturer: General Electric (GE)
• Product Type: Genius Network Bus Controller Module
• Compatible System: GE Series 90-70 PLC
• Communication Protocol: Genius Bus Protocol
• Communication Rate: 153.6 kbps to 1 Mbps (configurable)
• Maximum Number of Nodes: 32 (including controllers and I/O devices)
• I/O Support Capacity: Up to 1024 digital points or 512 analog points
• Operating Temperature Range: 0°C to +60°C (32°F to +140°F)
• Protection Class: IP20 (must be installed in a control cabinet)
• Installation Method: Insert into Series 90-70 rack
• Power Requirement: 5V DC (powered by the rack backplane)
• Power Consumption: ≤5W
• Certification Standards: UL 508, CSA, CE

Structure and Composition

• Genius Bus Controller Chip: Processes the Genius Bus protocol, and manages data exchange and error detection.
• Dual-Port Memory: Enables high-speed data buffering between the PLC CPU and the Genius Bus.
• Status Indicators: LED lights display power supply, communication status, network activity, and fault alarms.
• Bus Interface: A 9-pin D-Sub connector for connecting Genius Bus cables.
• Backplane Interface: Connects to the Series 90-70 rack backplane to realize data interaction with the PLC CPU.
• Metal Enclosure: Provides EMI shielding and mechanical protection.

Key Features and Advantages

1. High-Speed Real-Time Communication
   • 1 Mbps communication rate ensures I/O data update cycle ≤10ms.
   • Deterministic data transmission eliminates delay uncertainty of networks like Ethernet.
2. Large-Scale Distributed I/O Support
   • A single network supports 32 devices, including I/O blocks, drives, and intelligent sensors.
   • Hot-swap function (when allowed by the system) enables maintenance without shutdown.
3. High Reliability and Redundancy
   • Redundant bus configuration: automatically switches to the backup bus if one bus fails.
   • Built-in diagnostic function for real-time detection of network node status and communication errors.
4. Seamless System Integration
   • Natively compatible with Series 90-70 PLC (e.g., IC697CPM790) without additional configuration.
   • Easy network parameter configuration via Genius Network Controller for Windows software.

Application Fields

• Manufacturing: Distributed I/O control for automobile production lines, such as welding robots and conveyors.
• Power Industry: Substation automation systems for remote I/O data collection.
• Water Treatment: Distributed control of pump stations to monitor pump status and valve positions.

Typical Application Case

————————————————————————————————————————————————————————————————————————
