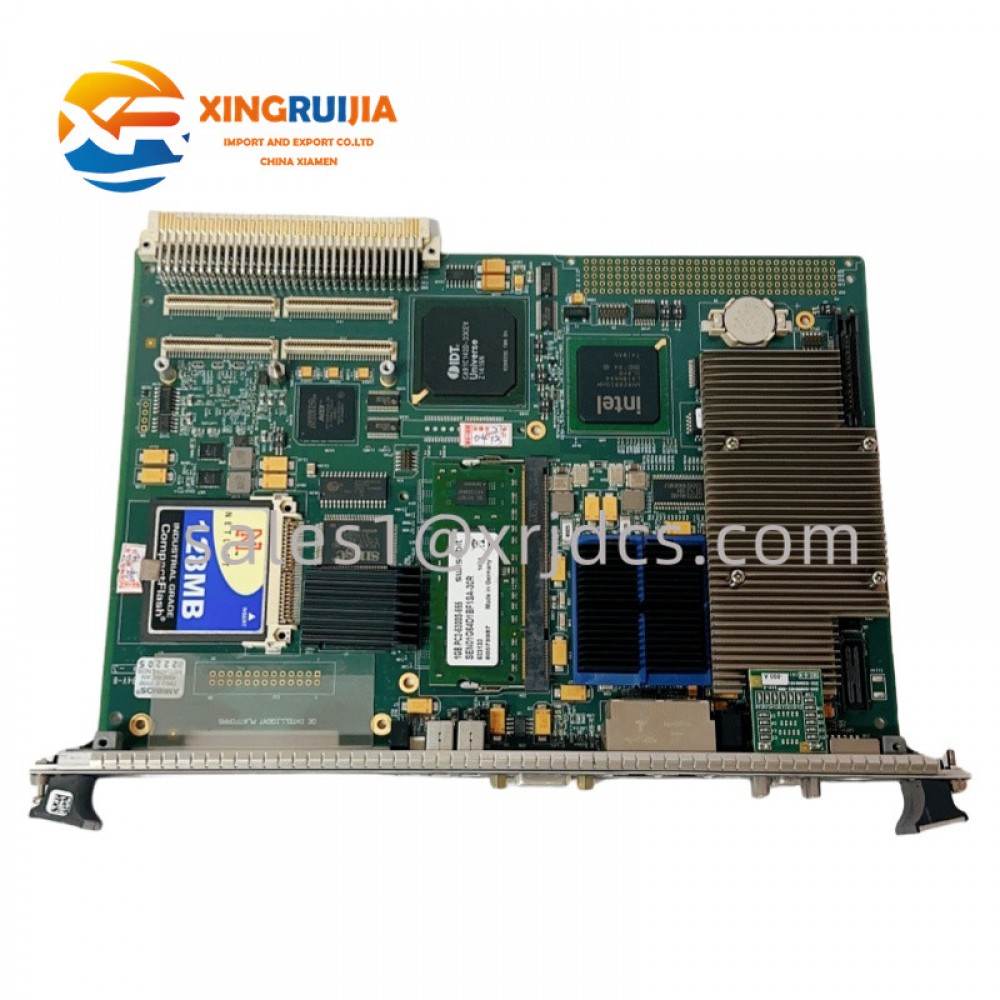

GE IS415UCVHH1A Single Board Computer Overview

The GE IS415UCVHH1A is a high-performance Single Board Computer (SBC) and part of the Mark VIe series Distributed Control System (VME). Designed primarily for gas turbine vibration monitoring and control, this module ensures safe and stable operation by analyzing real-time vibration signals. It also supports data acquisition, control logic execution, fault diagnosis, and serves as a core component in industrial automation systems.

Technical Specifications

Parameter	Details
Input Voltage	24V DC, 12V DC, 5V DC, 15V DC, or 220V AC (optional)
Input Signal Range	0-5V, 1-5V, 0-10mA, 10-20mA, 20-40mA, 4-20mA, 0-10V, ±10V
Output Signal	Customizable to user-specific requirements
Operating Temp.	-40°C to 85°C
Dimensions	120mm × 80mm × 40mm
Processor	Intel EP80579 @ 1066 MHz
Memory	128MB DDR2 RAM
Interfaces	2× USB, 2× Ethernet, 2× COM (with LED indicators), VGA display port

Key Features

• High Performance: Equipped with a powerful processor and QNX real-time OS for rapid response.

• Industrial Reliability: Robust design for harsh environments with extended operational lifespan.

• Expandability: Supports I/O extensions (DIO, AO/DO, communication modules) for diverse applications.

• Ease of Maintenance: Modular design for quick installation and redundancy support to minimize downtime.

• Real-Time Monitoring: Dedicated vibration analysis for equipment safety.

• Chinese UI: Simplified programming and maintenance with full Chinese interface.

Structure & Components

• Hardware: CPU, memory, RAM slots, flash storage, heatsink, CMOS battery.

• Interfaces: USB, Ethernet, COM, VGA with multi-protocol support.

• Modularity: Compact design for DIN rail/wall mounting, compatible with legacy systems.

Applications

• Gas Turbine Control: Vibration monitoring and safety assurance.

• Industrial Automation: Machinery, production lines, and process control.

• Process Industries: Power plants, chemical facilities for logic execution and data processing.

————————————————————————————————————————————————————————————————————————

Why Choose Xingruijia? Core Services & Advantages

System Integration
Our skilled engineering team delivers tailored automation solutions, expertly integrating systems to meet your unique needs.

Technical Services
From debugging and diagnostics to maintenance, our professional support ensures your production line runs smoothly and efficiently.

Fast Response
With a streamlined logistics network, we provide rapid spare parts delivery to minimize downtime and keep your operations running.

Competitive Pricing
By partnering directly with OEMs and optimizing our supply chain, we offer high-quality solutions at the best market prices.

Contact Us Today – Fast Shipping from Stock!

·Manager: Jinny                                         ·E-mail:sales5@xrjdcs.com

·Tel: + 86-18250705533 （WhatsApp）   ·Wechat: + 86-18250705533

————————————————————————————————————————————————————————————————————————

 Installation & Maintenance

• Mounting: DIN rail (35mm) or wall-mounted for retrofitting.

• Training: Certified personnel recommended for operations.

• Software: ControlST for programming, diagnostics, and optimization.

• Redundancy: Configurable as single, dual, or triple redundant systems.

---

FAQs

Q: What is redundancy?
A: Redundancy uses backup components to ensure continuous operation if a primary module fails. The IS415UCVHH1A supports single/dual/triple redundancy.

Q: Where is the IS415UCVHH1A typically used?
A: Key applications include gas turbine control, industrial automation, and process monitoring.

Q: How to install/configure this module?
A: Follow DIN rail/wall-mount guidelines and use ControlST software for setup and diagnostics.
