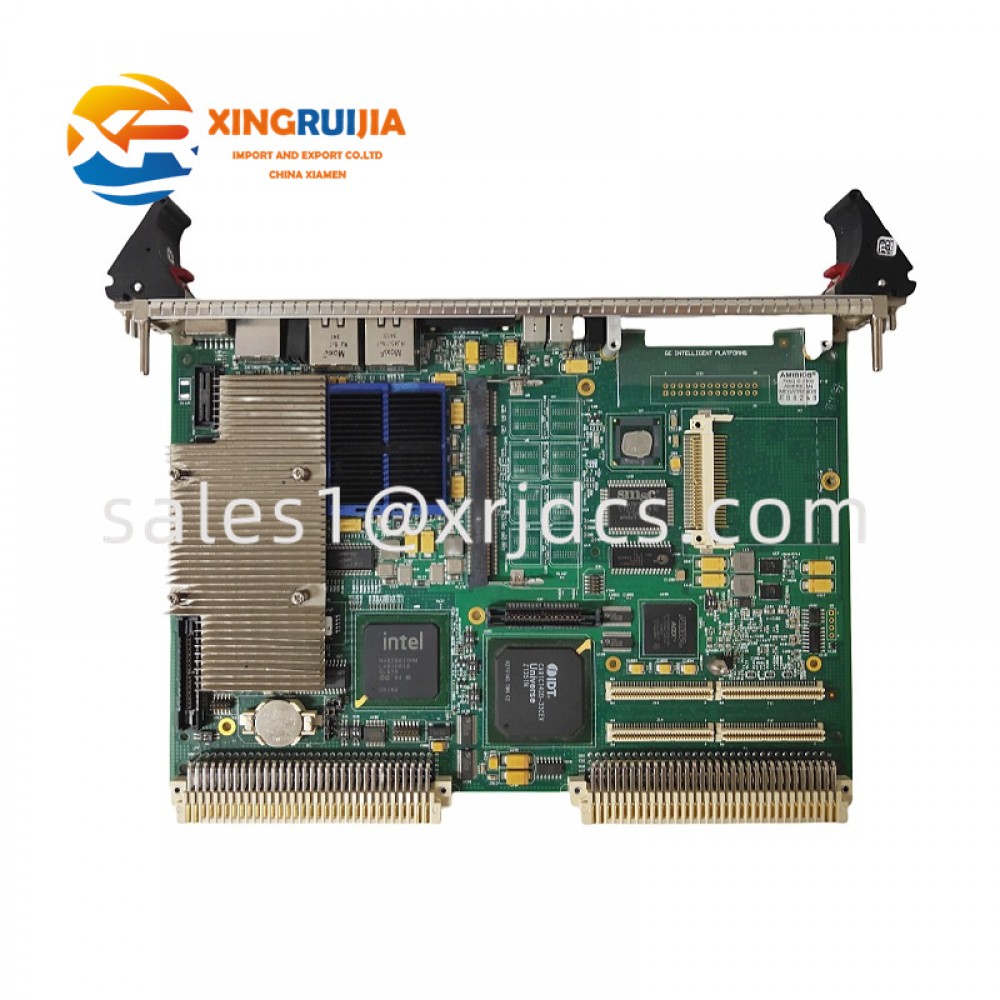

GE V7768-322001

1. Overview

The GE V7768-322001 is a VME bus-based Single-Board Computer (SBC), which belongs to GE’s industrial control product series. It is specifically designed for fields such as industrial automation, data acquisition, and signal processing. As a high-performance VME bus module, it integrates advanced processor technology, rich I/O interfaces, and powerful data processing capabilities, making it suitable for harsh industrial environments.

2. Parameters

2.1 Key Parameters

• Processor: Intel Core 2 Duo (up to 2.16 GHz)
• Memory: 2 GB DDR2 SDRAM, supporting expansion to 8 GB CompactFlash
• Interfaces: Ethernet, VME, USB, serial ports, PCI-X, PMC expansion slots, etc.
• Operating Systems: Supports VxWorks, Linux, Windows XP Embedded, and more
• Power Supply & Environment: Operating temperature ranges from 0°C to 55°C; storage temperature ranges from -40°C to 85°C; supports wide voltage input (120-240V AC)

3. Product Features

• High Performance & Reliability: Adopts high-performance processors and a modular design, featuring strong anti-interference capabilities, high reliability, and expandability.
• Industrial-Grade Design: Suitable for harsh industrial environments, supporting real-time control and complex data processing.
• Expandability: Supports multiple expansion interfaces (such as PCI-X, PMC) and is compatible with a variety of operating systems.

4. Structure & Composition

• Physical Structure: Complies with standard VME module dimensions, adopts a VME bus interface, and supports installation in VME chassis slots.
• Core Components: Includes a processor, memory, I/O interfaces (such as Gigabit Ethernet, serial ports, USB), and expansion slots.
• Protection Design: Equipped with dust-proof, water-proof, and anti-vibration designs to adapt to industrial environments.

5. Application Fields

• Industrial Automation: Used in factory automation, robot control, CNC machine tools, etc.
• Power & Energy: Applied in power system monitoring, oil well control, and power transmission systems.
• Transportation: Utilized in railway, aviation, and highway transportation system control.
• Other Fields: 国防 (national defense), medical care, data acquisition systems, etc.

6. Installation & Maintenance

• Installation: Must follow the VME chassis slot installation specifications to ensure correct physical and electrical connections.
• Maintenance: Conduct regular cleaning and inspection of connector status; operators need to receive training to avoid misoperation.
• Safety & Documentation: Comply with safety regulations and read technical documents and safety guidelines.

————————————————————————————————————————————————————————————————————————
