The GE IC695CPE400-ABAB is a high-performance backplane-less central processing unit (CPU) in the GE PACSystems RX3i series, designed specifically for industrial automation.

Ship to you via Fedex/DHL/TNT/UPS/EMS  丨 Package: Original packing with cartons  丨 Shipping Port: Xiamen

·Manager: Jinny

·E-mail:sales1@xrjdcs.com

·Tel: + 86-15359273791 （WhatsApp）

·Wechat: + 86-15359273791

Product Description

GE IC695CPE400-ABAB

The GE IC695CPE400-ABAB is a high-performance backplane-less central processing unit (CPU) in the GE PACSystems RX3i series, designed specifically for industrial automation. Its core function is to meet the requirements of modern industrial control systems for high reliability, real-time performance, and scalability through powerful computing capabilities and flexible communication interfaces. This module features a compact design, eliminating the need for a traditional backplane, and can be directly mounted on a DIN rail, significantly saving control cabinet space. It also supports modular expansion and redundant configurations, making it suitable for complex control scenarios.

Structure and Composition

  • Backplane-less Design: Can be directly installed on a DIN rail without the need for an additional backplane, simplifying system layout and reducing potential failure points.
  • Interface Configuration:
    • Front Panel: 2 USB 3.0 ports, 2 LAN ports (for local access and communication).

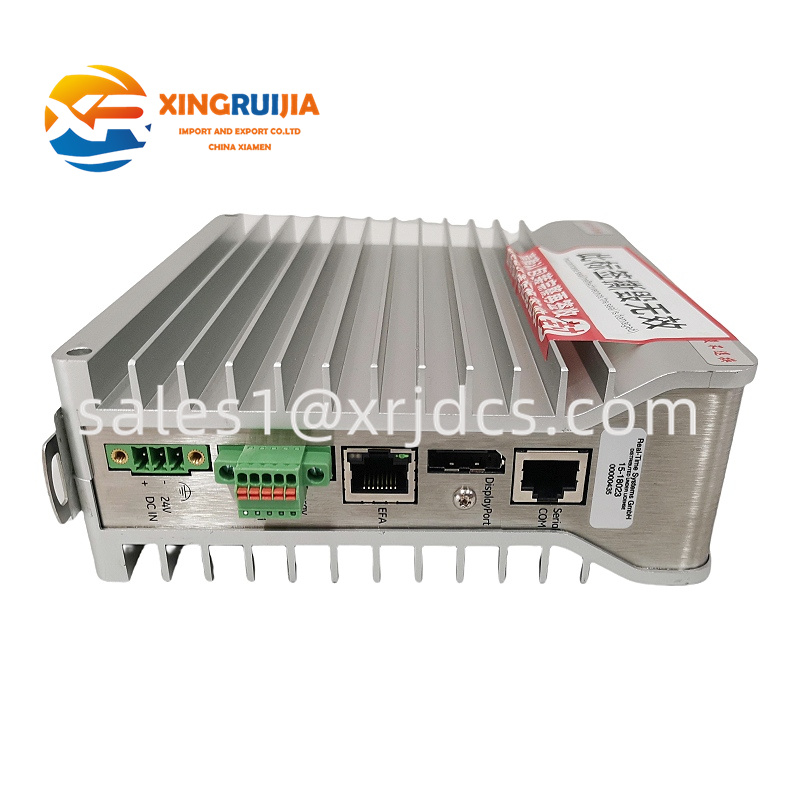

    • Rear Panel: 1 RJ45 serial port, 1 video output port, 1 IICS cloud port (for IIoT remote monitoring).
  • Physical Characteristics: Supports DIN rail mounting or panel adapter mounting, with an IP20 protection rating and vibration resistance compliant with the IEC 60068-2-6 standard.

  • Processor: 1.2 GHz AMD G-series quad-core microprocessor, providing high-speed execution capabilities to support complex control algorithms and data-intensive applications.
  • Memory: 64 MB RAM and 64 MB non-volatile flash memory (PACSystems version), supporting 768 program blocks, each with a maximum size of 128 KB.
  • Communication Module: 5 LAN ports (3 RJ45 front panel + 2 embedded switches), supporting 10/100/1000 Mbps Ethernet speeds and compatible with protocols such as PROFINET, Modbus TCP, and OPC-UA.

Parameters

  • Processor: 1.2 GHz AMD G-series quad-core microprocessor
  • Memory: 64 MB RAM, 64 MB flash memory (PACSystems); 2 GB RAM, 50 GB SSD (PACEdge)
  • Communication Interfaces: 5 LAN ports (3 RJ45 front panel + 2 embedded switches), 2 USB 3.0, 1 serial port, 1 video output, 1 IICS cloud port
  • Ethernet Speed: 10/100/1000 Mbps
  • Operating Voltage: 18-30 VDC (nominal 24 VDC)
  • Power Consumption: Maximum 20 watts
  • Temperature Range: Operating temperature: -40°C to 70°C; Storage temperature: -40°C to 85°C
  • Operating System: VxWorks (PACSystems), Linux (PACEdge)

IC695CPE400-ABAB

Product Features

The quad-core processor with a 1.2 GHz frequency ensures fast response and high throughput, suitable for high-speed data acquisition and precision motion control. It supports multi-task parallel processing to optimize the execution efficiency of complex control logic.

Flexible Communication and IIoT Support

The embedded IICS cloud port and PACEdge technology (Linux system) enable remote monitoring, OTA firmware updates, and edge computing, aligning with industrial internet trends. It supports protocols such as PROFINET (8ms fast I/O update), Modbus TCP, and OPC-UA to ensure seamless integration with existing systems.

Security and Reliability

Built-in Trusted Platform Module (TPM), secure boot, and encrypted firmware updates defend against network attacks and unauthorized access. It supports redundant control platforms with a switching time as low as 300 milliseconds, ensuring continuous production.

User-friendliness

An integrated OLED display shows real-time status, fault information, and IP address, simplifying operations. Six user-accessible buttons and panel adapter options enhance installation flexibility.

Application Fields

In scenarios such as automobile manufacturing, mechanical processing, and electronic assembly lines, it controls robots, conveyors, and modular equipment to achieve high-precision synchronization.

Water Treatment

In urban water supply and sewage treatment plants, it manages pump stations, valves, and chemical dosing systems, and realizes intelligent management in combination with remote monitoring.

Energy and Power

In traditional and renewable energy power plants and power grid management, it controls generators, transformers, and substation automation systems.

Oil and Gas

In drilling platforms, refineries, and pipeline transportation systems, it handles complex production processes and safety interlock systems.

Chemical Industry

It enables precise control of equipment such as reactors and distillation towers, supporting batch management and product quality optimization.

Infrastructure

In transportation systems (subways, tunnels), building automation, and urban facilities, it realizes traffic signal control and environmental monitoring.

Installation and Maintenance

  • Safety Specifications: Power must be disconnected before installation, and the "Lockout/Tagout" (LOTO) procedure must be followed to prevent accidental energization.
  • Anti-static Measures: Operators must wear anti-static wristbands and gloves to avoid electrostatic damage to electronic components.
  • Environmental Requirements: The installation environment must be clean, dry, and away from vibration sources and strong electromagnetic interference.

Maintenance Suggestions

  • Regular Cleaning: Remove dust from the module surface and inside the cabinet to prevent overheating due to poor heat dissipation.
  • Connection Inspection: Regularly check the tightness of Ethernet, USB, and serial port connections to prevent poor contact caused by vibration or corrosion.
  • System Monitoring: Use tools such as GE Proficy Machine Edition to monitor CPU load, memory usage, and network status, and detect abnormalities in a timely manner.

————————————————————————————————————————————————————————————————————————
